BSPT male Swivel BSPP fittings
Types of BSPP thread 60 degree cone fittings: with or without o-ring, male or swviel female connector.
Standard of BSPP fittings catalogue is based on ISO 8434-6 and BS 5200.
The threads for the 60 degree cone connections are BSPP conforming to ISO 228-1.
Metallic tube connections for hydraulic fluid power and general use.
Jiayuan also can offer stainless steel BSP fittings, brass bsp pipe fittings, bsp hose fittings etc.

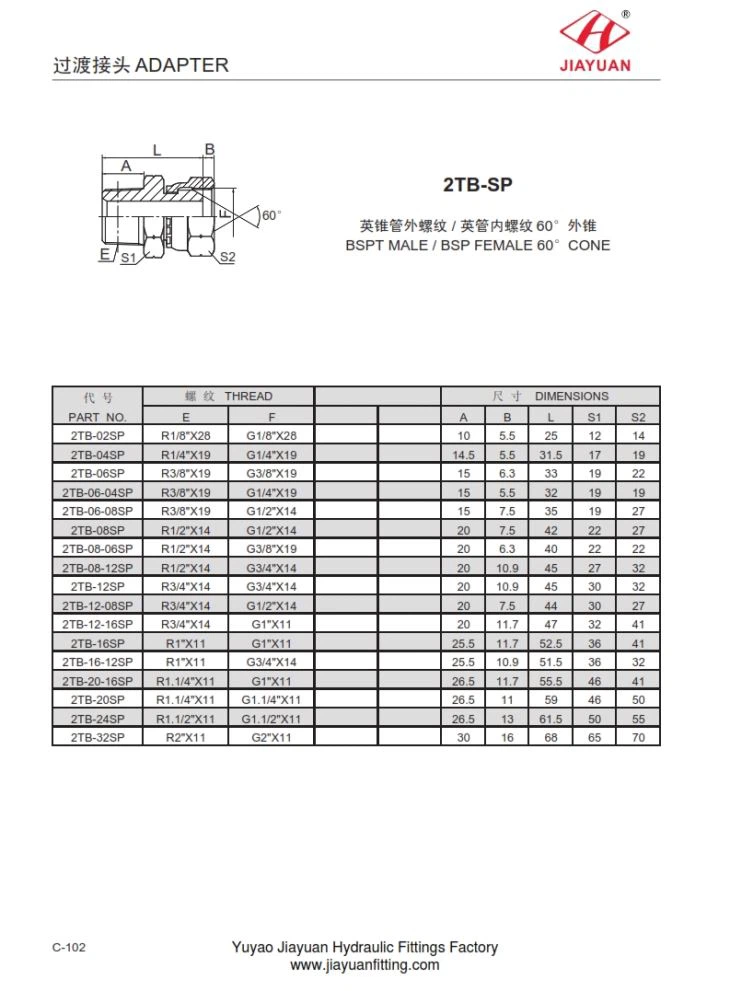

2TB-SP BSPT MALE / BSP FEMALE 60°CONE fitting connector dimensions as follows:
PART NO. | THREAD | DIMENSIONS | |||||
E | F | A | B | L | S1 | S2 | |
2TB-02SP | R1/8"X28 | G1/8"X28 | 10 | 5.5 | 25 | 12 | 14 |
2TB-04SP | R1/4"X19 | G1/4"X19 | 14.5 | 5.5 | 31.5 | 17 | 19 |
2TB-06SP | R3/8"X19 | G3/8"X19 | 15 | 6.3 | 33 | 19 | 22 |
2TB-06-04SP | R3/8"X19 | G1/4"X19 | 15 | 5.5 | 32 | 19 | 19 |
2TB-06-08SP | R3/8"X19 | G1/2"X14 | 15 | 7.5 | 35 | 19 | 27 |
2TB-08SP | R1/2"X14 | G1/2"X14 | 20 | 7.5 | 42 | 22 | 27 |
2TB-08-06SP | R1/2"X14 | G3/8"X19 | 20 | 6.3 | 40 | 22 | 22 |
2TB-08-12SP | R1/2"X14 | G3/4"X14 | 20 | 10.9 | 45 | 27 | 32 |
2TB-12SP | R3/4"X14 | G3/4"X14 | 20 | 10.9 | 45 | 30 | 32 |
2TB-12-08SP | R3/4"X14 | G1/2"X14 | 20 | 7.5 | 44 | 30 | 27 |
2TB-12-16SP | R3/4"X14 | G1"X11 | 20 | 11.7 | 47 | 32 | 41 |
2TB-16SP | R1"X11 | G1"X11 | 25.5 | 11.7 | 52.5 | 36 | 41 |
2TB-16-12SP | R1"X11 | G3/4"X14 | 25.5 | 10.9 | 51.5 | 36 | 32 |
2TB-20-16SP | R1.1/4"X11 | G1"X11 | 26.5 | 11.7 | 55.5 | 46 | 41 |
2TB-20SP | R1.1/4"X11 | G1.1/4"X11 | 26.5 | 11 | 59 | 46 | 50 |
2TB-24SP | R1.1/2"X11 | G1.1/2"X11 | 26.5 | 13 | 61.5 | 50 | 55 |
2TB-32SP | R2"X11 | G2"X11 | 30 | 16 | 68 | 65 | 70 |
