Product category: SAE 37 deg flare fittings adapters
Material: carbon steel, stainless steel or copper alloy

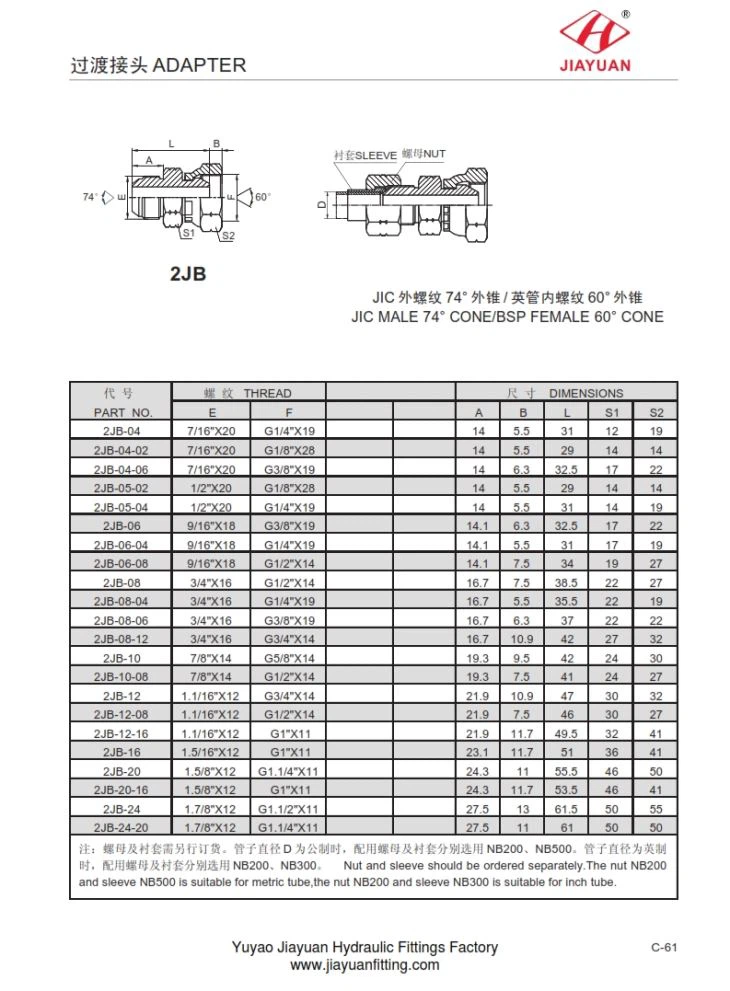

2JB JIC MALE 74°CONE/BSP FEMALE 60°CONE Dimension chart as follows:
PART NO. | THREAD | DIMENSIONS | |||||
E | F | A | B | L | S1 | S2 | |
2JB-04 | 7/16"X20 | G1/4"X19 | 14 | 5.5 | 31 | 12 | 19 |
2JB-04-02 | 7/16"X20 | G1/8"X28 | 14 | 5.5 | 29 | 14 | 14 |
2JB-04-06 | 7/16"X20 | G3/8"X19 | 14 | 6.3 | 32.5 | 17 | 22 |
2JB-05-02 | 1/2"X20 | G1/8"X28 | 14 | 5.5 | 29 | 14 | 14 |
2JB-05-04 | 1/2"X20 | G1/4"X19 | 14 | 5.5 | 31 | 14 | 19 |
2JB-06 | 9/16"X18 | G3/8"X19 | 14.1 | 6.3 | 32.5 | 17 | 22 |
2JB-06-04 | 9/16"X18 | G1/4"X19 | 14.1 | 5.5 | 31 | 17 | 19 |
2JB-06-08 | 9/16"X18 | G1/2"X14 | 14.1 | 7.5 | 34 | 19 | 27 |
2JB-08 | 3/4"X16 | G1/2"X14 | 16.7 | 7.5 | 38.5 | 22 | 27 |
2JB-08-04 | 3/4"X16 | G1/4"X19 | 16.7 | 5.5 | 35.5 | 22 | 19 |
2JB-08-06 | 3/4"X16 | G3/8"X19 | 16.7 | 6.3 | 37 | 22 | 22 |
2JB-08-12 | 3/4"X16 | G3/4"X14 | 16.7 | 10.9 | 42 | 27 | 32 |
2JB-10 | 7/8"X14 | G5/8"X14 | 19.3 | 9.5 | 42 | 24 | 30 |
2JB-10-08 | 7/8"X14 | G1/2"X14 | 19.3 | 7.5 | 41 | 24 | 27 |
2JB-12 | 1.1/16"X12 | G3/4"X14 | 21.9 | 10.9 | 47 | 30 | 32 |
2JB-12-08 | 1.1/16"X12 | G1/2"X14 | 21.9 | 7.5 | 46 | 30 | 27 |
2JB-12-16 | 1.1/16"X12 | G1"X11 | 21.9 | 11.7 | 49.5 | 32 | 41 |
2JB-16 | 1.5/16"X12 | G1"X11 | 23.1 | 11.7 | 51 | 36 | 41 |
2JB-20 | 1.5/8"X12 | G1.1/4"X11 | 24.3 | 11 | 55.5 | 46 | 50 |
2JB-20-16 | 1.5/8"X12 | G1"X11 | 24.3 | 11.7 | 53.5 | 46 | 41 |
2JB-24 | 1.7/8"X12 | G1.1/2"X11 | 27.5 | 13 | 61.5 | 50 | 55 |
2JB-24-20 | 1.7/8"X12 | G1.1/4"X11 | 27.5 | 11 | 61 | 50 | 50 |
