Product category: SAE 37 deg flare fittings adapters
Material: carbon steel, stainless steel or copper alloy

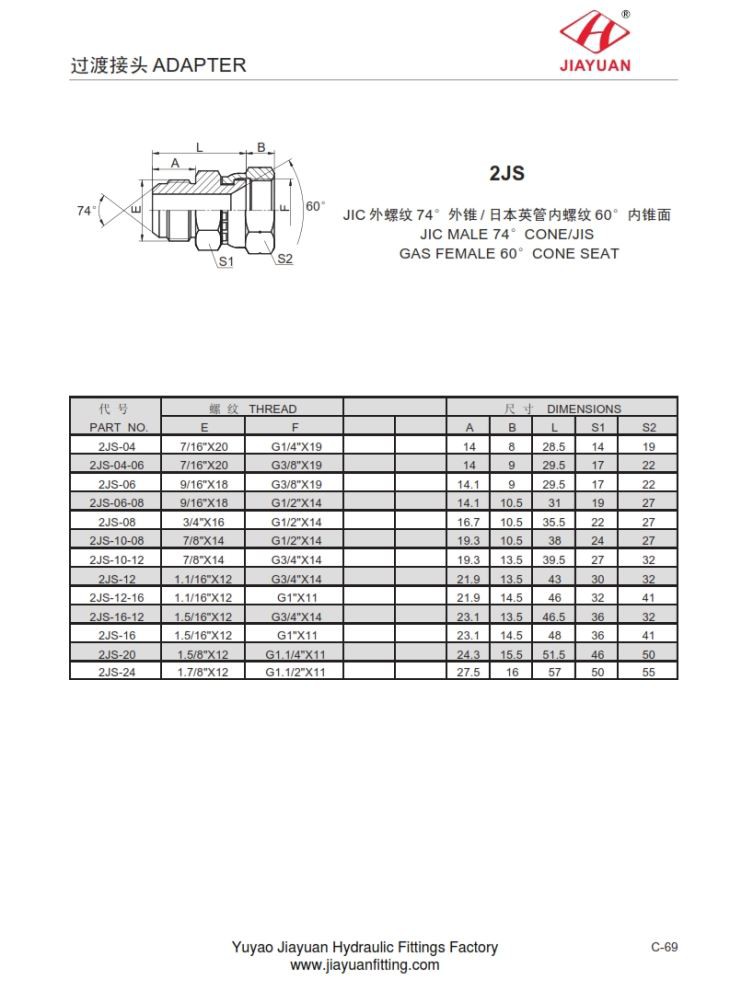

2JS JIC MALE 74°CONE/JIS GAS FEMALE 60°CONE SEAT Dimension chart as follows:
PART NO. | THREAD | DIMENSIONS | |||||
E | F | A | B | L | S1 | S2 | |
2JS-04 | 7/16"X20 | G1/4"X19 | 14 | 8 | 28.5 | 14 | 19 |
2JS-04-06 | 7/16"X20 | G3/8"X19 | 14 | 9 | 29.5 | 17 | 22 |
2JS-06 | 9/16"X18 | G3/8"X19 | 14.1 | 9 | 29.5 | 17 | 22 |
2JS-06-08 | 9/16"X18 | G1/2"X14 | 14.1 | 10.5 | 31 | 19 | 27 |
2JS-08 | 3/4"X16 | G1/2"X14 | 16.7 | 10.5 | 35.5 | 22 | 27 |
2JS-10-08 | 7/8"X14 | G1/2"X14 | 19.3 | 10.5 | 38 | 24 | 27 |
2JS-10-12 | 7/8"X14 | G3/4"X14 | 19.3 | 13.5 | 39.5 | 27 | 32 |
2JS-12 | 1.1/16"X12 | G3/4"X14 | 21.9 | 13.5 | 43 | 30 | 32 |
2JS-12-16 | 1.1/16"X12 | G1"X11 | 21.9 | 14.5 | 46 | 32 | 41 |
2JS-16-12 | 1.5/16"X12 | G3/4"X14 | 23.1 | 13.5 | 46.5 | 36 | 32 |
2JS-16 | 1.5/16"X12 | G1"X11 | 23.1 | 14.5 | 48 | 36 | 41 |
2JS-20 | 1.5/8"X12 | G1.1/4"X11 | 24.3 | 15.5 | 51.5 | 46 | 50 |
2JS-24 | 1.7/8"X12 | G1.1/2"X11 | 27.5 | 16 | 57 | 50 | 55 |
