1. Definition of Hose ferrule, it is crimp socket or sleeve (called ferrule )for hydraulic hose which is 1, 2, 3,4 etc wire braids or spiral type and low, medium, high pressure, as the below showed: a metal ferrule placed over a hose end to affix the fitting to the hose. See braid sleeve, crimp ferrule for hydraulic hose, hose coupling. Ferrule has two type: skive ferrule and no-skive ferrule, ferrule with internal barbed for crimping external barbed hose end.
Hose Fitting with external barb |
Ferrule with internal barb |
2. Methods of hose ferrule as below: It is one part of hydraulic hose assembly for crimping hose to fitting End “Bite wire to hose fittings” function.
FERRULE FOR SAE100R1A/ DIN20022 1ST HOSE 00100
FERRULE FOR SAE 100 R2AT/ EN 853 2SN HOSE 00200

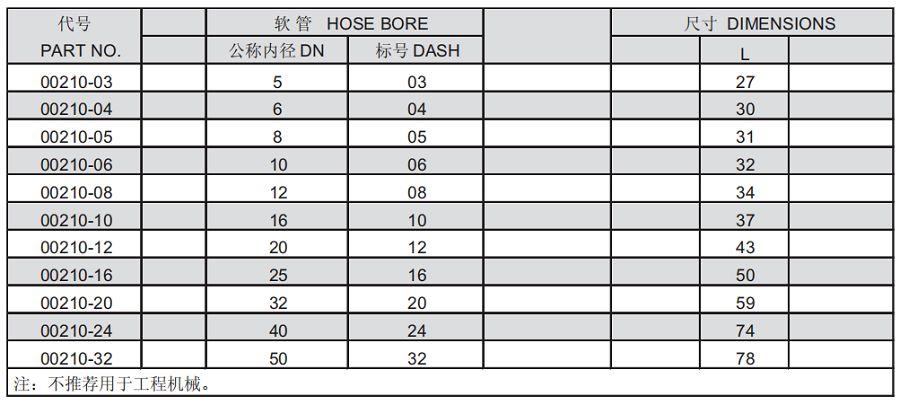

SKIVE FERRULE FOR SAE100R2AT/ EN 853 2SN HOSE 00210
NO-SKIVE FERRULE FOR SAE100R1AT/ DIN20022 1SN HOSE 00110-A
FERRULE FOR SAE 100 R2AT/ EN 853 2SN HOSE 03310
FERRULE FOR 4SP, 4SH/ 12-16, R12/ 06-16 HOSE 00400
FERRULE FOR SAE 100 R9AT-R12, DIN EN 856-4SP/ 04-16 HOSE 00402
