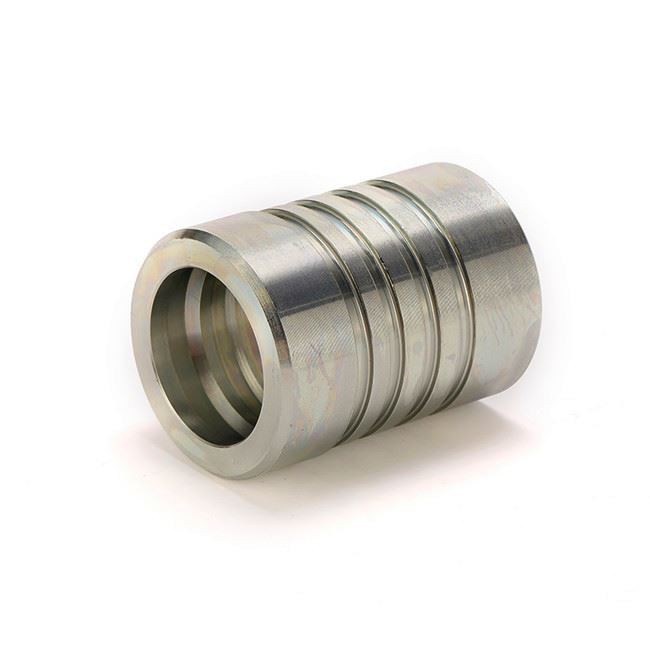

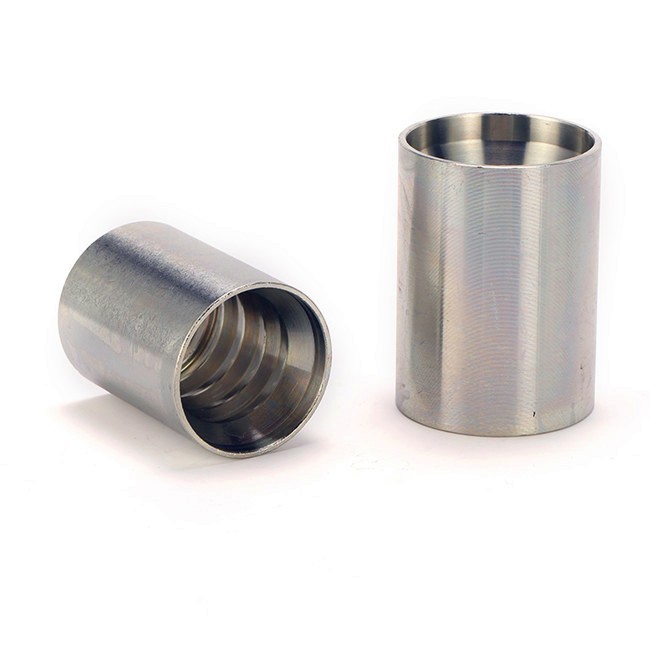

Hydraulic hose crimp ferrules for SAE100 R13 R15 as per EN856 hydraulic rubber hose with 4 or 6 high tensile steel wire spirals. match with interlock type hose fittings. This type of hydraulic hose assembly is used in Extremely high pressure, Temperature: -40°C +100°C, Size Available: 3/8” to 2”.
We are China professional manufacturer of hose crimped interlock ferrules, interlock hose fittings, with OEM capacity more than 20 years. Our 00621 series offer you with specification as follows:
Match with six spiral interlock hose fittings
Material is carbon steel and stainless steel
Shapes is available in straight, elbow, extra long.

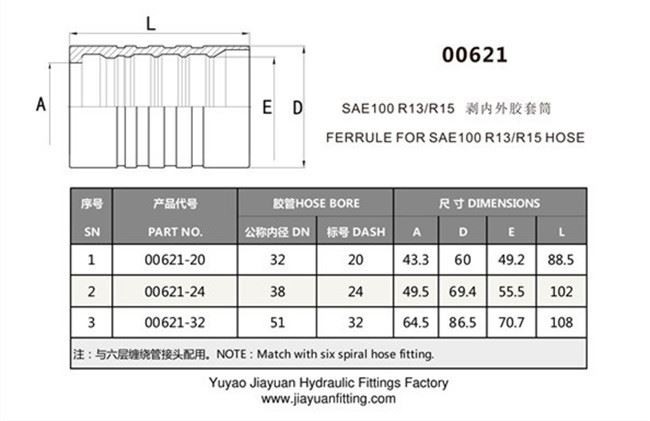

| SN | PART NO. | HOSE BORE DN | DASH | A | D | E | L |
1 | 00 621-20 |
32 |
20 |
43.3 |
6 0 |
49.2 |
88.5 |
2 | 00 621-24 |
38 |
24 |
49.5 |
6 9.4 |
55.5 |
102 |
3 | 00 621-32 |
51 |
32 |
64.5 |
8 6.5 |
70.7 |
108 |
Interlock Hydraulic fittings types for SAE100 R13 R15 hose as follows:
SAE J518 code 61 and code 62 flange connections
DIN 2353 24 degree compression fitting connections
BS 5200 60 degree hose adaptor connections
SAE J514 37 flared tube fitting connections
SAE J1453 O ring face seal tube fitting connections
We offer catalog of Hydraulic hose crimp ferrules , interchangeable to many brands such as Manuli, Parker, Gates, Eatons etc. Quality is machined with CNC automation lines, delivery on time, competitive price. Please contact me for more jyray@72338.com
