24° Cone Fittings with Metric Threads
There are many difrent standards for ftings with 24* cone seals. These are flareless tube ftings that can also be used as hose adapters.
SAE J514 includes flareless tube ftings with Unifed Standard, inch dimensioned threads and are used with inch size tubing.
There have been, in the past, made in England with BSP threads and sized for inch size tubing. Yokohama Rubber Co. makes 24。cone fittings with BSP threads as well as the metric threads shown on the chart.
This material has been extracted from "Everything You Never Wanted to Know about Metrics."
Edit by Sally
| Section No. | HOSE | BORE | TUBE | ||
| DN | DASH | O.D. | S1 | S2 | |
| 20518D-16-04(R5)M14X1.5 | 5 | 4 | 8 | 14 | 19 |
| 20518D-16-05(R5)M16X1.5 | 6 | 5 | 8 | 14 | 19 |
| 20518D-18-04(R5)M18X1.5 | 5 | 4 | 10 | 17 | 22 |
| 20518D-18-06(R5)M18×1.5 | 8 | 6 | 10 | 17 | 22 |
| 20518D-20-06(R5)M20×1.5 | 8 | 6 | 12 | 17 | 24 |
| 20518D-22-06(R5)M22×1.5 | 8 | 6 | 14 | 19 | 27 |
| 20518D-24-08(R5)M24X1.5 | 11 | 8 | 16 | 22 | 30 |
| 20518D-30-10(R5)M30x2 | 13 | 10 | 20 | 27 | 36 |
| 20518D-30-12(R5)M30x2 | 16 | 12 | 20 | 27 | 36 |
| 20518D-36-12 (R5)M36x2 | 16 | 12 | 25 | 36 | 41 |
| 20518D-36-16(R5)M36X2 | 22 | 16 | 25 | 36 | 41 |
| 20518D-42-16(R5)M42x2 | 22 | 16 | 30 | 41 | 50 |
| 20518D-42-20(R5)M42x2 | 28 | 20 | 30 | 41 | 50 |
| 20518D-52-20(R5)M52X2 | 28 | 20 | 38 | 50 | 60 |
| 20518D-52-24(R5)M52X2 | 35 | 24 | 38 | 50 | 60 |
Finish: Zinc plate, Zn-Ni plated, Cr6 plated
Optional materials Steel / carbon steel / brass
Port of Loading: Ningbo
Minimum order quantity: 100
Customized service: We specialize in the production of all kinds of hydraulic oil pipes, adjusters, stoves, straws, accessories.

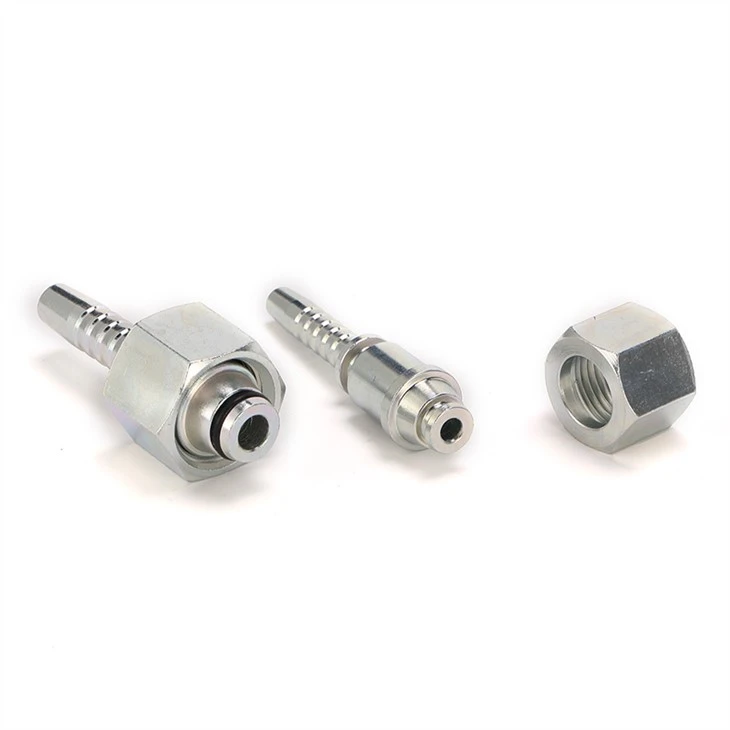

Model: 20518D-R5
