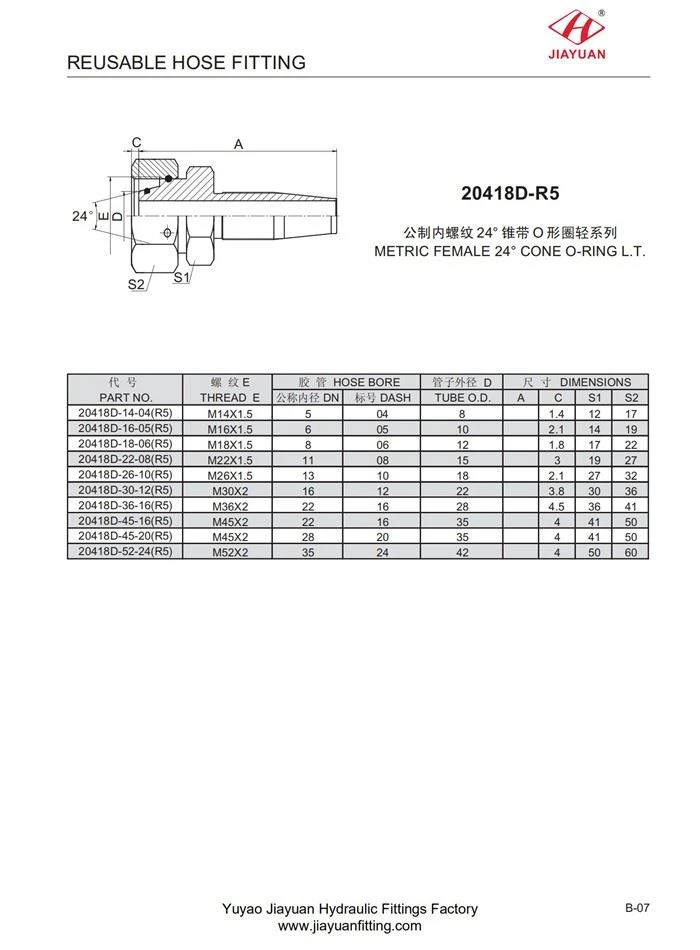

METRIC FEMALE Reusable Hose Fittings

Reusable hose ends are different from regular hydraulic fittings in that they are not permanently attached to the hydraulic hose. Reusable (or field attachable) hose ends do not require crimping to attach to the hydraulic hose. A collar is placed over the end of the hose, and then a stem is threaded into the collar, creating a seal. The fittings can be tightened by hand or with hand tools. When it is time to remove either the hydraulic hose or the fitting, simply unscrew the collar from the stem and remove the fitting.

PART NO.	THREAD E	HOSE BORE	D	DIMENSIONS
		DN	DASH	TUBE O.D.	C	S1	S2
20418D-14-04(R5)	M14X1.5	5	04	8	1.4	12	17
20418D-16-05(R5)	M16X1.5	6	05	10	2.1	14	19
20418D-18-06(R5)	M18X1.5	8	06	12	1.8	17	22
20418D-22-08(R5)	M22X1.5	11	08	15	3	19	27
20418D-26-10(R5)	M26X1.5	13	10	18	2.1	27	32
20418D-30-12(R5)	M30X2	16	12	22	3.8	30	36
20418D-36-16(R5)	M36X2	22	16	28	4.5	36	41
20418D-45-16(R5)	M45X2	22	16	35	4	41	50
20418D-45-20(R5)	M45X2	28	20	35	4	41	50
20418D-52-24(R5)	M52X2	35	24	42	4	50	60
