Product category: JIC hydraulic fitting adapters for tube connection of fluid power
Product Standard: ISO 8434-2, SAE J514.
Material: carbon steel, stainless steel or copper alloy.
JIC tube end to other end connection as follow: BSP Captive seal E, G, H types, ISO 6149 series fittings, JIS B2351 fittings, ISO 11926 and SAE J1926 ORB fittings, DIN 3852 and ISO 1179 fittings, ISO 9974 fittings etc.

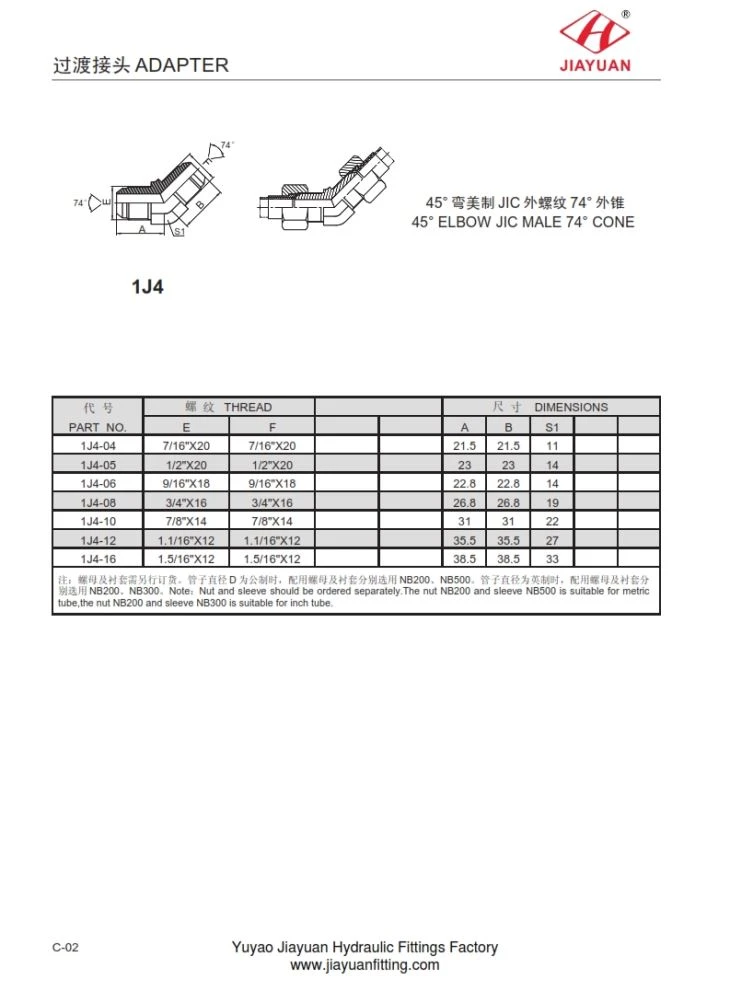

1J4 45° ELBOW JIC MALE 74° CONE Dimension chart as follows:
PART NO. | THREAD | DIMENSIONS | |||||
E | F | A | B | S1 | |||
1J4-04 | 7/16"X20 | 7/16"X20 | 21.5 | 21.5 | 11 | ||
1J4-05 | 1/2"X20 | 1/2"X20 | 23 | 23 | 14 | ||
1J4-06 | 9/16"X18 | 9/16"X18 | 22.8 | 22.8 | 14 | ||
1J4-08 | 3/4"X16 | 3/4"X16 | 26.8 | 26.8 | 19 | ||
1J4-10 | 7/8"X14 | 7/8"X14 | 31 | 31 | 22 | ||
1J4-12 | 1.1/16"X12 | 1.1/16"X12 | 35.5 | 35.5 | 27 | ||
1J4-16 | 1.5/16"X12 | 1.5/16"X12 | 38.5 | 38.5 | 33 | ||
