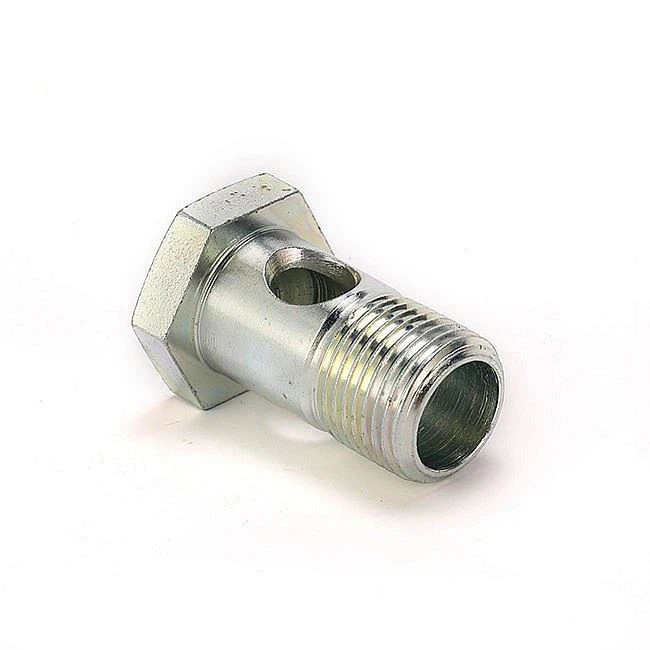

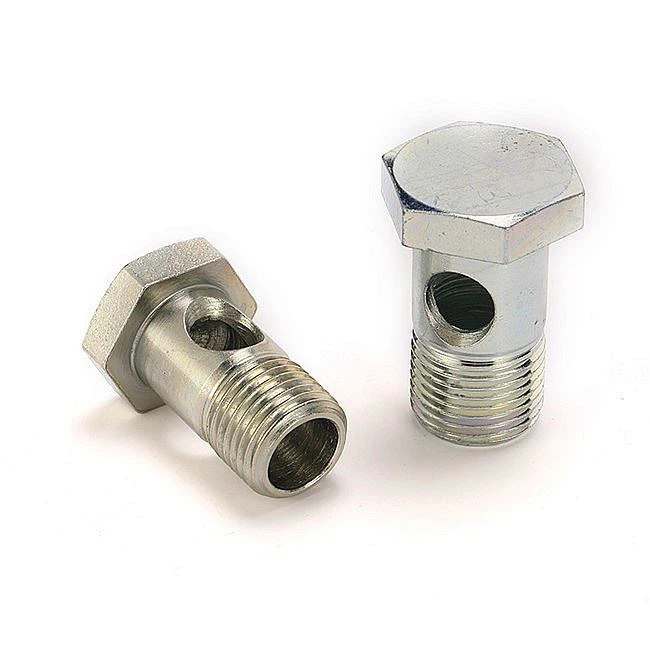

Metric Banjo Bolts is part of banjo coupling fittings, it is designed with hollow screw bolt for fluid and pneumatic transfer. You can found in Hydraulic power systems, Power steering fluid, Variable valve timing systems, Brake caliper connectors, Turbo charger oil feeds, Fuel filter connectors, Carburetor connector, Hydraulic clutch systems,fuel dosing for SCR systems etc.
Two standards of metric banjo bolts, one is from German DIN 7643, another one is from China GB 3750.3 Hollow screw.
We are professional manufacturer and supplier of banjo bolt and fittings, offer various sizes, material and standards, our main product is metric banjo hydraulic fittings, banjo bolt motorcycle, banjo bolt fuel line, banjo bolt adapter, banjo bolt union and double banjo bolt.
Available Material: Steel & Zinc Plated, Brass, Stainless Steel
High quality: Inspected dimensions; Remove burrs; Material cert.
PART NUMBER | E THREAD | DN | DASH | d | D | H |
70011-08-04 | M8*1 | 6 | 04 | 8 | 20 | 13 |
70011-10-04 | M10*1 | 6 | 04 | 10 | 22 | 13 |
70011-12-04 | M12*1.5 | 6 | 04 | 12 | 20 | 12 |
70011-12-05 | M12*1.5 | 8 | 05 | 12 | 20 | 12 |
70011-14-04 | M14*1.5 | 6 | 04 | 14 | 24 | 14 |
70011-14-05 | M14*1.5 | 8 | 05 | 14 | 24 | 14 |
70011-14-06 | M14*1.5 | 10 | 06 | 14 | 24 | 14 |
70011-14-08 | M14*1.5 | 12 | 08 | 14 | 24 | 14 |
70011-16-06 | M16*1.5 | 10 | 06 | 16 | 28 | 16 |
70011-16-08 | M16*1.5 | 12 | 08 | 16 | 28 | 16 |
70011-18-06 | M18*1.5 | 10 | 06 | 18 | 32 | 20 |
70011-18-08 | M18*1.5 | 12 | 08 | 18 | 32 | 20 |
70011-18-10 | M18*1.5 | 16 | 10 | 18 | 32 | 20 |
70011-20-08 | M20*1.5 | 12 | 08 | 20 | 36 | 22 |
70011-20-10 | M20*1.5 | 16 | 10 | 20 | 36 | 22 |
70011-22-08 | M22*1.5 | 12 | 08 | 22 | 38 | 25 |
70011-22-10 | M22*1.5 | 16 | 10 | 22 | 38 | 25 |
70011-22-12 | M22*1.5 | 22 | 12 | 22 | 38 | 25 |
70011-26-12 | M26*1.5 | 22 | 12 | 26 | 46 | 30 |
70011-27-12 | M27*1.5 | 22 | 12 | 27 | 52 | 36 |
70011-30-12 | M30*1.5 | 22 | 12 | 30 | 54 | 36 |
70011-30-16 | M30*1.5 | 25 | 16 | 30 | 54 | 36 |
70011-33-16 | M33*1.5 | 25 | 16 | 30 | 60 | 36 |
