Product Types: Metric Female Type Stud Fittings-Tube to female connector
Industry Standards: DIN 2353, ISO 8434-1,DIN 3861
Connection E to F style: 24°cone end to Bulkhead, swivel with o-ring, weld-on/weld-in, stud, reducer
Shape: Straight etc.
Working pressure: 16-63 Mpa
Fittings Material:Brass; Carbon steel; Stainless Steel
Application:Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation

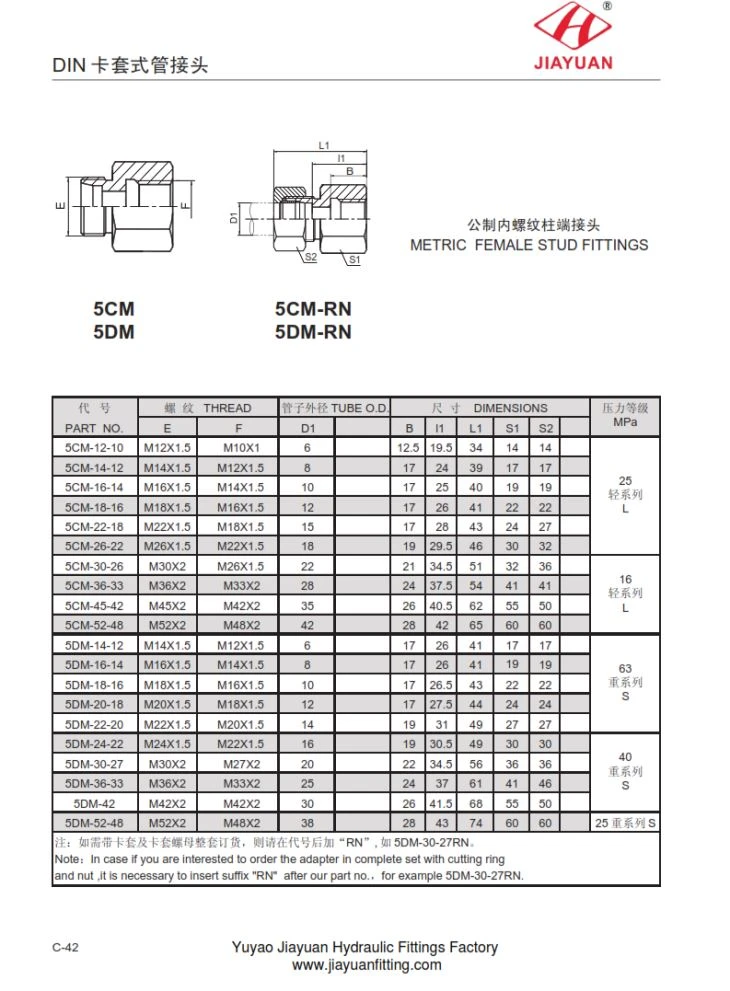

PART NO. THREAD T
E F D1
5CM-12-10 M12X1.5 M10X1 6
5CM-14-12 M14X1.5 M12X1.5 8
5CM-16-14 M16X1.5 M14X1.5 10
5CM-18-16 M18X1.5 M16X1.5 12
5CM-22-18 M22X1.5 M18X1.5 15
5CM-26-22 M26X1.5 M22X1.5 18
5CM-30-26 M30X2 M26X1.5 22
5CM-36-33 M36X2 M33X2 28
5CM-45-42 M45X2 M42X2 35
5CM-52-48 M52X2 M48X2 42
5DM-14-12 M14X1.5 M12X1.5 6
5DM-16-14 M16X1.5 M14X1.5 8
5DM-18-16 M18X1.5 M16X1.5 10
5DM-20-18 M20X1.5 M18X1.5 12
5DM-22-20 M22X1.5 M20X1.5 14
5DM-24-22 M24X1.5 M22X1.5 16
5DM-30-27 M30X2 M27X2 20
5DM-36-33 M36X2 M33X2 25
5DM-42 M42X2 M42X2 30
5DM-52-48 M52X2 M48X2 38
