ORFS Inch Sleeve for o ring face seal tube fittings
Meet Industry Standards SAE J1453, ISO 8434-3
It is design for parflange sleeve for orfs fittings in inch hydraulic tubing.

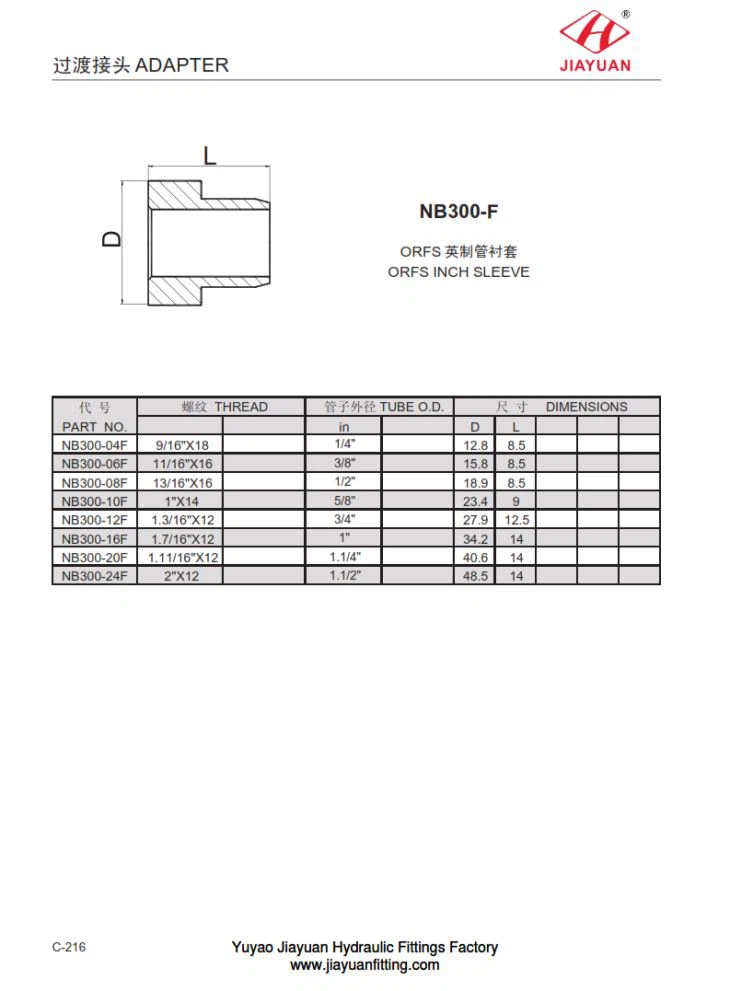

NB300-F ORFS INCH SLEEVE Dimension Size table chart as follows:
PART NO. | THREAD | TUBE O.D. | DIMENSIONS | |||||||
in | D | L | ||||||||
NB300-04F | 9/16"X18 | 1/4" | 12.8 | 8.5 | ||||||
NB300-06F | 11/16"X16 | 3/8" | 15.8 | 8.5 | ||||||
NB300-08F | 13/16"X16 | 1/2" | 18.9 | 8.5 | ||||||
NB300-10F | 1"X14 | 5/8" | 23.4 | 9 | ||||||
NB300-12F | 1.3/16"X12 | 3/4" | 27.9 | 12.5 | ||||||
NB300-16F | 1.7/16"X12 | 1" | 34.2 | 14 | ||||||
NB300-20F | 1.11/16"X12 | 1.1/4" | 40.6 | 14 | ||||||
NB300-24F | 2"X12 | 1.1/2" | 48.5 | 14 | ||||||
