Product Types: 1FS o ring face seal tube fittings
Industry Standards: SAE J1453 , SAE J514, ISO 8434-2
Connection E to F style:
ORFS MALE/JIS GAS MALE 60°CONE
Shape: straight
ORFS Fittings Working pressure rating: 3215 psi to 5800 psi, 216 bar to 400 bar.
Flat face Orfs o ring sizes kit and O ring face seal design we also can offer.
Difference between o ring face seal and o ring boss seal
Fittings Material: Brass; Carbon steel; Stainless Steel
Application: Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation

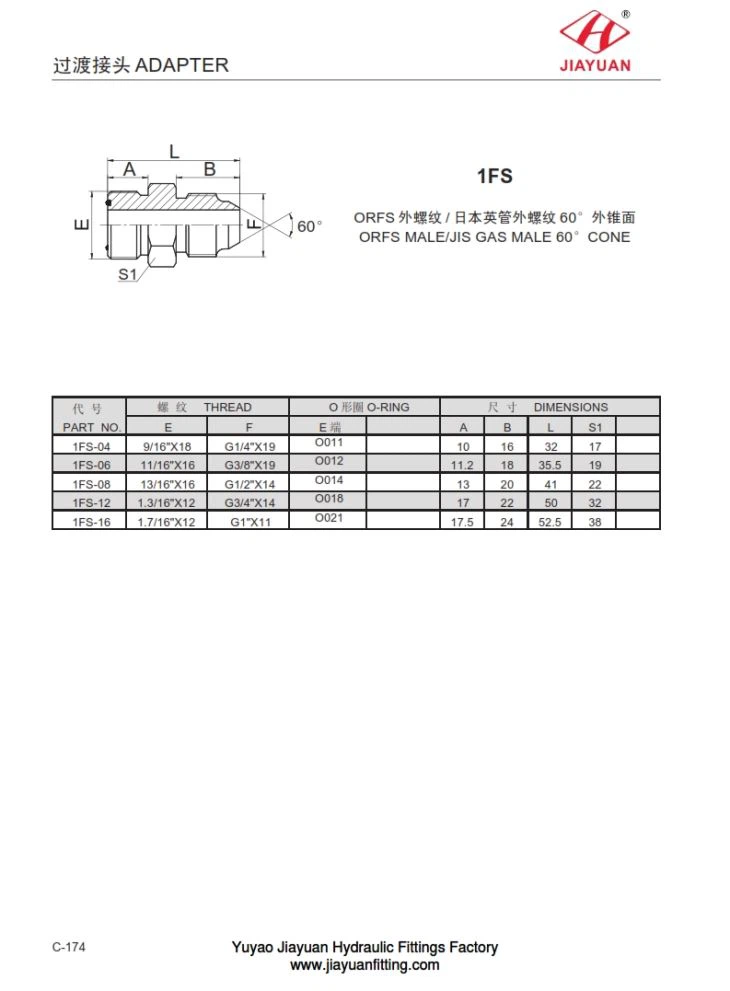

1FS ORFS male / jis gas male 60° cone Dimension Size table chart as follows:
PART NO. | THREAD | O O-RING | DIMENSIONS | ||||||
E | F | E | A | B | L | S1 | |||
1FS-04 | 9/16"X18 | G1/4"X19 | O011 | 10 | 16 | 32 | 17 | ||
1FS-06 | 11/16"X16 | G3/8"X19 | O012 | 11.2 | 18 | 35.5 | 19 | ||
1FS-08 | 13/16"X16 | G1/2"X14 | O014 | 13 | 20 | 41 | 22 | ||
1FS-12 | 1.3/16"X12 | G3/4"X14 | O018 | 17 | 22 | 50 | 32 | ||
1FS-16 | 1.7/16"X12 | G1"X11 | O021 | 17.5 | 24 | 52.5 | 38 | ||
