Female ORFS to Adjustable O ring boss Elbow ORB fittings
Female O-ring face seal end with swivel nut design, meet SAE J1453.
ORB fitting end is design as per SAE o ring boss, male UNF thread.
90 degree elbow is made of hot forging body such as stainless steel material.

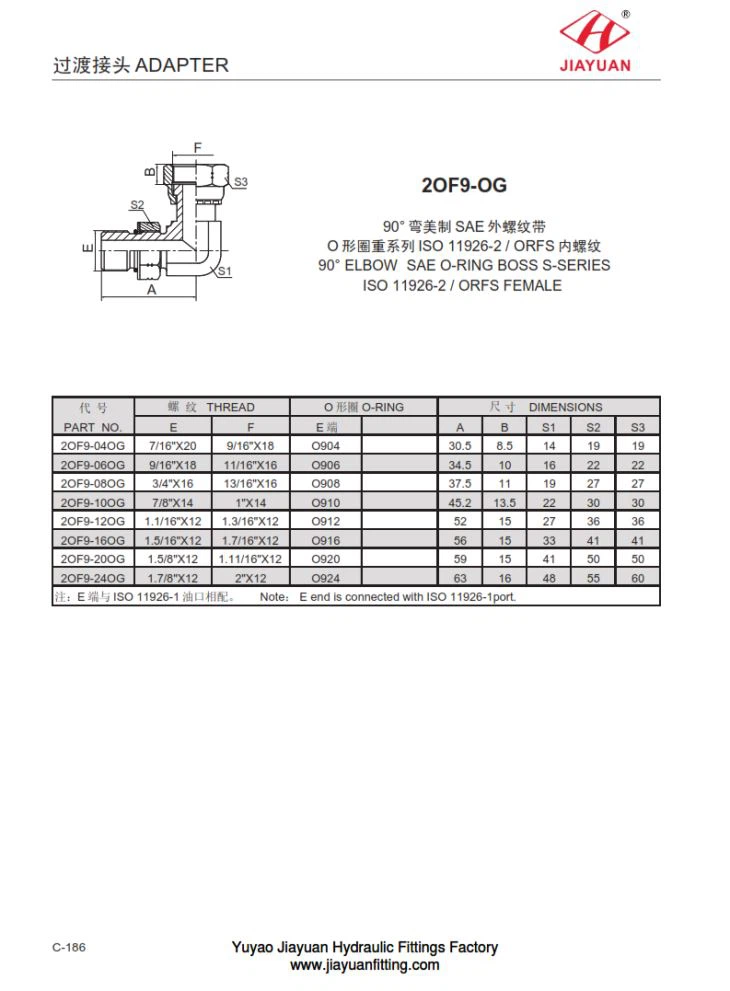

2OF9-OG 90°ELBOW SAE O-RING BOSS S-SERIES ISO 11926-2 / ORFS FEMALE Dimension Size table chart as follows:
PART NO. | THREAD | O O-RING | DIMENSIONS | ||||||
E | F | E | A | B | S1 | S2 | S3 | ||
2OF9-04OG | 7/16"X20 | 9/16"X18 | O904 | 30.5 | 8.5 | 14 | 19 | 19 | |
2OF9-06OG | 9/16"X18 | 11/16"X16 | O906 | 34.5 | 10 | 16 | 22 | 22 | |
2OF9-08OG | 3/4"X16 | 13/16"X16 | O908 | 37.5 | 11 | 19 | 27 | 27 | |
2OF9-10OG | 7/8"X14 | 1"X14 | O910 | 45.2 | 13.5 | 22 | 30 | 30 | |
2OF9-12OG | 1.1/16"X12 | 1.3/16"X12 | O912 | 52 | 15 | 27 | 36 | 36 | |
2OF9-16OG | 1.5/16"X12 | 1.7/16"X12 | O916 | 56 | 15 | 33 | 41 | 41 | |
2OF9-20OG | 1.5/8"X12 | 1.11/16"X12 | O920 | 59 | 15 | 41 | 50 | 50 | |
2OF9-24OG | 1.7/8"X12 | 2"X12 | O924 | 63 | 16 | 48 | 55 | 60 | |
E ISO 11926-1 Note E end is connected with ISO 11926-1port. | |||||||||
