Assembly Instructions of reusable hose fittings:

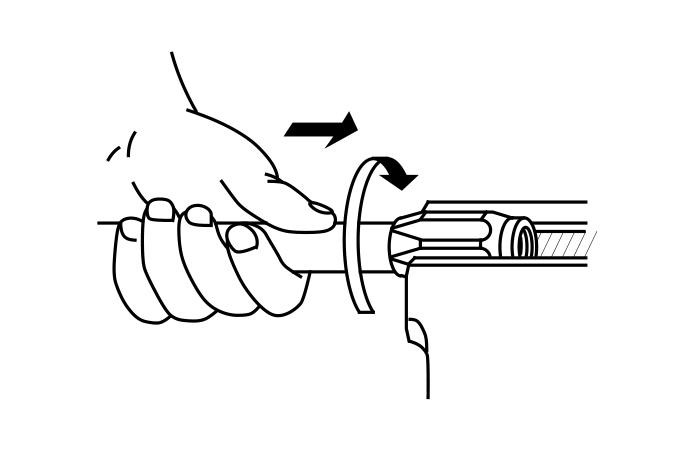

1. Lubricate mandrel, insert threads and I.D. of hose.
2. Screw hose into socket (left-hand thread) until hose bottoms. Back out 1/4 turn.
3. Place insert on mandrel. Screw insert into socket. When assembling swivel ends, leave 1/32" clear ance between swivel nut and socket.
Reusable shoe fittings is Application in these fields: Medium pressure and high temperature hose lines for a variety of applications including truck, industrial, and small engine where temperature may be a problem.
Pressure: Determined by hose burst pressure. Material: AISI/SAE 12L14 carbon steel and stainless steel. Plating: Zinc; clear trivalent chrome;
Advantages: Very popular in heavy-duty truck markets. Can be used with a variety of hoses allowing for a diverse number of applications.
