SAE J2552 Push-On Hose Fittings SAE J846 1501A8 dimension

SAE J2552 is Barb-End Design push-on hose fittings, Barb shape and number of barbs is optional with the manufacturer, but shall have a minimum of two barbs.

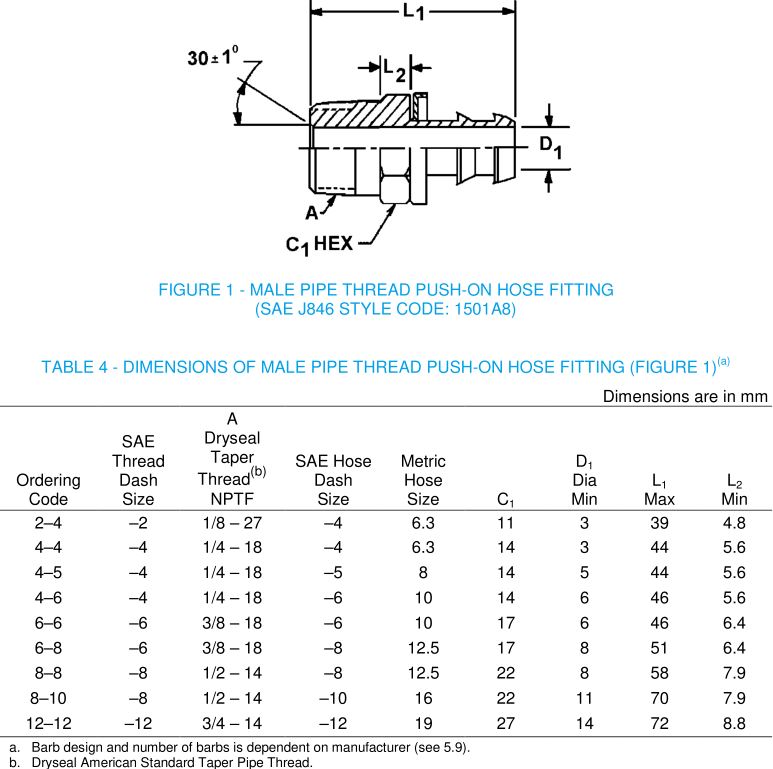

FIGURE 1 - MALE PIPE THREAD PUSH-ON HOSE FITTING (SAE J846 STYLE CODE: 1 501 A8)
