Instrumentation Tube Fittings Manufacturers in China Reviews
Content:
What is the instrumentation tube fittings?
What is size and standards of instrumentation tube fittings?
Where is the market of instrumentation tube fittings?
What is our specification of instrumentation tube fittings?
What is the instrumentation tube fittings?
Instrumentation Tube Fittings is designed for measuring instruments such as indicating, recording and measuring etc, compression instrumentation tube fittings is used for
• Super critical coal plant boiler water control
• Heavy wall tubing connections
• Alternative to traditional cone and thread connections
• High pressure/high temperature water and steam applications
• Transmitter/gauge/relief valve connections
Jiayuan produce two types of instrumentation tube fittings dimensions, single ferrule compression instrumentation tube fittings and two ferrules compression instrumentation tube fittings. Working in a high pressure, impulse, vibration, vacuum, temperature conditions in process and instrumentation system connections.
What is size and standards of instrumentation tube fittings?
Standards of double ferrule compression tube fittings
• Meet the standards of ASTM F1387-99 (2012)
• Pressure working as per ASME B31.3
• Material is SS316/L, SS304/L, Brass
• Size range 1/4” to 2”
• Temperature up to 350OC
• Shape is available in straight, elbow, tee and cross
Where is the market of instrumentation tube fittings?
Markets:
• Semiconductor/Microelectronics
• Chemical
• Petro-Chemical
• Power
• Nuclear
• Oil and Gas
• Research Labs
Specifications
Pressure Ratings | Up to 11 000 psig (760 bar) |
Materials of construction | Including stainless steel and other materials optimized for strength, corrosion-resistance, weldability and ductility |
End Connection | |
Types | NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters |
Sizes | 1/16 to 2 in.; 2 to 50 mm |
Configurations | Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End |
Types:
|
|

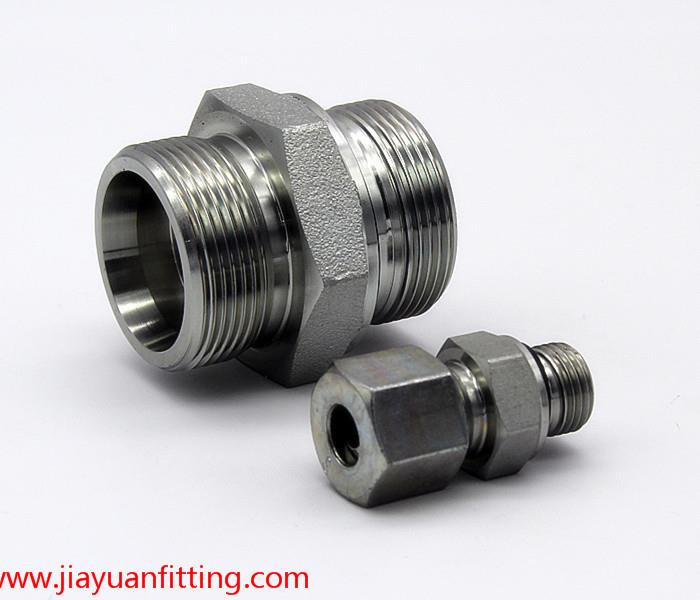

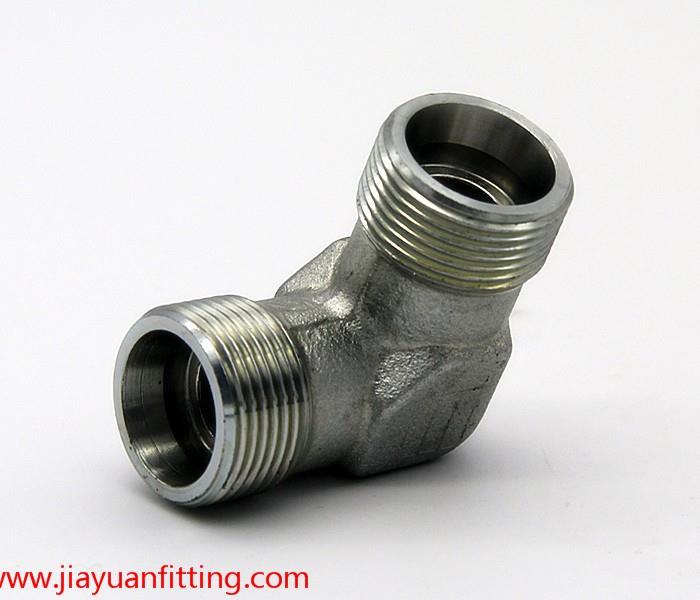

| Male connector | Union connector elbow |
|
|

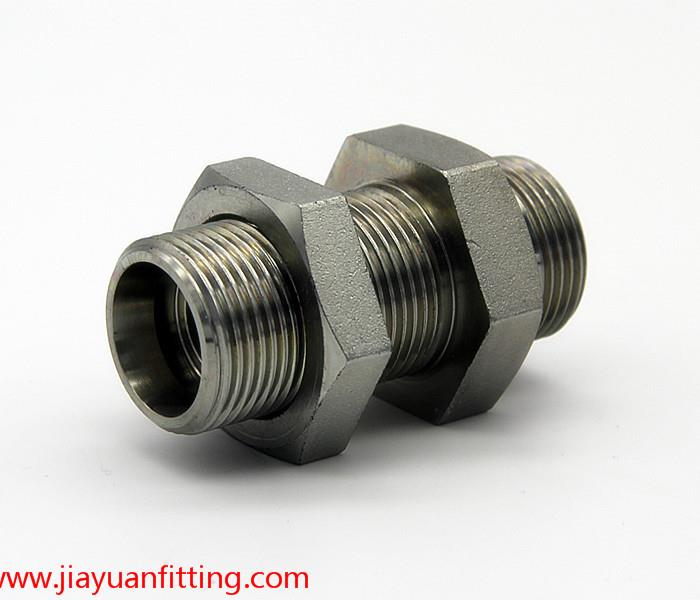

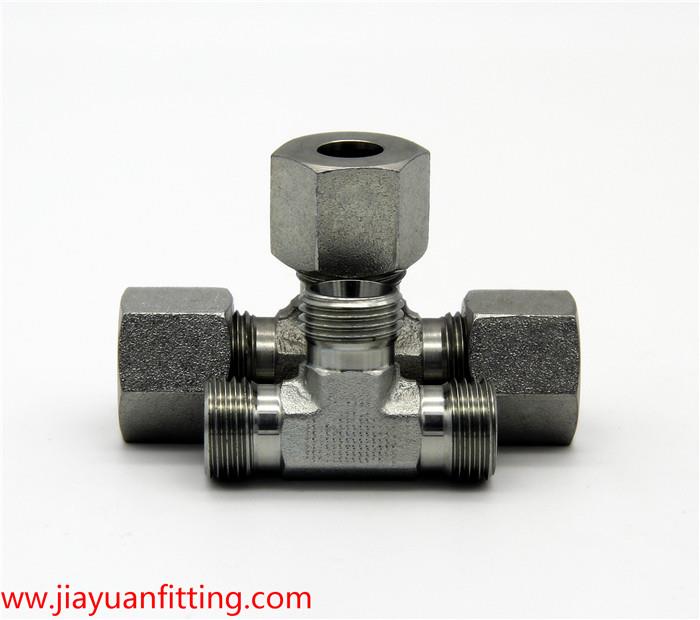

Male connector union buckhead Tee
