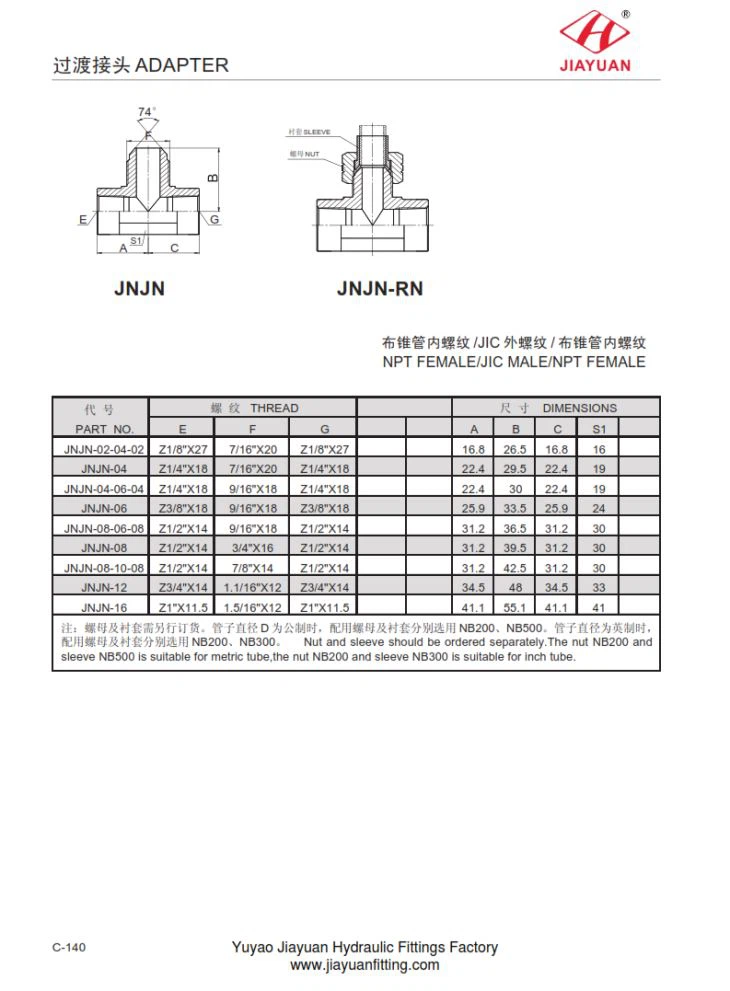

BT JIC Male NPT 2 Female Connector

E

F

G

A

B

C

S1

JNJN-02-04-02

Z1/8"X27

7/16"X20

Z1/8"X27

16.8

26.5

16.8

16

JNJN-04

Z1/4"X18

7/16"X20

Z1/4"X18

22.4

29.5

22.4

19

JNJN-04-06-04

Z1/4"X18

9/16"X18

Z1/4"X18

22.4

30

22.4

19

JNJN-06

Z3/8"X18

9/16"X18

Z3/8"X18

25.9

33.5

25.9

24

JNJN-08-06-08

Z1/2"X14

9/16"X18

Z1/2"X14

31.2

36.5

31.2

30

JNJN-08

Z1/2"X14

3/4"X16

Z1/2"X14

31.2

39.5

31.2

30

JNJN-08-10-08

Z1/2"X14

7/8"X14

Z1/2"X14

31.2

42.5

31.2

30

JNJN-12

Z3/4"X14

1.1/16"X12

Z3/4"X14

34.5

48

34.5

33

JNJN-16

Z1"X11.5

1.5/16"X12

Z1"X11.5

41.1

55.1

41.1

41
