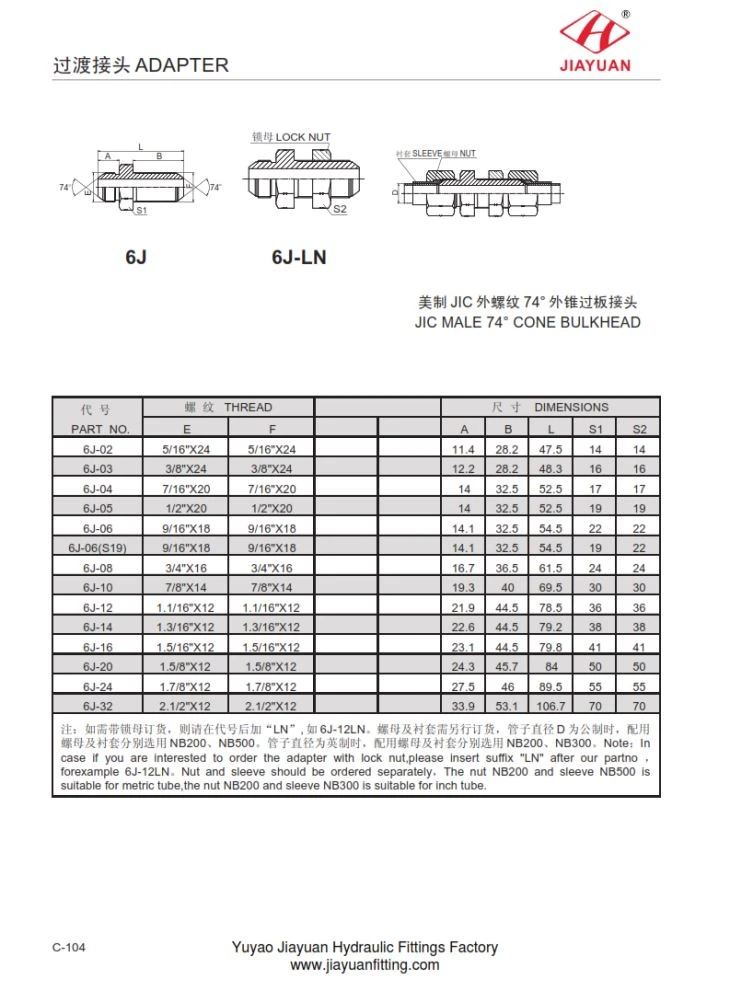

6J LN JIC MALE 74°CONE BULKHEAD size chart as follows:
PART NO. | THREAD | DIMENSIONS | ||||||
E | F | A | B | L | S1 | S2 | ||
6J-02 | 5/16"X24 | 5/16"X24 | 11.4 | 28.2 | 47.5 | 14 | 14 | |
6J-03 | 3/8"X24 | 3/8"X24 | 12.2 | 28.2 | 48.3 | 16 | 16 | |
6J-04 | 7/16"X20 | 7/16"X20 | 14 | 32.5 | 52.5 | 17 | 17 | |
6J-05 | 1/2"X20 | 1/2"X20 | 14 | 32.5 | 52.5 | 19 | 19 | |
6J-06 | 9/16"X18 | 9/16"X18 | 14.1 | 32.5 | 54.5 | 22 | 22 | |
6J-06(S19) | 9/16"X18 | 9/16"X18 | 14.1 | 32.5 | 54.5 | 19 | 22 | |
6J-08 | 3/4"X16 | 3/4"X16 | 16.7 | 36.5 | 61.5 | 24 | 24 | |
6J-10 | 7/8"X14 | 7/8"X14 | 19.3 | 40 | 69.5 | 30 | 30 | |
6J-12 | 1.1/16"X12 | 1.1/16"X12 | 21.9 | 44.5 | 78.5 | 36 | 36 | |
6J-14 | 1.3/16"X12 | 1.3/16"X12 | 22.6 | 44.5 | 79.2 | 38 | 38 | |
6J-16 | 1.5/16"X12 | 1.5/16"X12 | 23.1 | 44.5 | 79.8 | 41 | 41 | |
6J-20 | 1.5/8"X12 | 1.5/8"X12 | 24.3 | 45.7 | 84 | 50 | 50 | |
6J-24 | 1.7/8"X12 | 1.7/8"X12 | 27.5 | 46 | 89.5 | 55 | 55 | |
6J-32 | 2.1/2"X12 | 2.1/2"X12 | 33.9 | 53.1 | 106.7 | 70 | 70 | |
LN , 6J-12LN D NB200 NB500 NB200 NB300 Note In case if you are interested to order the adapter with lock nut,please insert suffix "LN" after our partno forexample 6J-12LN Nut and sleeve should be ordered separately The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. | ||||||||
