BSPP male captive seal BSP female swivel Connector
It is BSP hydraulic adaptor from stud end to tube or pipe swivel end.
Swivel connector end meet Standard of ISO 8434-6 and BS 5200.
Stud end is designed with male BSPP thread and 60 degree cone, ED sealing on the hexagon.
It is made of cold draw bar such as stainless steel or carbon steel.

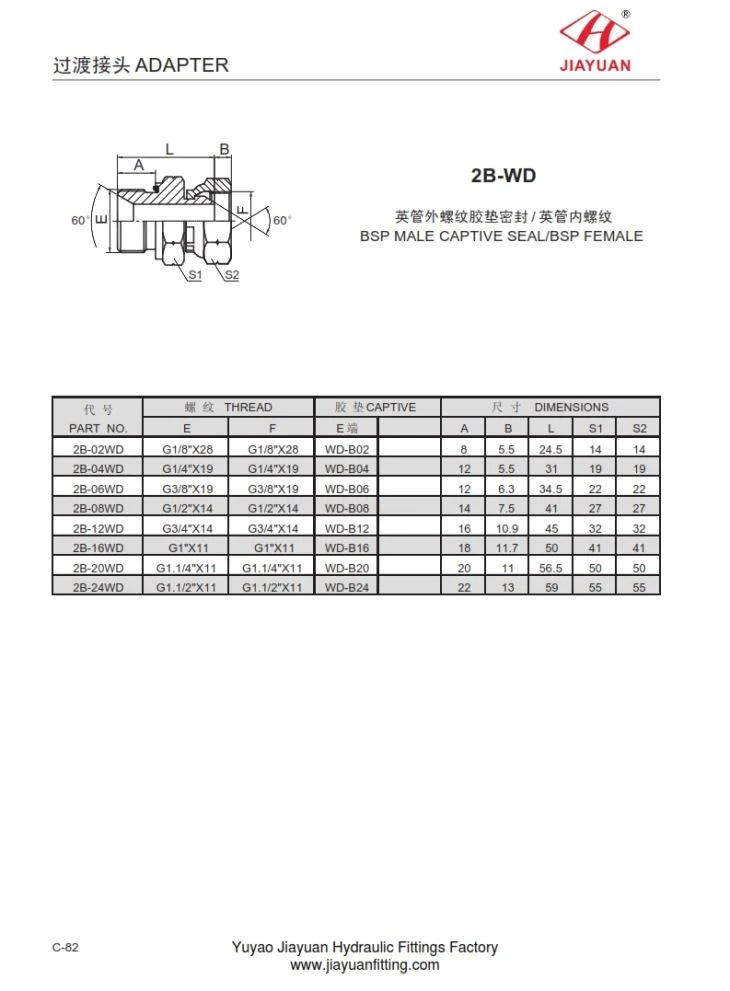

2B-WD BSP MALE CAPTIVE SEAL/BSP FEMALE
PART NO. | THREAD | CAPTIVE | DIMENSIONS | ||||||
E | F | E | A | B | L | S1 | S2 | ||
2B-02WD | G1/8"X28 | G1/8"X28 | WD-B02 | 8 | 5.5 | 24.5 | 14 | 14 | |
2B-04WD | G1/4"X19 | G1/4"X19 | WD-B04 | 12 | 5.5 | 31 | 19 | 19 | |
2B-06WD | G3/8"X19 | G3/8"X19 | WD-B06 | 12 | 6.3 | 34.5 | 22 | 22 | |
2B-08WD | G1/2"X14 | G1/2"X14 | WD-B08 | 14 | 7.5 | 41 | 27 | 27 | |
2B-12WD | G3/4"X14 | G3/4"X14 | WD-B12 | 16 | 10.9 | 45 | 32 | 32 | |
2B-16WD | G1"X11 | G1"X11 | WD-B16 | 18 | 11.7 | 50 | 41 | 41 | |
2B-20WD | G1.1/4"X11 | G1.1/4"X11 | WD-B20 | 20 | 11 | 56.5 | 50 | 50 | |
2B-24WD | G1.1/2"X11 | G1.1/2"X11 | WD-B24 | 22 | 13 | 59 | 55 | 55 | |
