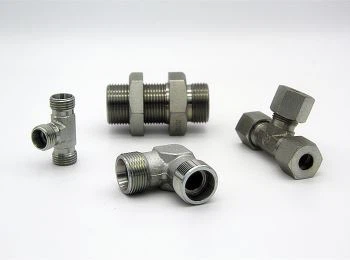

Tee Reducer Hydraulic Fittings with Metric 24 degree cone
Product Types: Metric Thread Type Tube Fittings-Tube to tube connector
Industry Standards: DIN 2353, ISO 8434-1,DIN 3861
Working pressure: 16-63 Mpa
Fittings Material:Brass; Carbon steel; Stainless Steel
PART NO. THREAD TUBE O.D.
E F G D1 D2 D3
AC-12-14-12 M12X1.5 M14X1.5 M12X1.5 6 8 6
AC-12-16-12 M12X1.5 M16X1.5 M12X1.5 6 10 6
AC-12-16-16 M12X1.5 M16X1.5 M16X1.5 6 10 10
AC-14-12-14 M14X1.5 M12X1.5 M14X1.5 8 6 8
AC-14-14-18 M14X1.5 M14X1.5 M18X1.5 8 8 12
AC-14-16-14 M14X1.5 M16X1.5 M14X1.5 8 10 8
AC-14-18-14 M14X1.5 M18X1.5 M14X1.5 8 12 8
AC-16-12-16 M16X1.5 M12X1.5 M16X1.5 10 6 10
AC-16-14-16 M16X1.5 M14X1.5 M16X1.5 10 8 10
AC-16-16-18 M16X1.5 M16X1.5 M18X1.5 10 10 12
AC-16-16-26 M16X1.5 M16X1.5 M26X1.5 10 10 18
AC-16-18-16 M16X1.5 M18X1.5 M16X1.5 10 12 10
AC-16-18-18 M16X1.5 M18X1.5 M18X1.5 10 12 12
AC-16-22-16 M16X1.5 M22X1.5 M16X1.5 10 15 10
AC-16-26-26 M16X1.5 M26X1.5 M26X1.5 10 18 18
AC-18-12-18 M18X1.5 M12X1.5 M18X1.5 12 6 12
AC-18-14-18 M18X1.5 M14X1.5 M18X1.5 12 8 12
AC-18-16-18 M18X1.5 M16X1.5 M18X1.5 12 10 12
AC-18-18-22 M18X1.5 M18X1.5 M22X1.5 12 12 15
AC-18-22-18 M18X1.5 M22X1.5 M18X1.5 12 15 12
AC-18-22-22 M18X1.5 M22X1.5 M22X1.5 12 15 15
AC-18-22-30 M18X1.5 M22X1.5 M30X2 12 15 22
AC-18-26-18 M18X1.5 M26X1.5 M18X1.5 12 18 12
AC-22-12-22 M22X1.5 M12X1.5 M22X1.5 15 6 15
AC-22-16-22 M22X1.5 M16X1.5 M22X1.5 15 10 15
AC-22-18-22 M22X1.5 M18X1.5 M22X1.5 15 12 15
AC-22-22-30 M22X1.5 M22X1.5 M30X2 15 15 22
AC-22-26-22 M22X1.5 M26X1.5 M22X1.5 15 18 15
AC-26-16-26 M26X1.5 M16X1.5 M26X1.5 18 10 18
AC-26-18-26 M26X1.5 M18X1.5 M26X1.5 18 12 18
AC-26-22-26 M26X1.5 M22X1.5 M26X1.5 18 15 18
AC-26-26-30 M26X1.5 M26X1.5 M30X2 18 18 22
AC-26-30-30 M26X1.5 M30X2 M30X2 18 22 22
AC-30-16-30 M30X2 M16X1.5 M30X2 22 10 22
AC-30-18-30 M30X2 M18X1.5 M30X2 22 12 22
AC-30-22-30 M30X2 M22X1.5 M30X2 22 15 22
AC-30-26-30 M30X2 M26X1.5 M30X2 22 18 22
AC-30-30-36 M30X2 M30X2 M36X2 22 22 28
AC-36-16-36 M36X2 M16X1.5 M36X2 28 10 28
AC-36-18-36 M36X2 M18X1.5 M36X2 28 12 28
AC-36-22-36 M36X2 M22X1.5 M36X2 28 15 28
AC-36-26-36 M36X2 M26X1.5 M36X2 28 18 28
AC-36-30-36 M36X2 M30X2 M36X2 28 22 28
AD-16-16-20 M16X1.5 M16X1.5 M20X1.5 8 8 12
AD-18-14-18 M18X1.5 M14X1.5 M18X1.5 10 6 10
AD-20-16-20 M20X1.5 M16X1.5 M20X1.5 12 8 12
AD-20-18-20 M20X1.5 M18X1.5 M20X1.5 12 10 12
AD-20-20-30 M20X1.5 M20X1.5 M30X2 12 12 20
AD-20-24-20 M20X1.5 M24X1.5 M20X1.5 12 16 12
AD-20-30-20 M20X1.5 M30X2 M20X1.5 12 20 12
AD-20-30-30 M20X1.5 M30X2 M30X2 12 20 20
AD-24-14-24 M24X1.5 M14X1.5 M24X1.5 16 6 16
AD-24-16-24 M24X1.5 M16X1.5 M24X1.5 16 8 16
AD-24-18-24 M24X1.5 M18X1.5 M24X1.5 16 10 16
AD-24-20-24 M24X1.5 M20X1.5 M24X1.5 16 12 16
AD-24-30-24 M24X1.5 M30X2 M24X1.5 16 20 16
AD-30-18-30 M30X2 M18X1.5 M30X2 20 10 20
AD-30-20-30 M30X2 M20X1.5 M30X2 20 12 20
AD-30-24-30 M30X2 M24X1.5 M30X2 20 16 20
AD-30-36-30 M30X2 M36X2 M30X2 20 25 20
AD-36-24-36 M36X2 M24X1.5 M36X2 25 16 25
AD-36-30-36 M36X2 M30X2 M36X2 25 20 25
AD-36-42-36 M36X2 M42X2 M36X2 25 30 25
