1. Definition of BSPP Hydraulic hose fitting, normally we called BSP which is BS 5200 Standard with BSPP thread also the same to ISO8434-6 standard connection, but standard of hose fitting with 60 deg flare end is ISO 12151-6. It is a connection to BSP 60 deg cone adapters.

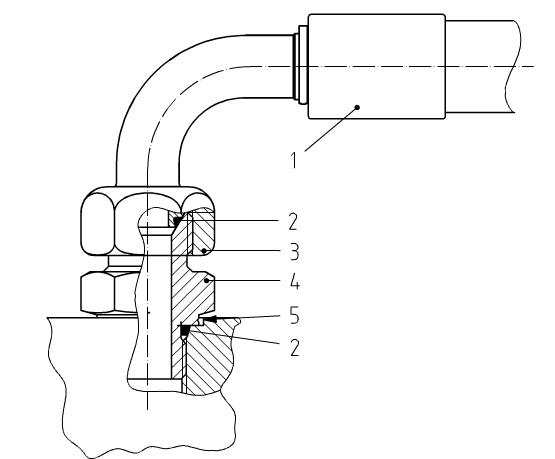

2. Method of BSP hydraulic hose coupling, as no. 1 is hydraulic hose fitting with crimped hose ferrule, 2 is o-ring seal, 3 is Nut, 4 is straight stud connector conforming to ISO 8434-6 , 5 is r port conforming to ISO 6149-1.
3. Two types of BSP hydraulic hose fittings:
 |  |

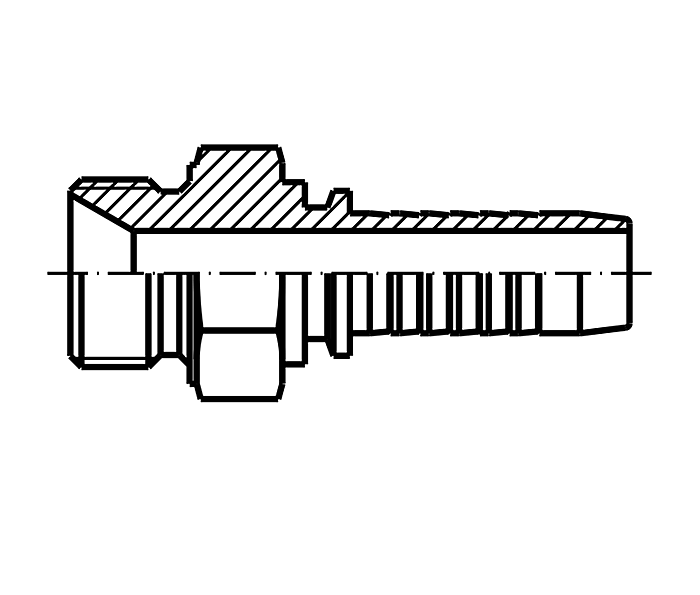

| Male 60 deg hose fitting | Female 60 deg seat hose fitting |
1. BSP HOSE FITTINGS 12611
2. BSP HOSE FITTINGS 22611/ 22611-T
3. BSP HOSE FITTINGS 22691/ 22691-W
