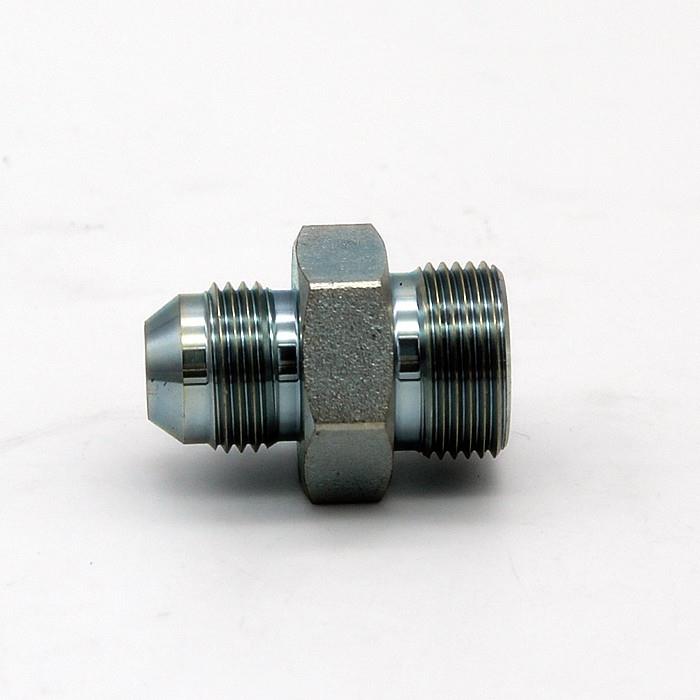

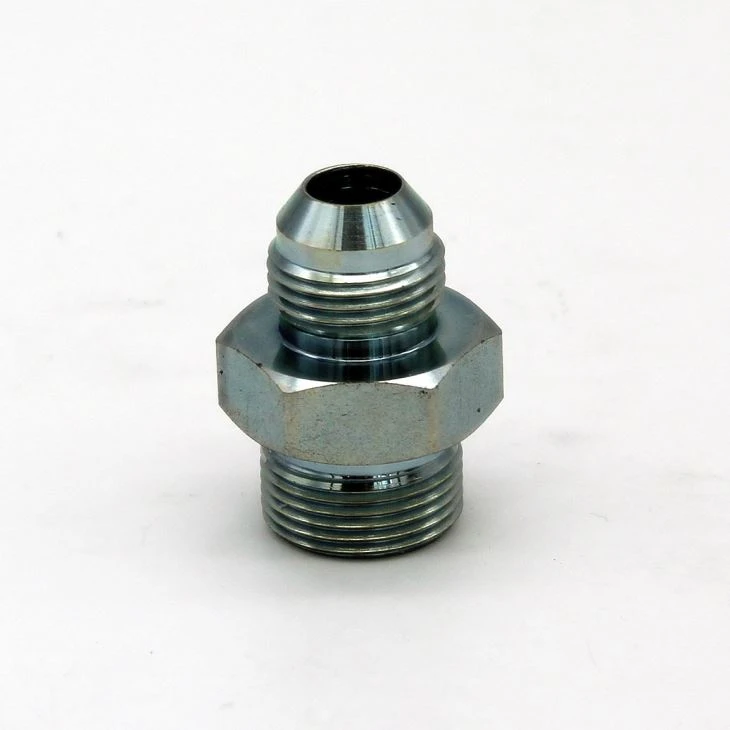

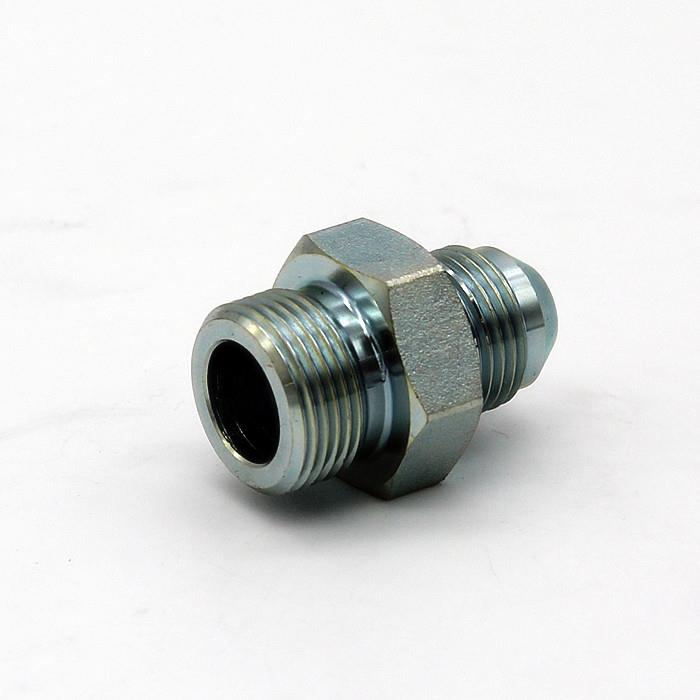

1. Definition of JIC Fittings Studs, JIC 37 deg flared tube end or 37 deg flared female swivel end is according to SAE J514 and ISO 8434-2 standards, Stud end is depended on matched port styles such as Metric ports, BSPP ports, Taper thread ports.
2. Methods of stud connector as DIN Fittings Port Styles showed, please click the link. Styles connect as following: Tube to Metric Port ISO 9974 (DIN 3853) and ISO 6149; Tube to BSPP Port ISO 1179, Tube to UNF port ISO SAE J1926 (ISO 11926), Tube to Japanese BSPP port JIS B2351; Tube to NPT Port ANSI/ASME B 1.20.1; Tube to BSPT Port ISO 7/BS 21/DIN 2999-1.
3. Dimensions of SAE O-ring Boss Port ISO 11926:

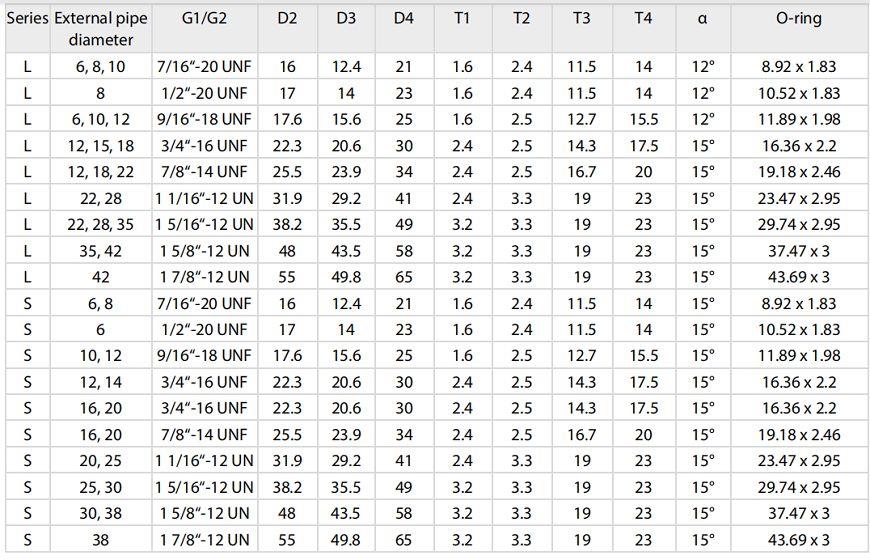

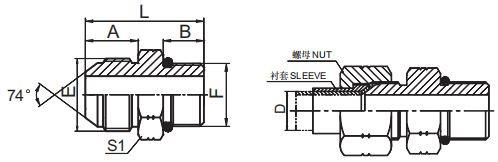

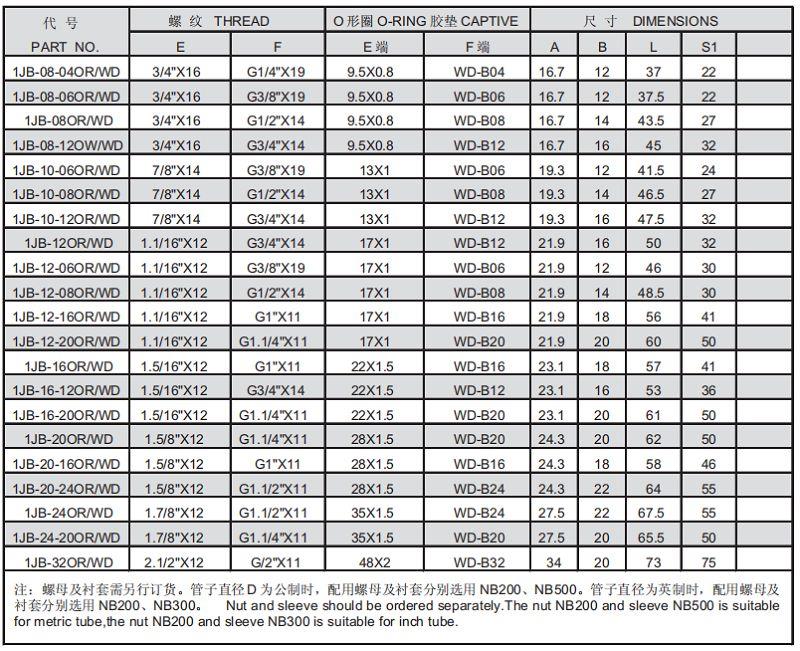

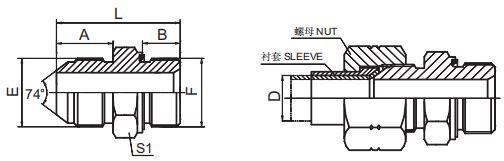

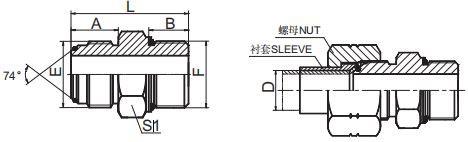

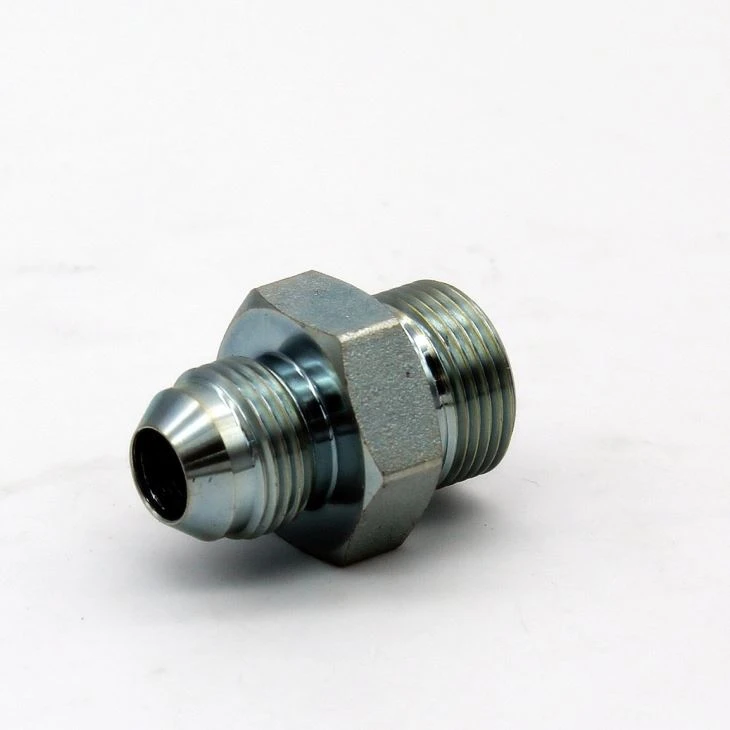

1. JIC Tube Fittings Straight Stud Connector 1JB-WD
Male 37°Flare /BSPP ED Seal

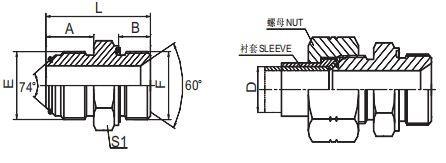

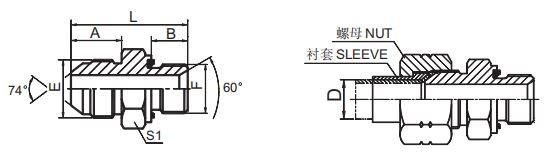

2. JIC Tube Fittings Straight Stud Connector 1JB-OR/WD
Male 37°Flare O-ring /BSPP ED Seal

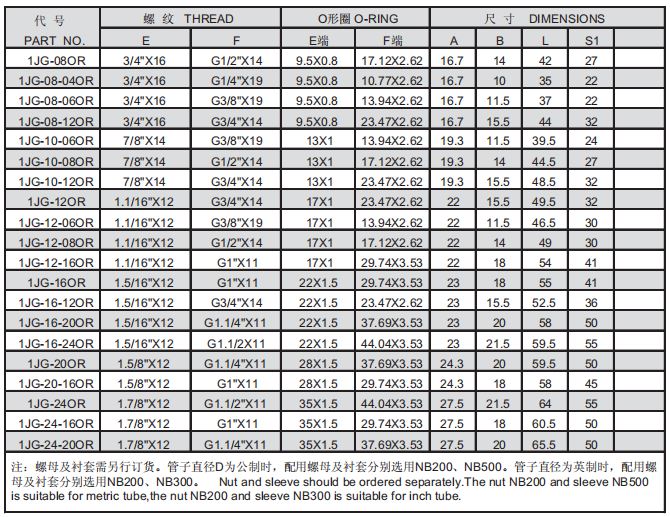

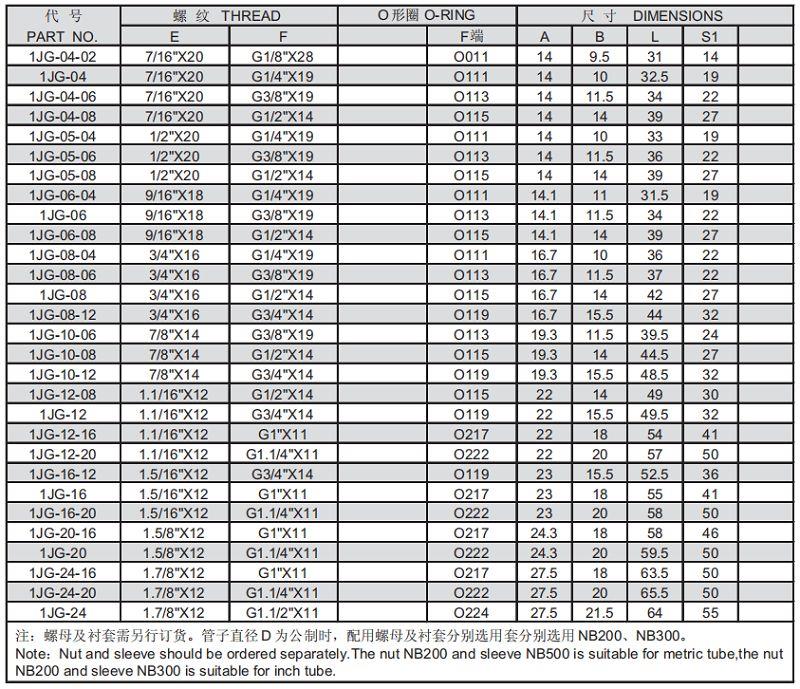

3. JIC Tube Fittings Straight Stud Connector 1JG
Male 37°Flare /BSPP O-ring+Retaining ring Seal

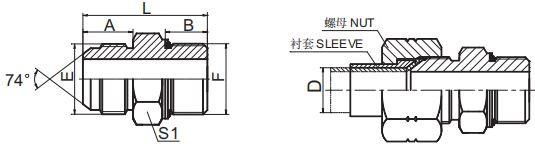

4. JIC Tube Fittings Straight Stud Connector 1JG-OR
Male 37°Flare O-ring /BSPP O-ring+Retaining ring Seal

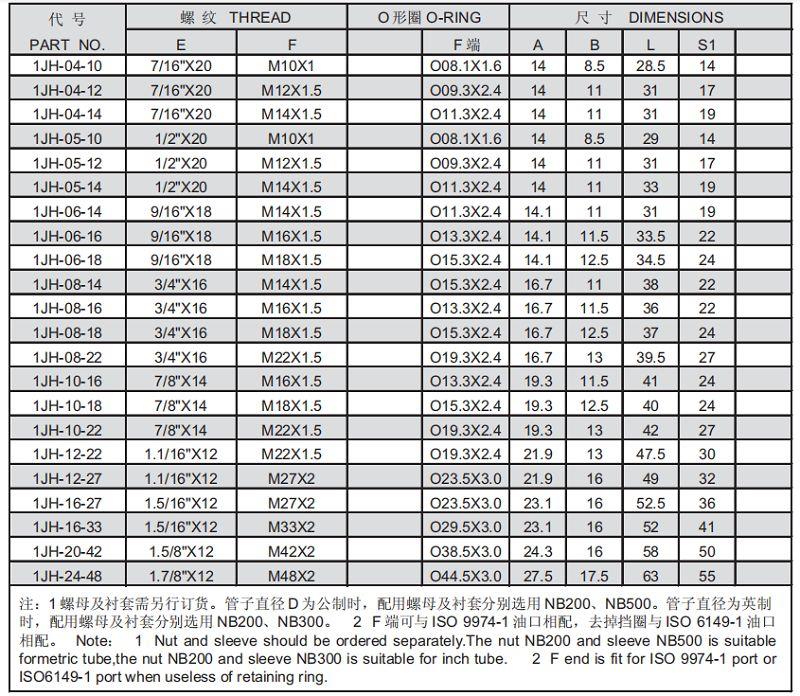

5. JIC Tube Fittings Straight Stud Connector 1JH
Male 37°Flare /Metric O-ring Seal ISO 6149-1 or ISO 9974-1 O-ring + Retaining ring

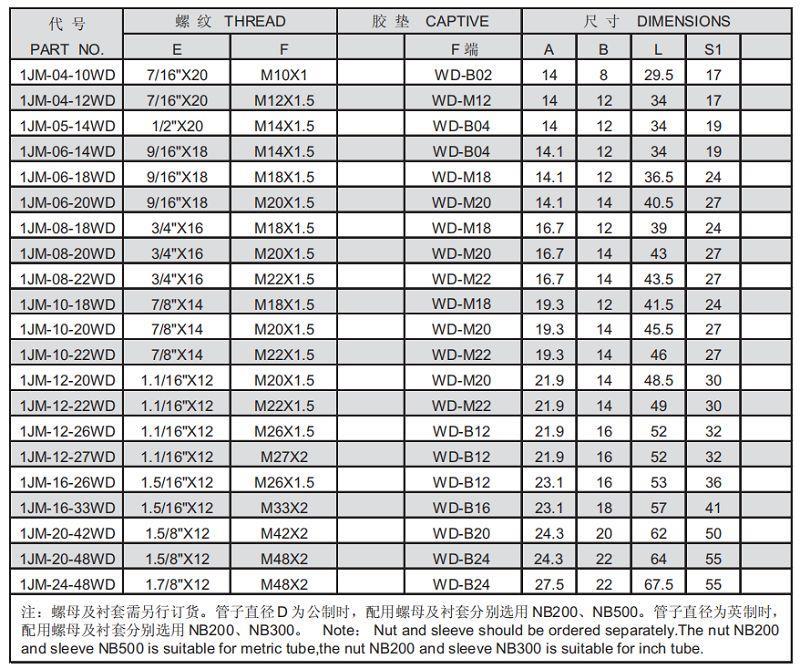

6. JIC Tube Fittings Straight Stud Connector1JM-WD
Male 37°Flare /Metric ED Seal

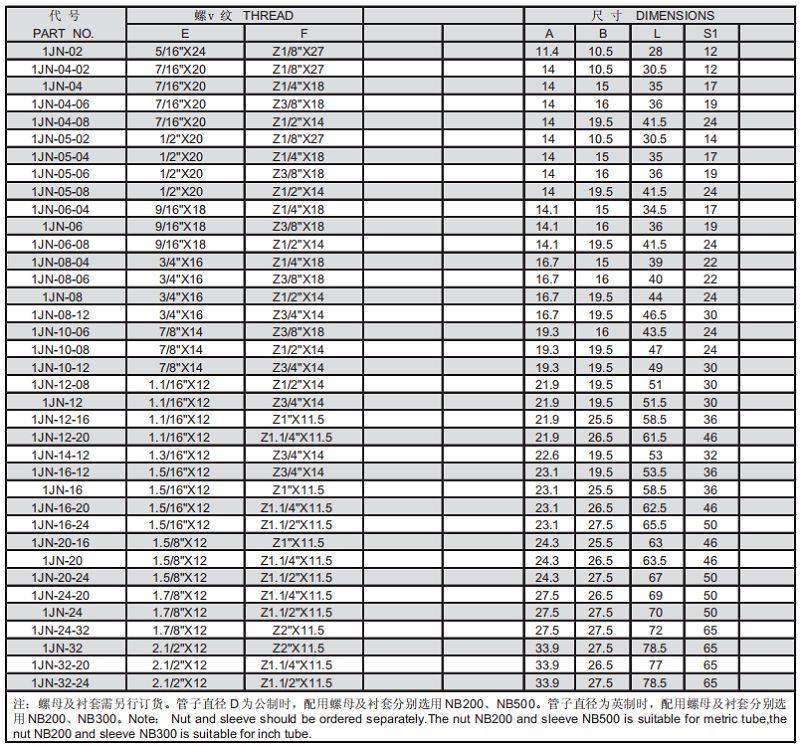

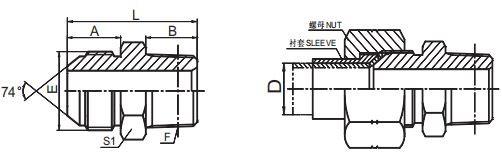

7. JIC Tube Fittings NPT Stud Connector 1JN
Male 37°Flare /NPT stud

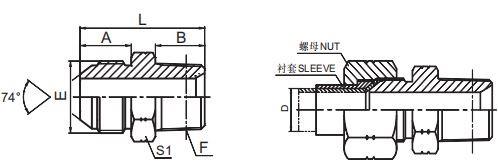

8. JIC Tube Fittings NPT Stud Connector 1JO
Male 37°Flare /SAE O-ring Boss ISO 11926-3

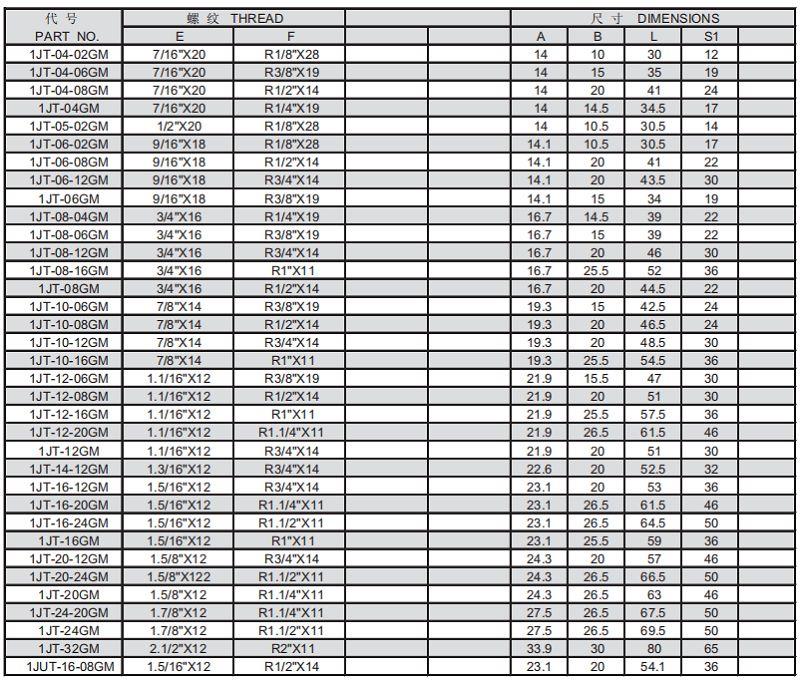

9. JIC Tube Fittings NPT Stud Connector 1JT-GM
Male 37°Flare /BSP stud
