1. Definition: JIC Swivel Female end is crimped nut assembly end on the body of connector, it is also according to SAE J514and ISO 8434-2:2005. It is flared tube end or male stud end to Swivel fittings type.
2. Methods of Connection: JIC swivel female connector will mate with male 37 deg tube end as below.

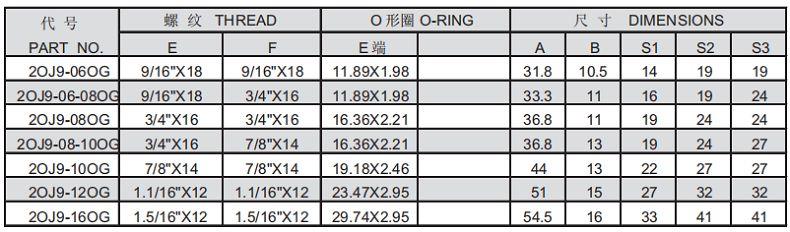

3. Dimensions of Swivel Female End as per SAE J1453 as follow:
1. JIC Tube Fittings Straight Tube to Swivel 2J
37 deg flare end/ 37 deg flare Swivel
2. JIC Tube Fittings Swivel Straight 2GJ
BSPP thread O-ring+retaining ring/ 37 deg flare Swivel
3. JIC Tube Fittings Swivel Elbow 2GJ9
BSPP thread O-ring+retaining ring/ 37 deg flare Swivel
4. JIC Tube Fittings Swivel 45 deg Elbow 2J4
Male 37 deg flare connector/ 37 deg flare Swivel
5. JIC Tube Fittings Swivel Elbow 2J9
Male 37 deg flare connector/ 37 deg flare Swivel
6. JIC Tube Fittings NPT to Swivel Straight 2NJ
Male NPT port connector/ 37 deg flare Swivel
7. JIC Tube Fittings NPT to Swivel 45 deg Elbow 2NJ4
Male NPT port connector/ 37 deg flare Swivel
8. JIC Tube Fittings NPT to Swivel Elbow 2NJ9
Male NPT port connector/ 37 deg flare Swivel
9. JIC Tube Fittings ORB to Swivel Straight 2OJ
SAE O-ring boss port connector/ 37 deg flare Swivel
10. JIC Tube Fittings ORB to Swivel Elbow 2OJ9
SAE O-ring boss port connector/ 37 deg flare Swivel
11. JIC Tube Fittings BSPT to Swivel Straight 2TJ-SP
BSPT port connector/ 37 deg flare Swivel
12. JIC Tube Fittings BSPT to Swivel Elbow 2TJ9-SP
BSPT port connector/ 37 deg flare Swivel
