Product category: JIC hydraulic fitting adapters for tube connection of fluid power
Product Standard: ISO 8434-2, SAE J514.
Material: carbon steel, stainless steel or copper alloy.
JIC tube end to other end connection as follow: BSP Captive seal E, G, H types, ISO 6149 series fittings, JIS B2351 fittings, ISO 11926 and SAE J1926 ORB fittings, DIN 3852 and ISO 1179 fittings, ISO 9974 fittings etc.

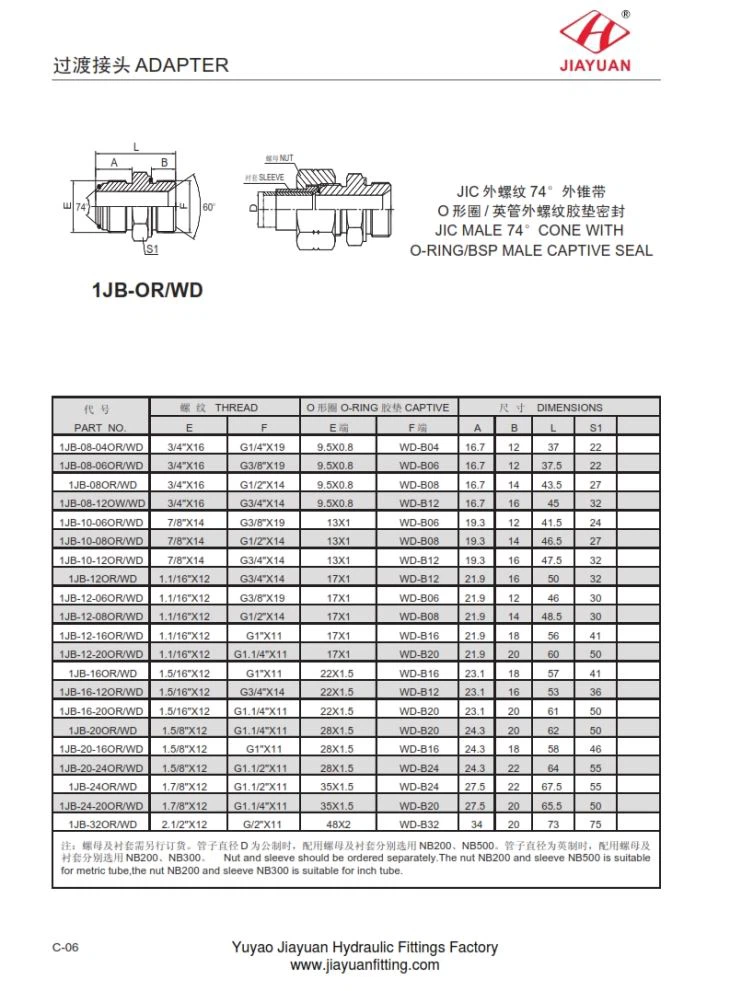

1JB-OR/WD JIC MALE 74°CONE WITH O-RING/BSP MALE CAPTIVE SEAL Dimension chart as follows:
PART NO. | THREAD | O-RING CAPTIVE | DIMENSIONS | ||||||
E | F | E | F | A | B | L | S1 | ||
1JB-08-04OR/WD | 3/4"X16 | G1/4"X19 | 9.5X0.8 | WD-B04 | 16.7 | 12 | 37 | 22 | |
1JB-08-06OR/WD | 3/4"X16 | G3/8"X19 | 9.5X0.8 | WD-B06 | 16.7 | 12 | 37.5 | 22 | |
1JB-08OR/WD | 3/4"X16 | G1/2"X14 | 9.5X0.8 | WD-B08 | 16.7 | 14 | 43.5 | 27 | |
1JB-08-12OW/WD | 3/4"X16 | G3/4"X14 | 9.5X0.8 | WD-B12 | 16.7 | 16 | 45 | 32 | |
1JB-10-06OR/WD | 7/8"X14 | G3/8"X19 | 13X1 | WD-B06 | 19.3 | 12 | 41.5 | 24 | |
1JB-10-08OR/WD | 7/8"X14 | G1/2"X14 | 13X1 | WD-B08 | 19.3 | 14 | 46.5 | 27 | |
1JB-10-12OR/WD | 7/8"X14 | G3/4"X14 | 13X1 | WD-B12 | 19.3 | 16 | 47.5 | 32 | |
1JB-12OR/WD | 1.1/16"X12 | G3/4"X14 | 17X1 | WD-B12 | 21.9 | 16 | 50 | 32 | |
1JB-12-06OR/WD | 1.1/16"X12 | G3/8"X19 | 17X1 | WD-B06 | 21.9 | 12 | 46 | 30 | |
1JB-12-08OR/WD | 1.1/16"X12 | G1/2"X14 | 17X1 | WD-B08 | 21.9 | 14 | 48.5 | 30 | |
1JB-12-16OR/WD | 1.1/16"X12 | G1"X11 | 17X1 | WD-B16 | 21.9 | 18 | 56 | 41 | |
1JB-12-20OR/WD | 1.1/16"X12 | G1.1/4"X11 | 17X1 | WD-B20 | 21.9 | 20 | 60 | 50 | |
1JB-16OR/WD | 1.5/16"X12 | G1"X11 | 22X1.5 | WD-B16 | 23.1 | 18 | 57 | 41 | |
1JB-16-12OR/WD | 1.5/16"X12 | G3/4"X14 | 22X1.5 | WD-B12 | 23.1 | 16 | 53 | 36 | |
1JB-16-20OR/WD | 1.5/16"X12 | G1.1/4"X11 | 22X1.5 | WD-B20 | 23.1 | 20 | 61 | 50 | |
1JB-20OR/WD | 1.5/8"X12 | G1.1/4"X11 | 28X1.5 | WD-B20 | 24.3 | 20 | 62 | 50 | |
1JB-20-16OR/WD | 1.5/8"X12 | G1"X11 | 28X1.5 | WD-B16 | 24.3 | 18 | 58 | 46 | |
1JB-20-24OR/WD | 1.5/8"X12 | G1.1/2"X11 | 28X1.5 | WD-B24 | 24.3 | 22 | 64 | 55 | |
1JB-24OR/WD | 1.7/8"X12 | G1.1/2"X11 | 35X1.5 | WD-B24 | 27.5 | 22 | 67.5 | 55 | |
1JB-24-20OR/WD | 1.7/8"X12 | G1.1/4"X11 | 35X1.5 | WD-B20 | 27.5 | 20 | 65.5 | 50 | |
1JB-32OR/WD | 2.1/2"X12 | G/2"X11 | 48X2 | WD-B32 | 34 | 20 | 73 | 75 | |
