1. Definition: BSP Swivel Female end is crimped nut assembly end on the body of connector, it is also according to ISO 8434-6:2007 and BSP 5200. It is the female swivel internal 60 deg seat end to hose assembly or adapters.
2. Methods of Connection: Two styles of female swivel end: one is 60 deg seat metal surface, another one is 60 deg seat metal with o-ring, will mate with male BSP 60 deg cone end as following:
(3 is O-ring plus 60 deg seat Seal) (Only 60 deg seat Seal)
3. Details of ISO 8434-6: swivel female end with O-ring sealing nipple (style A)
swivel female connector (style B)
Style A
Style B
Please indicate style plus A or B for your need female end when you order.
4. Dimensions of Swivel Female End as per ISO 8434-6 as follow:
1. BSP Adapter Swivel Straight 2B
60 deg cone/60 deg seat Swivel A style or B style
2. BSP Adapter Swivel 45°Elbow 2B4
60 deg cone/60 deg seat Swivel
3. BSP Adapter Swivel Elbow 2B9
60 deg cone /60 deg seat Swivel A style or B style
 |  |
4. BSP Adapter Swivel Straight 2B-WD
60 deg cone with ED /60 deg seat Swivel A style or B style
 |  |
5. BSP Adapter Swivel Straight 2GB
Male BSP stud O-ring+Retaining ring /60 deg seat Swivel A style or B style
6. BSP Adapter Swivel Straight 2HB
Male Metric stud O-ring+Retaining ring or O-ring /60 deg seat Swivel A style or B style
Note: O-ring + Retaining Ring for ISO 9974-1 Port, O-ring for ISO 6149-1 Port. Please indicate your Oil port standard.
7. BSP Adapter Swivel Straight 2NB
Male NPT port /60 deg seat Swivel A style or B style

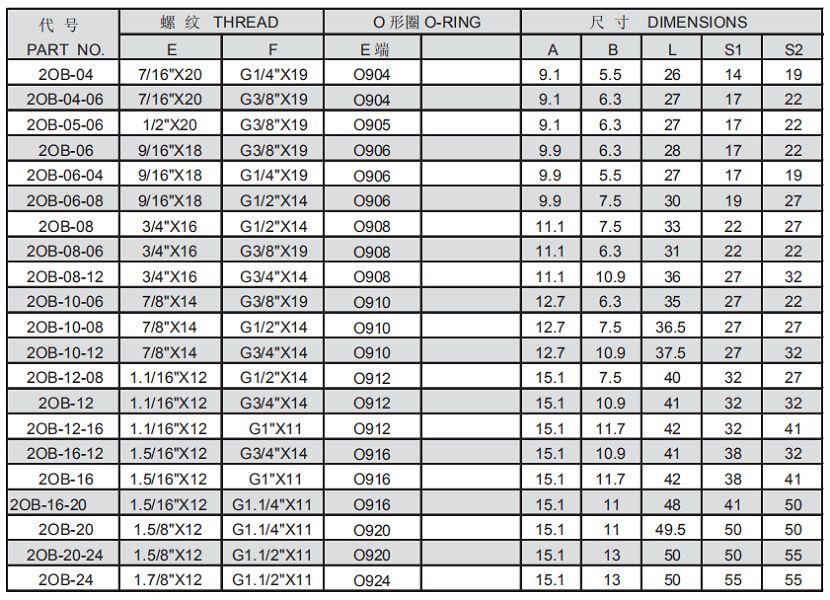

8. BSP Adapter Swivel Straight 2OB
SAE O-ring Boss port /60 deg seat Swivel A style or B style

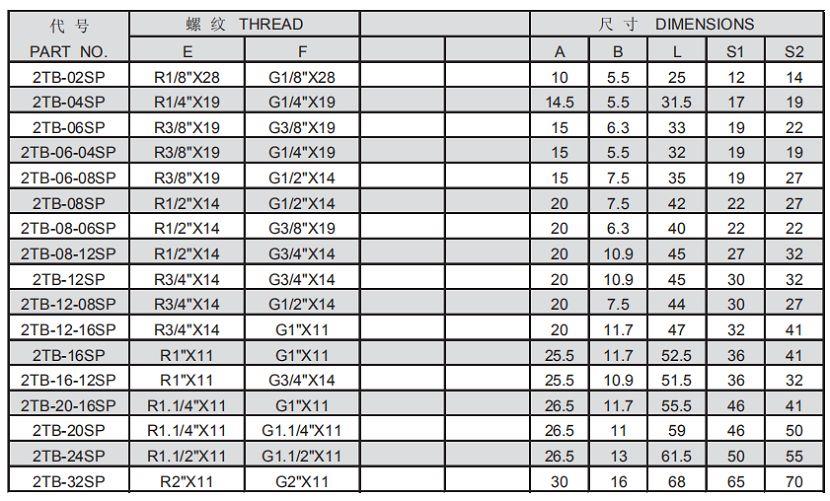

9. BSP Adapter Swivel Straight 2TB-SP
BSPT end /60 deg seat Swivel A style or B style
