Product Types: Metric Bite Type Tube Fittings- Tube to stud connector
Industry Standards: DIN 2353, DIN 3861, ISO 8434-1, DIN 3852-2, ISO 1179-1
Connection E to F style: 24°cone Union tube fittings
Shape: Elbow, 90 degree elbow,60 degree elbow etc.
Working pressure: 16-63 Mpa
Fittings Material: Brass; Carbon steel; Stainless Steel
Application: Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation

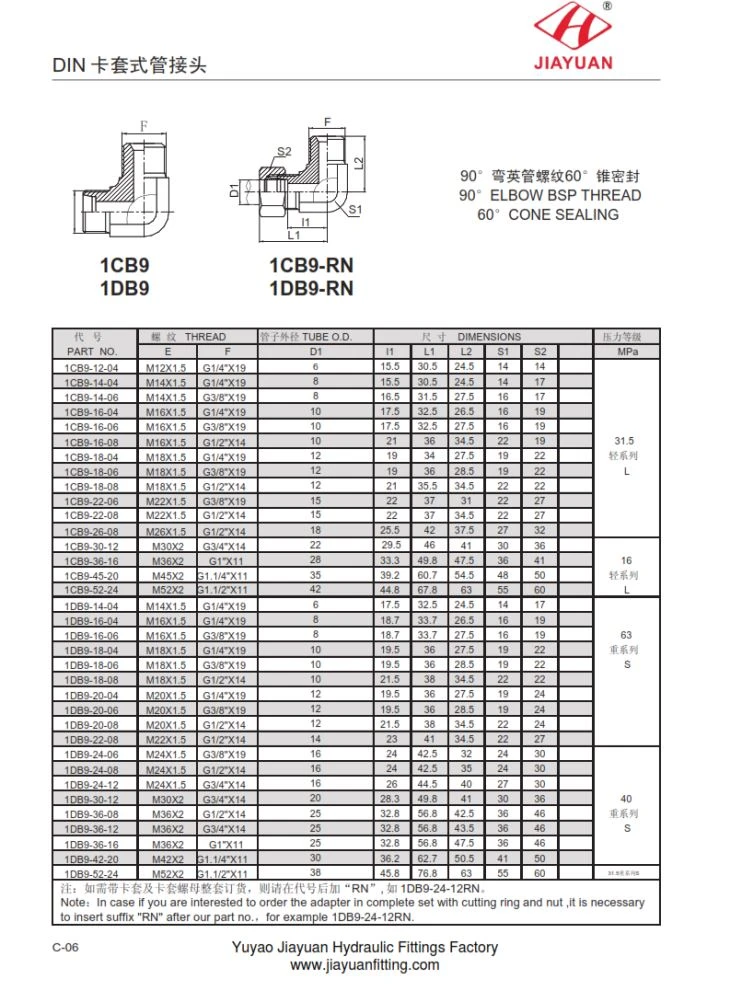

1CB9 1DB9-RN ELBOW union BSP cone tube fittings DIN 2353 Dimension Size table chart as follows
PART NO. THREAD TUBE O.D.
E F D1
1CB9-12-04 M12X1.5 G1/4"X19 6
1CB9-14-04 M14X1.5 G1/4"X19 8
1CB9-14-06 M14X1.5 G3/8"X19 8
1CB9-16-04 M16X1.5 G1/4"X19 10
1CB9-16-06 M16X1.5 G3/8"X19 10
1CB9-16-08 M16X1.5 G1/2"X14 10
1CB9-18-04 M18X1.5 G1/4"X19 12
1CB9-18-06 M18X1.5 G3/8"X19 12
1CB9-18-08 M18X1.5 G1/2"X14 12
1CB9-22-06 M22X1.5 G3/8"X19 15
1CB9-22-08 M22X1.5 G1/2"X14 15
1CB9-26-08 M26X1.5 G1/2"X14 18
1CB9-30-12 M30X2 G3/4"X14 22
1CB9-36-16 M36X2 G1"X11 28
1CB9-45-20 M45X2 G1.1/4"X11 35
1CB9-52-24 M52X2 G1.1/2"X11 42
1DB9-14-04 M14X1.5 G1/4"X19 6
1DB9-16-04 M16X1.5 G1/4"X19 8
1DB9-16-06 M16X1.5 G3/8"X19 8
1DB9-18-04 M18X1.5 G1/4"X19 10
1DB9-18-06 M18X1.5 G3/8"X19 10
1DB9-18-08 M18X1.5 G1/2"X14 10
1DB9-20-04 M20X1.5 G1/4"X19 12
1DB9-20-06 M20X1.5 G3/8"X19 12
1DB9-20-08 M20X1.5 G1/2"X14 12
1DB9-22-08 M22X1.5 G1/2"X14 14
1DB9-24-06 M24X1.5 G3/8"X19 16
1DB9-24-08 M24X1.5 G1/2"X14 16
1DB9-24-12 M24X1.5 G3/4"X14 16
1DB9-30-12 M30X2 G3/4"X14 20
1DB9-36-08 M36X2 G1/2"X14 25
1DB9-36-12 M36X2 G3/4"X14 25
1DB9-36-16 M36X2 G1"X11 25
1DB9-42-20 M42X2 G1.1/4"X11 30
1DB9-52-24 M52X2 G1.1/2"X11 38
