Product Types: Metric Thread Type Tube Fittings-Tube to weld connector
Industry Standards: DIN 2353, ISO 8434-1
Connection E to F style: 24°cone end to Bulkhead, swivel with o-ring, weld-on/weld-in, stud, reducer
Shape: Straight etc.
Working pressure: 16-63 Mpa
Fittings Material:Brass; Carbon steel; Stainless Steel
Application:Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation

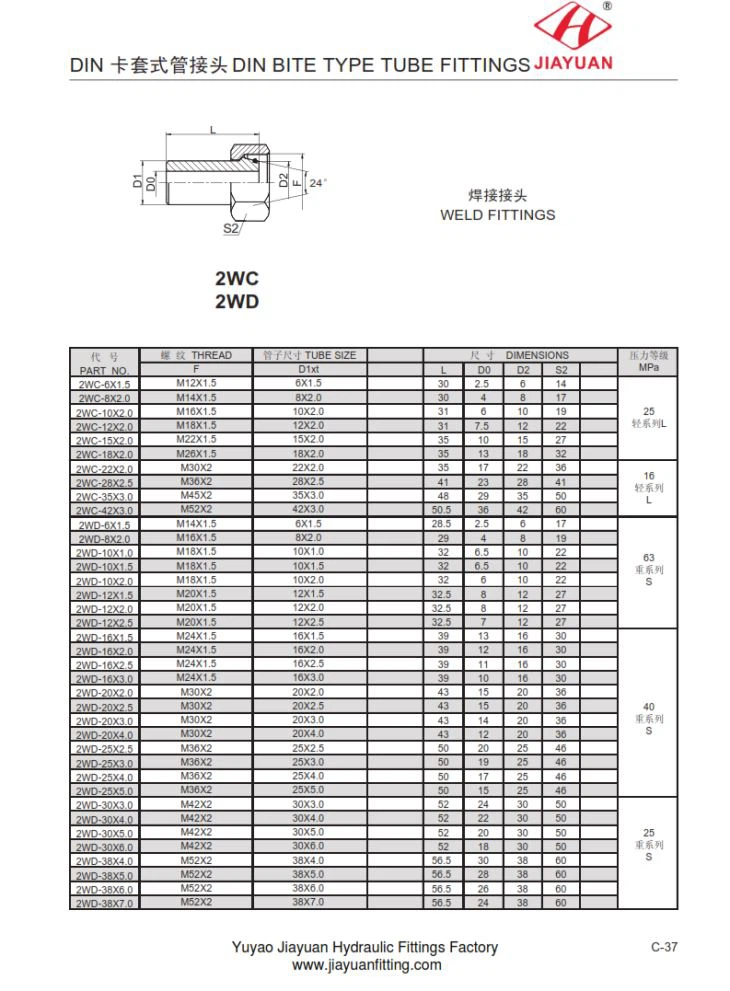

PART NO. THREAD TUBE SIZE
F D1xt
2WC-6X1.5 M12X1.5 6X1.5
2WC-8X2.0 M14X1.5 8X2.0
2WC-10X2.0 M16X1.5 10X2.0
2WC-12X2.0 M18X1.5 12X2.0
2WC-15X2.0 M22X1.5 15X2.0
2WC-18X2.0 M26X1.5 18X2.0
2WC-22X2.0 M30X2 22X2.0
2WC-28X2.5 M36X2 28X2.5
2WC-35X3.0 M45X2 35X3.0
2WC-42X3.0 M52X2 42X3.0
2WD-6X1.5 M14X1.5 6X1.5
2WD-8X2.0 M16X1.5 8X2.0
2WD-10X1.0 M18X1.5 10X1.0
2WD-10X1.5 M18X1.5 10X1.5
2WD-10X2.0 M18X1.5 10X2.0
2WD-12X1.5 M20X1.5 12X1.5
2WD-12X2.0 M20X1.5 12X2.0
2WD-12X2.5 M20X1.5 12X2.5
2WD-16X1.5 M24X1.5 16X1.5
2WD-16X2.0 M24X1.5 16X2.0
2WD-16X2.5 M24X1.5 16X2.5
2WD-16X3.0 M24X1.5 16X3.0
2WD-20X2.0 M30X2 20X2.0
2WD-20X2.5 M30X2 20X2.5
2WD-20X3.0 M30X2 20X3.0
2WD-20X4.0 M30X2 20X4.0
2WD-25X2.5 M36X2 25X2.5
2WD-25X3.0 M36X2 25X3.0
2WD-25X4.0 M36X2 25X4.0
2WD-25X5.0 M36X2 25X5.0
2WD-30X3.0 M42X2 30X3.0
2WD-30X4.0 M42X2 30X4.0
2WD-30X5.0 M42X2 30X5.0
2WD-30X6.0 M42X2 30X6.0
2WD-38X4.0 M52X2 38X4.0
2WD-38X5.0 M52X2 38X5.0
2WD-38X6.0 M52X2 38X6.0
2WD-38X7.0 M52X2 38X7.0
