Product Types: Metric Bite Type Tube Fittings- Tube to weld connector
Industry Standards: DIN 2353
Connection E to F style: 24°cone end to Bulkhead
Shape: Elbow, 90 degree elbow, etc.
Working pressure: 16-63 Mpa
Fittings Material: Brass; Carbon steel; Stainless Steel
Application: Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation

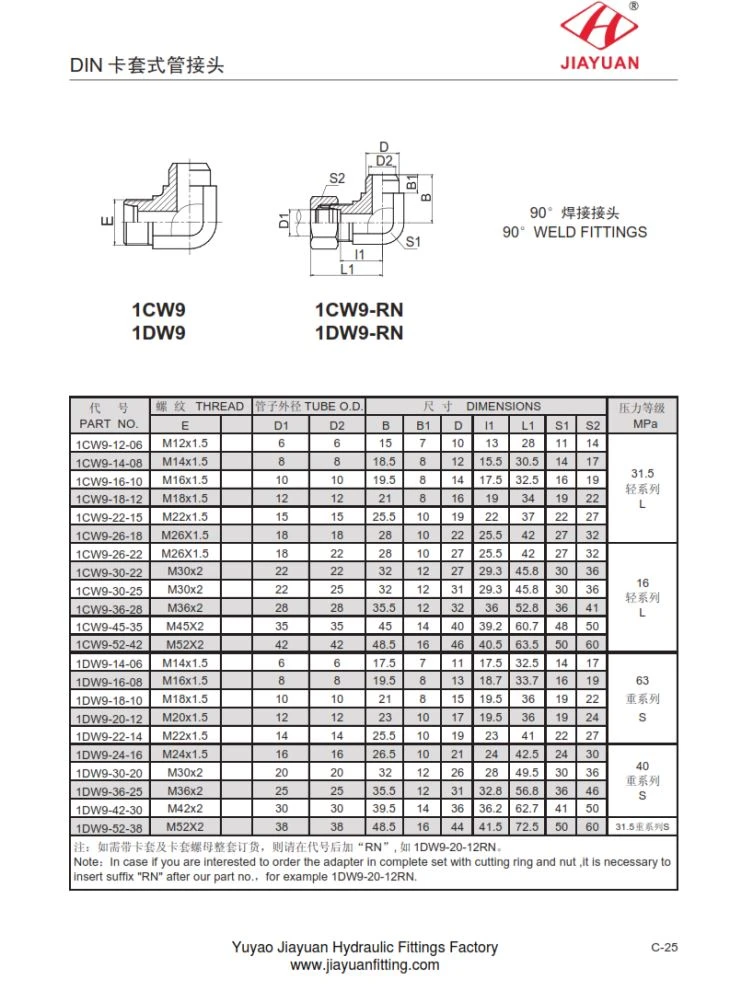

1CW9 1DW9-RN weld tube fittings DIN2353 Dimension Size table chart as follows
PART NO. THREAD TUBE O.D.
E D1 D2
1CW9-12-06 M12x1.5 6 6
1CW9-14-08 M14x1.5 8 8
1CW9-16-10 M16x1.5 10 10
1CW9-18-12 M18x1.5 12 12
1CW9-22-15 M22x1.5 15 15
1CW9-26-18 M26X1.5 18 18
1CW9-26-22 M26X1.5 18 22
1CW9-30-22 M30x2 22 22
1CW9-30-25 M30x2 22 25
1CW9-36-28 M36x2 28 28
1CW9-45-35 M45X2 35 35
1CW9-52-42 M52X2 42 42
1DW9-14-06 M14x1.5 6 6
1DW9-16-08 M16x1.5 8 8
1DW9-18-10 M18x1.5 10 10
1DW9-20-12 M20x1.5 12 12
1DW9-22-14 M22x1.5 14 14
1DW9-24-16 M24x1.5 16 16
1DW9-30-20 M30x2 20 20
1DW9-36-25 M36x2 25 25
1DW9-42-30 M42x2 30 30
1DW9-52-38 M52X2 38 38
