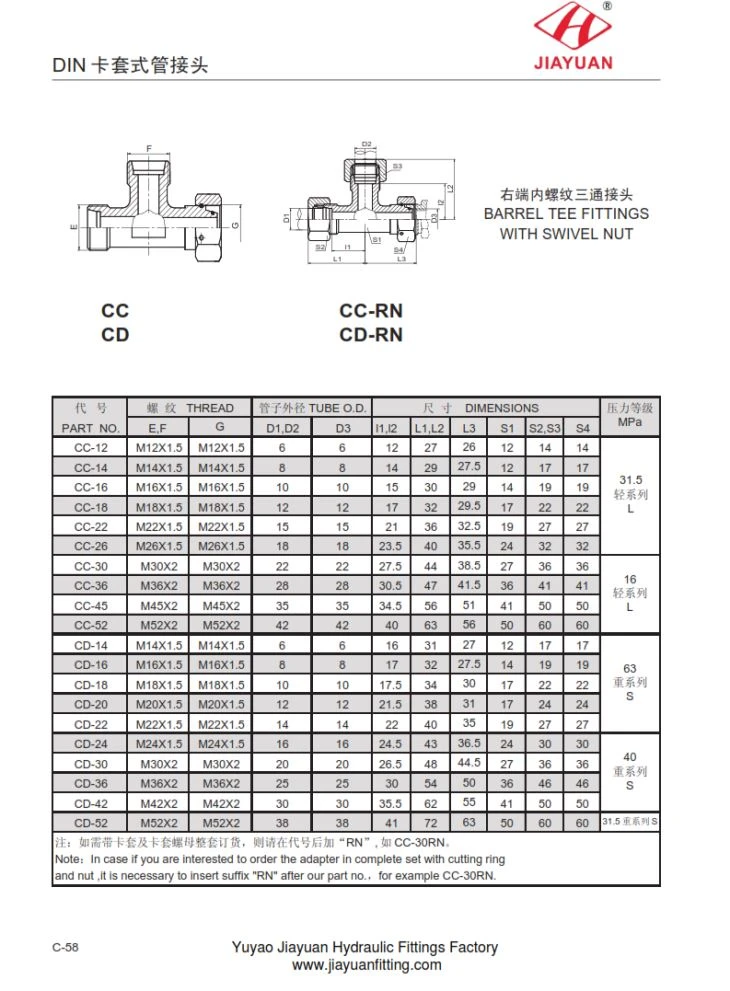

Swivel Nut Barrel Tee Tube Fittings
Industry Standards: DIN 2353, ISO 8434-1,DIN 3861
Shape: Tee etc.
Working pressure: 16-63 Mpa
Fittings Material:Brass; Carbon steel; Stainless Steel
Application:Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation
PART NO. THREAD TUBE O.D.
E,F G D1,D2 D3
CC-12 M12X1.5 M12X1.5 6 6
CC-14 M14X1.5 M14X1.5 8 8
CC-16 M16X1.5 M16X1.5 10 10
CC-18 M18X1.5 M18X1.5 12 12
CC-22 M22X1.5 M22X1.5 15 15
CC-26 M26X1.5 M26X1.5 18 18
CC-30 M30X2 M30X2 22 22
CC-36 M36X2 M36X2 28 28
CC-45 M45X2 M45X2 35 35
CC-52 M52X2 M52X2 42 42
CD-14 M14X1.5 M14X1.5 6 6
CD-16 M16X1.5 M16X1.5 8 8
CD-18 M18X1.5 M18X1.5 10 10
CD-20 M20X1.5 M20X1.5 12 12
CD-22 M22X1.5 M22X1.5 14 14
CD-24 M24X1.5 M24X1.5 16 16
CD-30 M30X2 M30X2 20 20
CD-36 M36X2 M36X2 25 25
CD-42 M42X2 M42X2 30 30
CD-52 M52X2 M52X2 38 38
