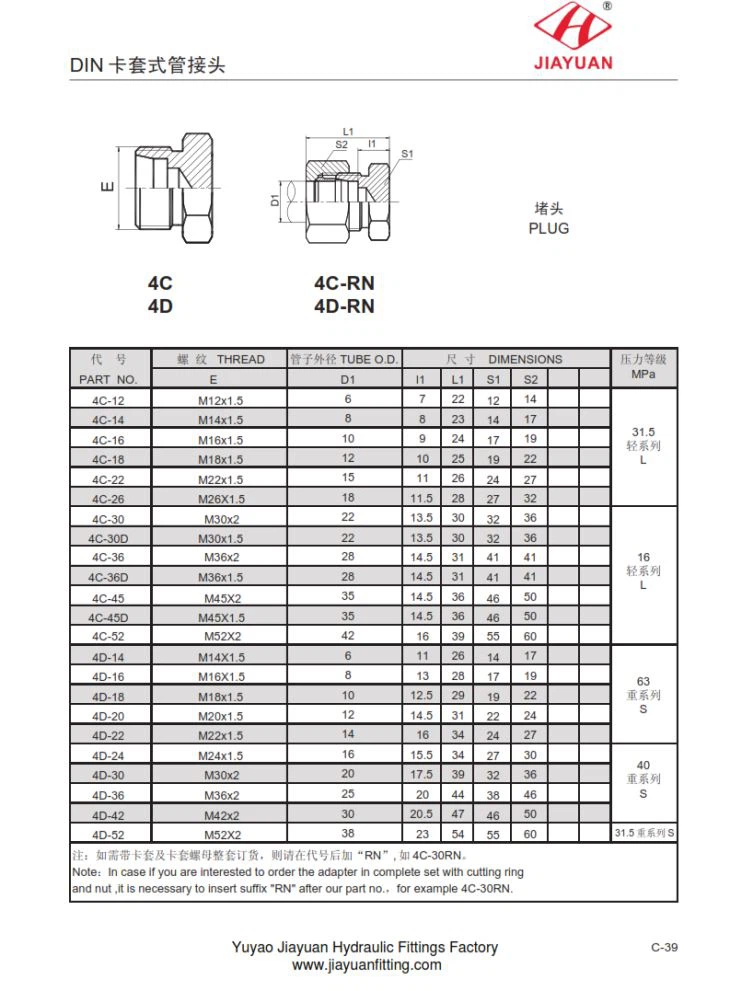

Metric plug tube fittings

Product Types: Metric Thread Type Tube Fittings-Plug type

Industry Standards: DIN 2353, ISO 8434-1,DIN 3861

Connection E to F style: 24°cone end to Bulkhead, swivel with o-ring, weld-on/weld-in, stud, reducer

Shape: Straight etc.

Working pressure: 16-63 Mpa

Fittings Material:Brass; Carbon steel; Stainless Steel

Application:Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation

PART  NO. THREAD TU

E D1

4C-12 M12x1.5 6

4C-14 M14x1.5 8

4C-16 M16x1.5 10

4C-18 M18x1.5 12

4C-22 M22x1.5 15

4C-26 M26X1.5 18

4C-30 M30x2 22

4C-30D M30x1.5 22

4C-36 M36x2 28

4C-36D M36x1.5 28

4C-45 M45X2 35

4C-45D M45X1.5 35

4C-52 M52X2 42

4D-14 M14X1.5 6

4D-16 M16X1.5 8

4D-18 M18x1.5 10

4D-20 M20x1.5 12

4D-22 M22x1.5 14

4D-24 M24x1.5 16

4D-30 M30x2 20

4D-36 M36x2 25

4D-42 M42x2 30

4D-52 M52X2 38
