Product Types: Metric Thread Type Tube Fittings-Tube to female connector
Industry Standards: DIN 2353, ISO 8434-1,DIN 3861
Connection E to F style: 24°cone end to Bulkhead, swivel with o-ring, weld-on/weld-in, stud, reducer
Shape: Straight etc.
Working pressure: 16-63 Mpa
Fittings Material:Brass; Carbon steel; Stainless Steel
Application:Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation

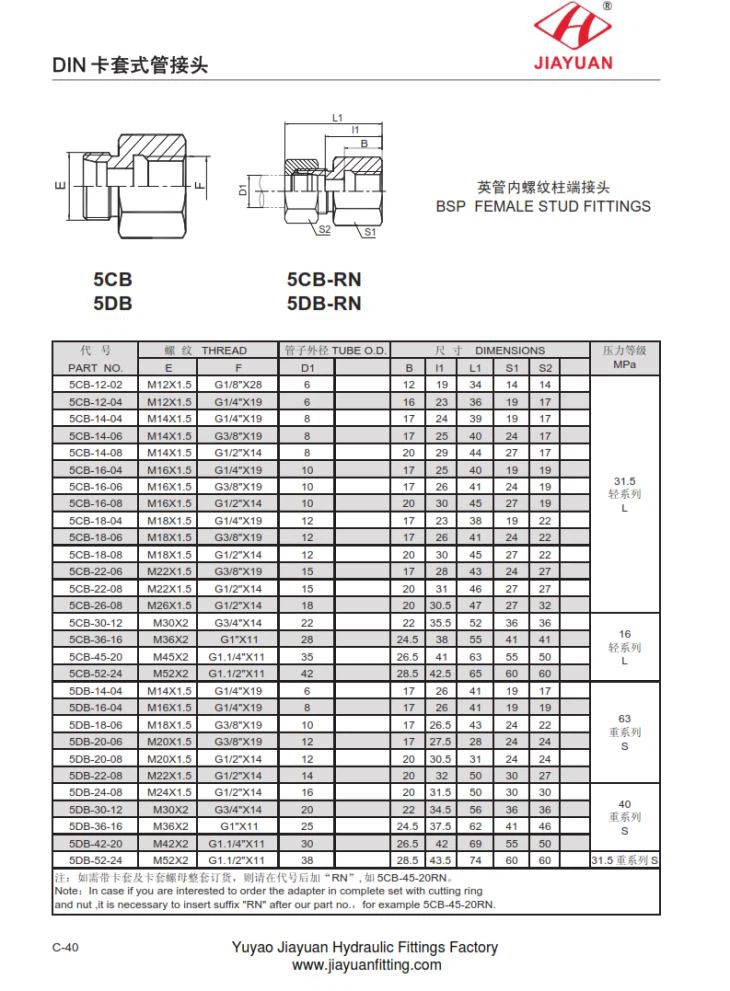

PART NO. THREAD TU
E F D1
5CB-12-02 M12X1.5 G1/8"X28 6
5CB-12-04 M12X1.5 G1/4"X19 6
5CB-14-04 M14X1.5 G1/4"X19 8
5CB-14-06 M14X1.5 G3/8"X19 8
5CB-14-08 M14X1.5 G1/2"X14 8
5CB-16-04 M16X1.5 G1/4"X19 10
5CB-16-06 M16X1.5 G3/8"X19 10
5CB-16-08 M16X1.5 G1/2"X14 10
5CB-18-04 M18X1.5 G1/4"X19 12
5CB-18-06 M18X1.5 G3/8"X19 12
5CB-18-08 M18X1.5 G1/2"X14 12
5CB-22-06 M22X1.5 G3/8"X19 15
5CB-22-08 M22X1.5 G1/2"X14 15
5CB-26-08 M26X1.5 G1/2"X14 18
5CB-30-12 M30X2 G3/4"X14 22
5CB-36-16 M36X2 G1"X11 28
5CB-45-20 M45X2 G1.1/4"X11 35
5CB-52-24 M52X2 G1.1/2"X11 42
5DB-14-04 M14X1.5 G1/4"X19 6
5DB-16-04 M16X1.5 G1/4"X19 8
5DB-18-06 M18X1.5 G3/8"X19 10
5DB-20-06 M20X1.5 G3/8"X19 12
5DB-20-08 M20X1.5 G1/2"X14 12
5DB-22-08 M22X1.5 G1/2"X14 14
5DB-24-08 M24X1.5 G1/2"X14 16
5DB-30-12 M30X2 G3/4"X14 20
5DB-36-16 M36X2 G1"X11 25
5DB-42-20 M42X2 G1.1/4"X11 30
5DB-52-24 M52X2 G1.1/2"X11 38
