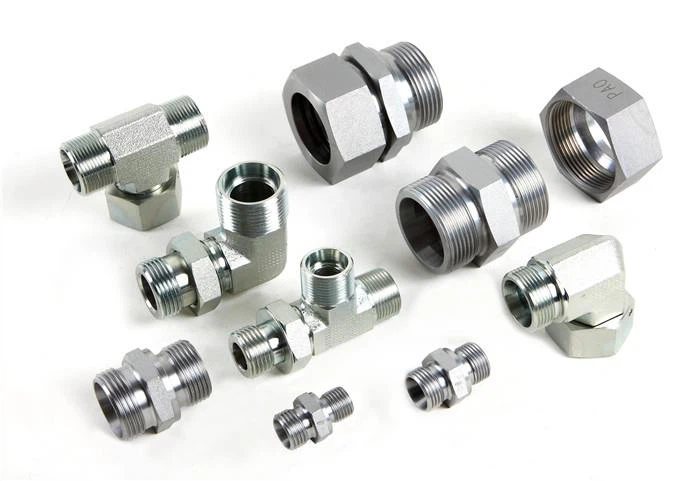

Most popular DIN Metric Hydraulic Fittings in Europe and China.
Metric hydraulic fittings is one of most popular fluid connectors, to connect hydraulic tube, hose and thread port to each other. This metric fittings is often found in construction machinery equipment as part of hydraulic systems.
Types of metric hydraulic fittings as follows:
German DIN (Deutsche Industrial Norme) standard, DIN 2353 is 24° cone tube connector, it is also flareless compression fittings.
French have two different 24° cone fittings, Millimetric is same to DIN 20078; GAZ fittings for fractional size metric tubing.
Japanese Kobelco fittings is 24° cone tube connector, with same thread size and tube size, but the longer throat depth.
Russian metric fittings showed on farm tractor from Belarus, same to DIN 20 078 fittings. The DIN fittings can replace the Russian fittings.
Chinese 24° cone with metric thread, with different pressure ratings.
ISO 8434 part 1 standardize all 24° cone compression fittings,
Shapes is available in straight, elbow,tee and cross etc.
Metric hydraulic fittings catalog require, please send us email.
Technical info of metric hydraulic fittings chart.
