Product Types: Metric Bite Type Tube Fittings- Tube to stud ED connector
Industry Standards: DIN 2353,DIN 3852-2, ISO 1179-1
Connection E to F style: 24°cone end to Bulkhead, swivel with o- ring, weld-on/weld-in, stud, reducer
Shape: Straight, etc.
Working pressure: 16-63 Mpa
Fittings Material: Brass; Carbon steel; Stainless Steel
Application: Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation

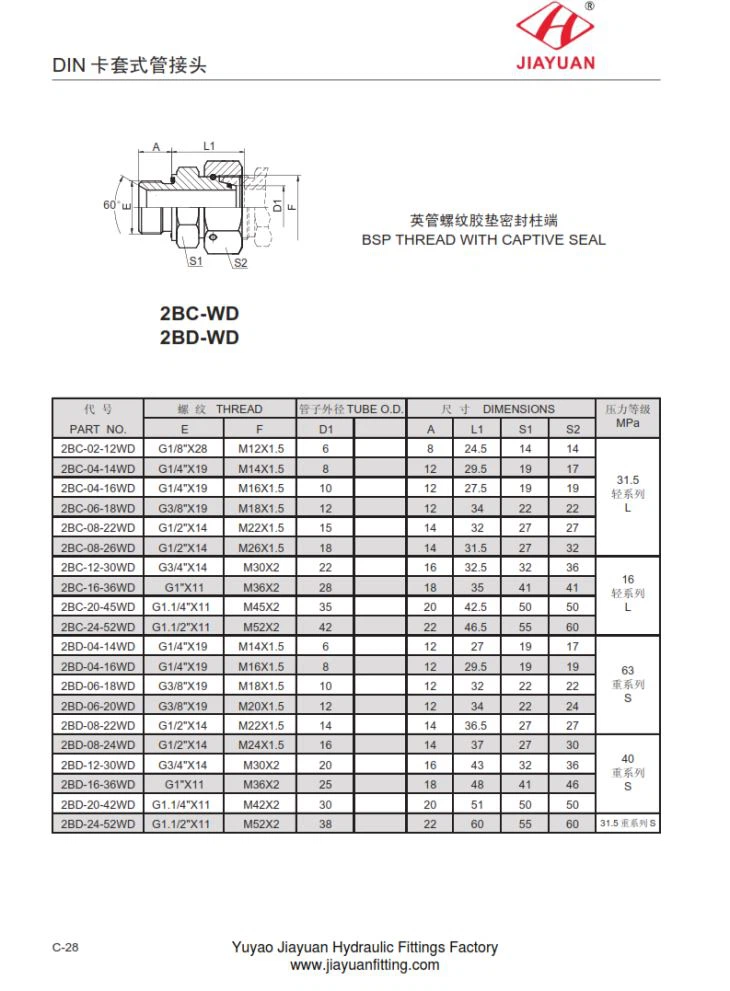

2BC 2BD-WD BSP thread with seal tube fittings DIN2353 Dimension Size table chart as follows
PART NO. THREAD TUBE O.D.
E F D1
2BC-02-12WD G1/8"X28 M12X1.5 6
2BC-04-14WD G1/4"X19 M14X1.5 8
2BC-04-16WD G1/4"X19 M16X1.5 10
2BC-06-18WD G3/8"X19 M18X1.5 12
2BC-08-22WD G1/2"X14 M22X1.5 15
2BC-08-26WD G1/2"X14 M26X1.5 18
2BC-12-30WD G3/4"X14 M30X2 22
2BC-16-36WD G1"X11 M36X2 28
2BC-20-45WD G1.1/4"X11 M45X2 35
2BC-24-52WD G1.1/2"X11 M52X2 42
2BD-04-14WD G1/4"X19 M14X1.5 6
2BD-04-16WD G1/4"X19 M16X1.5 8
2BD-06-18WD G3/8"X19 M18X1.5 10
2BD-06-20WD G3/8"X19 M20X1.5 12
2BD-08-22WD G1/2"X14 M22X1.5 14
2BD-08-24WD G1/2"X14 M24X1.5 16
2BD-12-30WD G3/4"X14 M30X2 20
2BD-16-36WD G1"X11 M36X2 25
2BD-20-42WD G1.1/4"X11 M42X2 30
2BD-24-52WD G1.1/2"X11 M52X2 38
