SN 532 flanges is demag sms company standard of SAE J518 Flanges Hydraulic, combination of different SAE flange-type couplings assembly types A.B.C.D.E.F for different flange connection. SAE-flanges with flanged welding neck 3000 psi(SAE code 61 / ISO 6162-1) and 6000 psi(SAE code 62 / ISO 6162-2) connections.
SN 532 flange including two parts:
SN 532 part 1 explain six types of SAE-flanges coupling connection with 3000 psi and 6000 psi.
SN 532 part 2 specific the dimensions of SAE split flange halves, solid flanges, welding collars, blind collars.
SAE Flange type couplings including parts: semiflanges(split flange halves clamp), o-ring, bolts, flanged welding neck with/ without o-ring groove, solid flange(one piece flange clamps).
Six types of SAE Flange Coupling charts as follows:
SAE Flange Coupling type A connection from flanged welding neck to SAE flange port
SAE Flange Coupling type B connection from tube to tube by two flanged welding neck
SAE Flange Coupling type C connection from tube without flanged welding neck d
SAE Flange Coupling type D connection from pipe to blind collar by flanged welding neck
SAE Flange Coupling type E connection with blind collar
SAE Flange Coupling type F connection without flanged welding neck
SAE Flange couplings are supplied with bolts, nuts, o-rings, flange halves, solid flanges, welding collar and blind collars, size chart as follows:

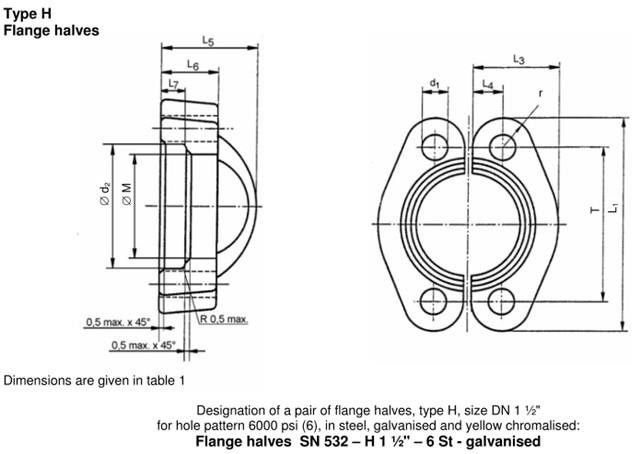

SAE Split Flange Halves Type H
SAE one piece solid flange clamp Type V
SAE Flange head welding collar without o-ring groove Type G
SAE Flange head welding collar with o-ring groove Type N
SAE Flange blind collar Type S
