SAE J513 dimensions reducing adapter union specifications

Jul 03, 2019

SAE J513 dimensions of reducing unions, adapters, reducing elbow union as follows:

3_SAE_J513_dimensions_reducing_union_adapters_elbow_figure3

FIGURE 21 —REDUCING UNION(01 01 01 ) (UR2)

FIGURE 22—INTERNAL FLARE TO EXTERNAL FLARE REDUCING ADAPTOR(1 01 01 05) (RO3)

FIGURE 23—90 DEGREE REDUCING ELBOW UNION(01 0201 ) (ER2)

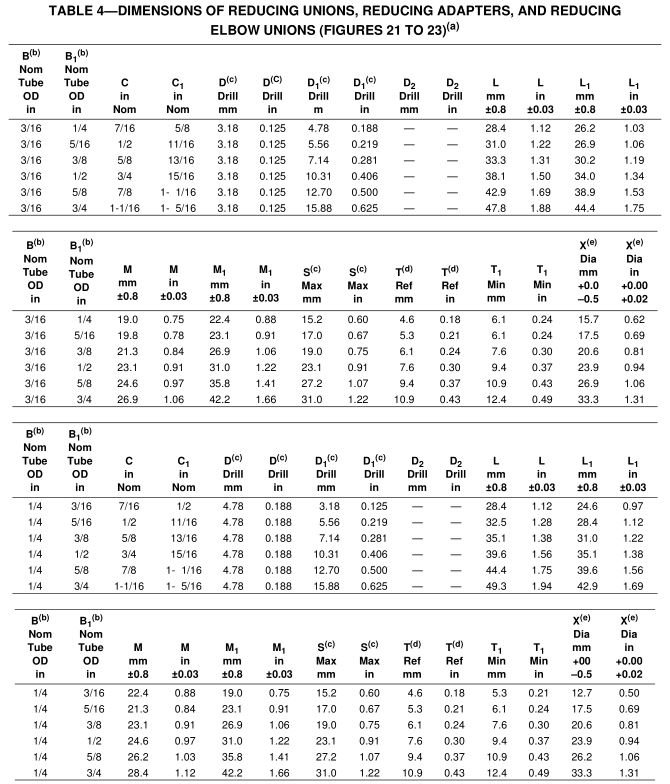

3_SAE_J513_dimensions_reducing_union_adapters_elbow_table_4

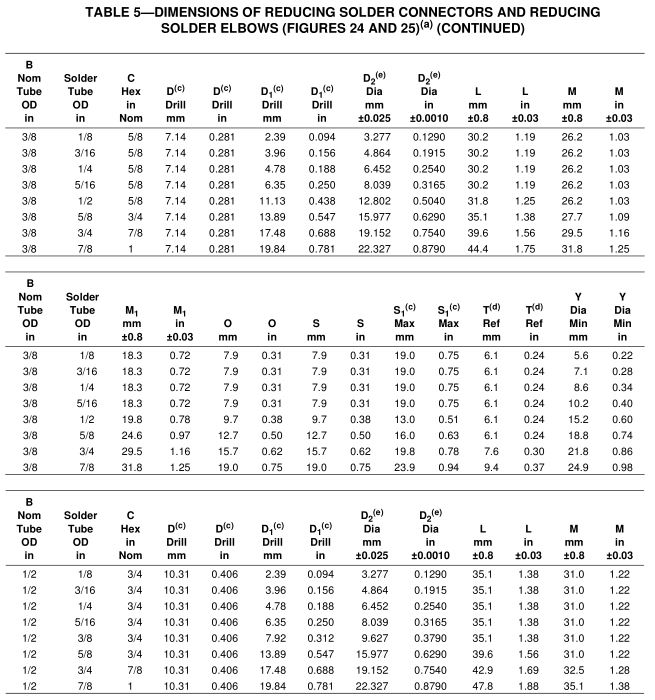

4_SAE_J513_dimensions_solder_reducing_connector_tabel_5_co

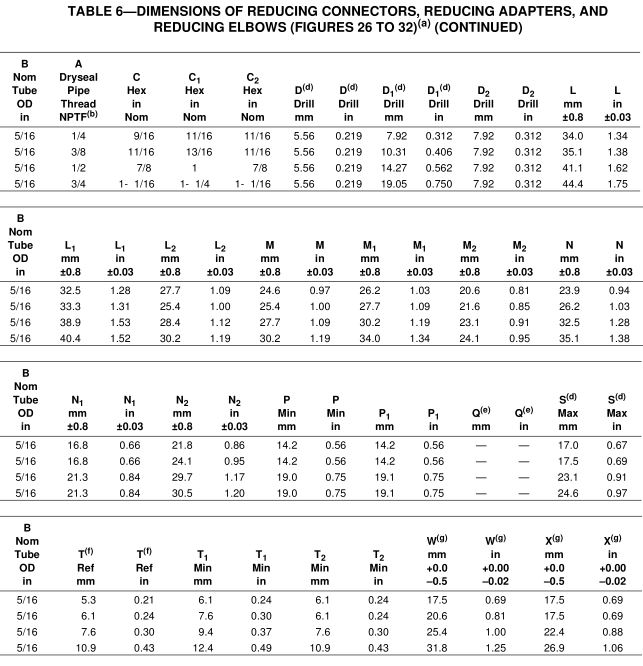

5_SAE_J513_dimensions_NPTF_reducing_connector_table_6_co

3_SAE_J513_dimensions_reducing_union_adapters_elbow_table_4_con
