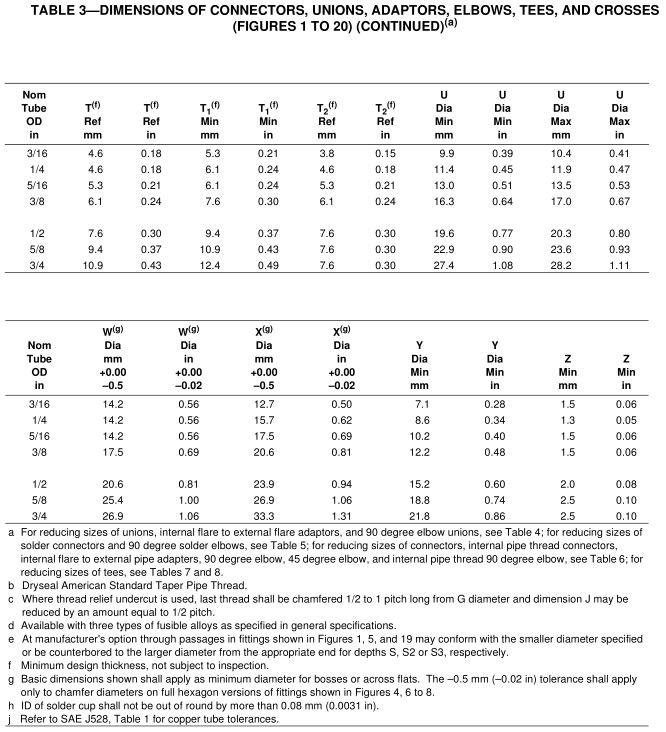

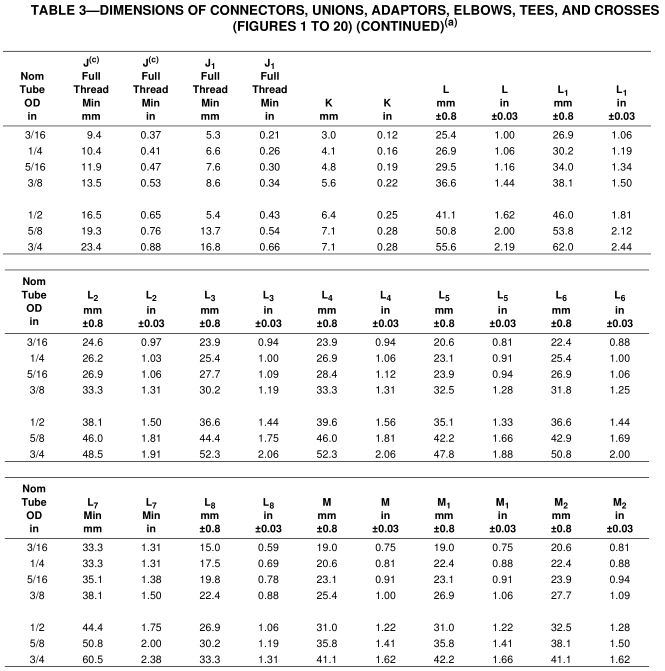

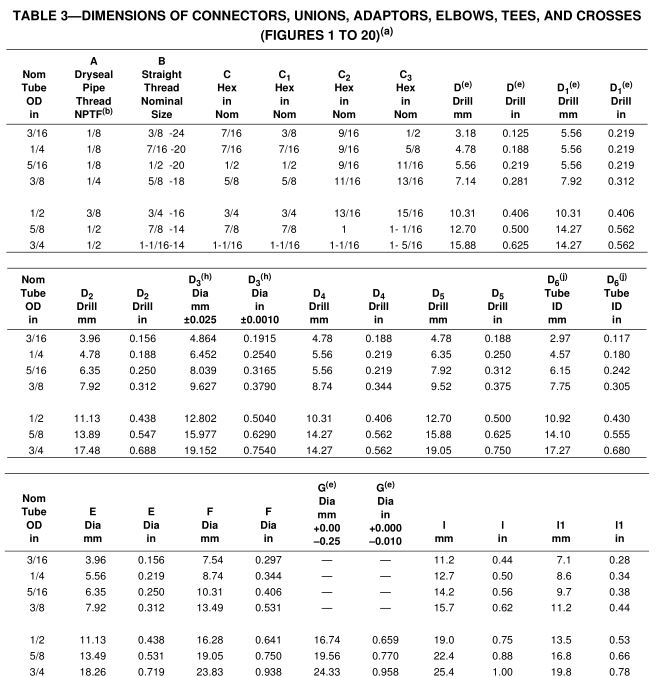

SAE J513 dimensions of connectors, unions, adaptors, elbows, tees and crosses as follows:

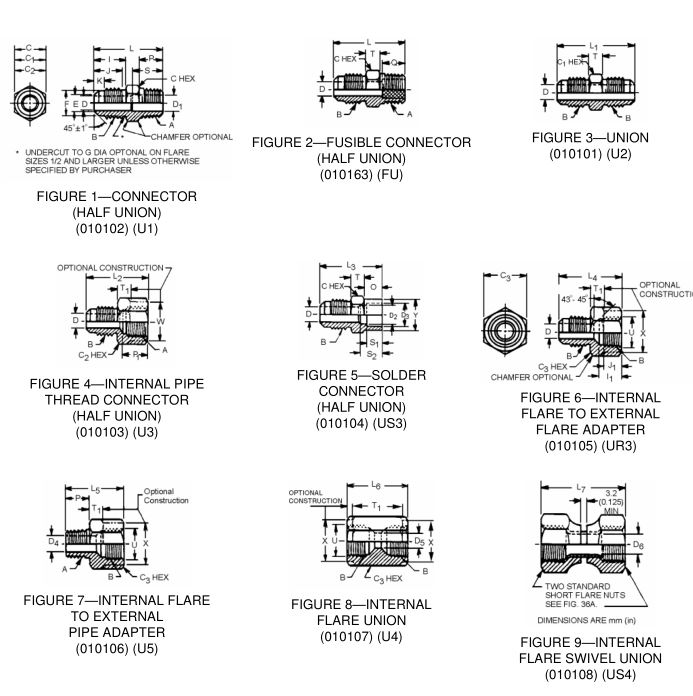

FIGURE 1 —CONNECTOR (HALF UNION)(01 01 02) (U1 )
FIGURE 2—FUSIBLE CONNECTOR (HALF UNION)(01 01 63) (FU)
FIGURE 3—UNION (01 01 01 ) (U2)
FIGURE 4—INTERNAL PIPE THREAD CONNECTOR (HALF UNION) (01 01 03) (U3)
FIGURE 5—SOLDER CONNECTOR (HALF UNION)(01 01 04) (US3)
FIGURE 6—INTERNAL FLARE TO EXTERNAL FLARE ADAPTER(01 01 05) (UR3)
FIGURE 7—INTERNAL FLARE TO EXTERNAL PIPE ADAPTER(01 01 06) (U5)
FIGURE 8—INTERNAL FLARE UNION (01 01 07) (U4)
FIGURE 9—INTERNAL FLARE SWIVEL UNION (01 01 08) (US4)
FIGURE 1 0—PLUG (01 01 09) (P2)
FIGURE 1 1 —90 DEGREE ELBOW (01 0202) (E1 )
FIGURE 1 2—90 DEGREE ELBOW UNION(01 0201 ) (E2)
FIGURE 1 3—45 DEGREE ELBOW (01 0302) (E5)
FIGURE 1 4—90 DEGREE INTERNAL PIPE THREAD ELBOW (01 0203) (E3)
FIGURE 1 5—INTERNAL FLARE TO EXTERNAL FLARE 90 DEGREE ELBOW (01 0205) (E4)

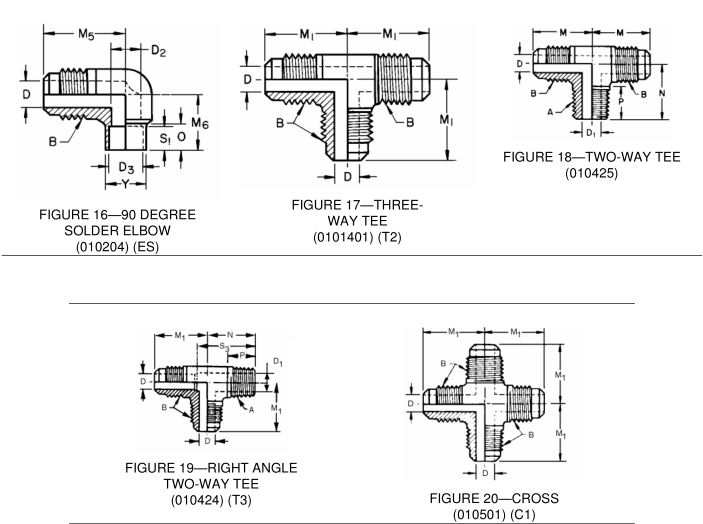

FIGURE 1 6—90 DEGREE SOLDER ELBOW (01 0204) (ES)
FIGURE 1 7—THREE-WAY TEE (01 01 401 ) (T2)
FIGURE 1 8—TWO-WAY TEE (01 0425)
FIGURE 1 9—RIGHT ANGLE TWO-WAY TEE (01 0424) (T3)
FIGURE 20—CROSS (01 0501 ) (C1 )
