SAE J517 100R2 HIGH PRESSURE, STEEL WIRE REINFORCED, RUBBER COVERED HYDRAULIC HOSE has Type AT and Type S hose, specifies impulse test, inspection test and dimensions.

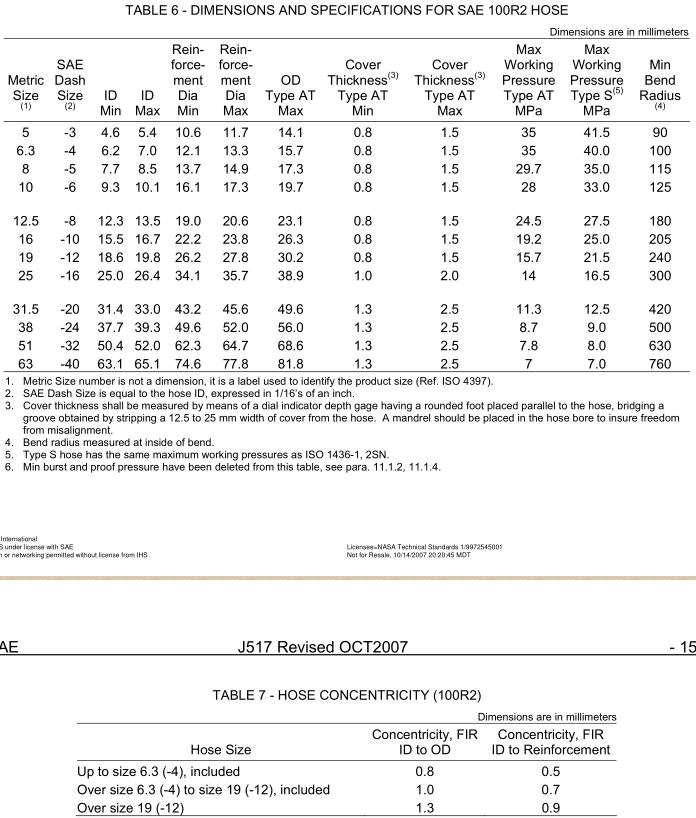

SAE J517 100R2 covers hose for use with petroleum base hydraulic fluids within a temperature range of –40 to +100 °C and with water base hydraulic fluids within the temperature ranges agreed upon by the manufacturers of both the hose and the fluid. Operating temperatures in excess of +100 °C with petroleum base hydraulic fluids may materially reduce the life of the hose. Maximum working pressure and minimum bend radius are specified in Table 6.
