Types of NPT adapters: male or female adapter
Product Standard : ISO 11926-3, SAE J514 and BS 5200
Size of NPT adapters size chart is 1/8 NPT, 1/4 NPT, 3/8 NP, 1/2 NPT, 3/4 NPT, 1" NPT etc.
Material: carbon steel, stainless steel or copper alloy
Shape of NPT fitting adapters: straight, Elbow, Tee, Cross, Reducer etc.
NPT fitting adapters to swivel fitting, metric adapter, bspp adapter, sae adapter etc.

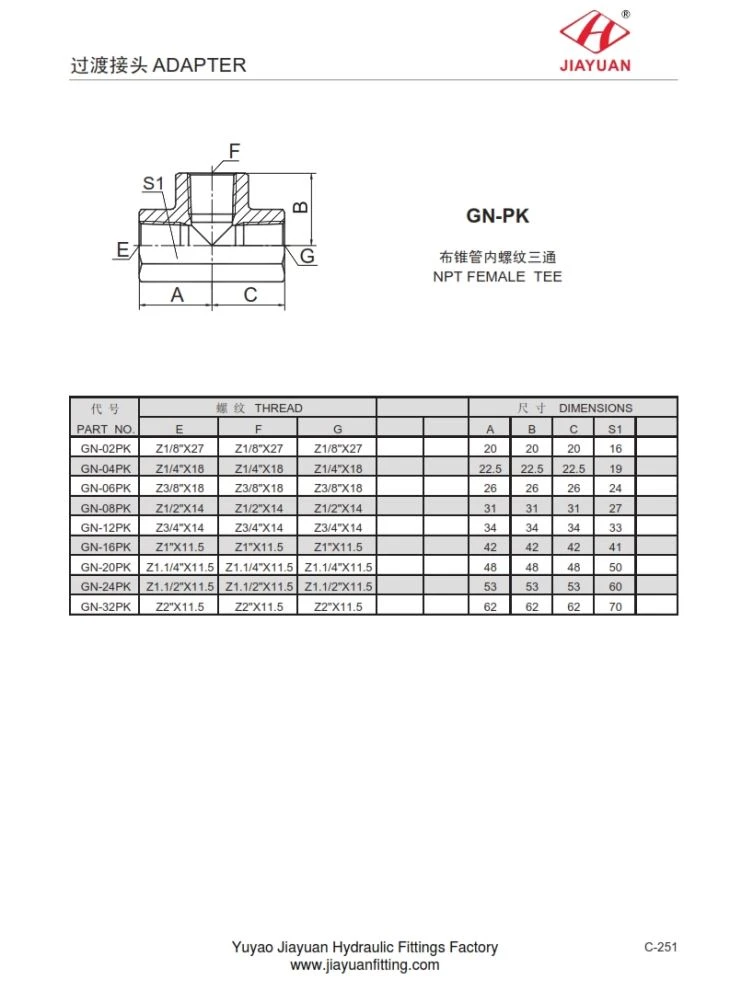

GN-PK NPT FEMALE TEE adapter dimensions as follows:
PART NO. | THREAD | DIMENSIONS | ||||||
E | F | G | A | B | C | S1 | ||
GN-02PK | Z1/8"X27 | Z1/8"X27 | Z1/8"X27 | 20 | 20 | 20 | 16 | |
GN-04PK | Z1/4"X18 | Z1/4"X18 | Z1/4"X18 | 22.5 | 22.5 | 22.5 | 19 | |
GN-06PK | Z3/8"X18 | Z3/8"X18 | Z3/8"X18 | 26 | 26 | 26 | 24 | |
GN-08PK | Z1/2"X14 | Z1/2"X14 | Z1/2"X14 | 31 | 31 | 31 | 27 | |
GN-12PK | Z3/4"X14 | Z3/4"X14 | Z3/4"X14 | 34 | 34 | 34 | 33 | |
GN-16PK | Z1"X11.5 | Z1"X11.5 | Z1"X11.5 | 42 | 42 | 42 | 41 | |
GN-20PK | Z1.1/4"X11.5 | Z1.1/4"X11.5 | Z1.1/4"X11.5 | 48 | 48 | 48 | 50 | |
GN-24PK | Z1.1/2"X11.5 | Z1.1/2"X11.5 | Z1.1/2"X11.5 | 53 | 53 | 53 | 60 | |
GN-32PK | Z2"X11.5 | Z2"X11.5 | Z2"X11.5 | 62 | 62 | 62 | 70 | |
