Product Types: Metric Thread Type Stud Tube Fittings-Tube to BSP stud connector
Industry Standards: DIN 2353, ISO 8434-1,DIN 3861, DIN 3852-2, ISO 1179-1
Connection E to F style: 24°cone end to Bulkhead, swivel with o-ring, weld-on/weld-in, stud, reducer
Shape: Tee etc.
Working pressure: 16-63 Mpa
Fittings Material:Brass; Carbon steel; Stainless Steel
Application:Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation

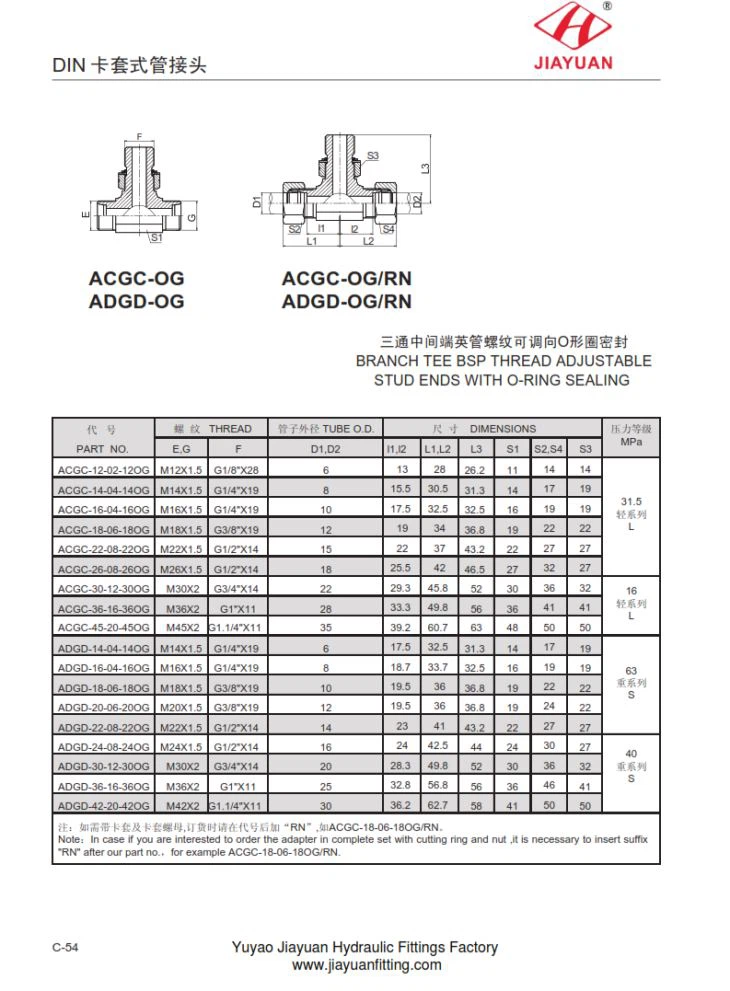

PART NO. THREAD TUBE O.D.
E,G F D1,D2
ACGC-12-02-12OG M12X1.5 G1/8"X28 6
ACGC-14-04-14OG M14X1.5 G1/4"X19 8
ACGC-16-04-16OG M16X1.5 G1/4"X19 10
ACGC-18-06-18OG M18X1.5 G3/8"X19 12
ACGC-22-08-22OG M22X1.5 G1/2"X14 15
ACGC-26-08-26OG M26X1.5 G1/2"X14 18
ACGC-30-12-30OG M30X2 G3/4"X14 22
ACGC-36-16-36OG M36X2 G1"X11 28
ACGC-45-20-45OG M45X2 G1.1/4"X11 35
ADGD-14-04-14OG M14X1.5 G1/4"X19 6
ADGD-16-04-16OG M16X1.5 G1/4"X19 8
ADGD-18-06-18OG M18X1.5 G3/8"X19 10
ADGD-20-06-20OG M20X1.5 G3/8"X19 12
ADGD-22-08-22OG M22X1.5 G1/2"X14 14
ADGD-24-08-24OG M24X1.5 G1/2"X14 16
ADGD-30-12-30OG M30X2 G3/4"X14 20
ADGD-36-16-36OG M36X2 G1"X11 25
ADGD-42-20-42OG M42X2 G1.1/4"X11 30
