1. Definition of BSP Plugs( BSP 5200 and ISO 8434-6) are commonly used in UK and Europe, plug is male BSPP thread stud to connect valves, manifold block, oil drain port etc, it sealing by O-ring port and ED flat face port. BSP Caps is crimped swivel female nut on the plug end with 60°seat to connect 60°cone adapters such as straight fittings, elbow fittings, tee fittings, cross fittings etc.
2. Methods of BSP oil plugs assembly as per types: Male stud end with external Hex and internal Hex port plug for BS5380 O-ring Sealing port, flat face port DIN 3852; Swivel BSPP female 60°seat to Male BSPP male 60°flared end, it is easy to stop or terminate the oil pipe line with one end connector.
 |  |  |  |

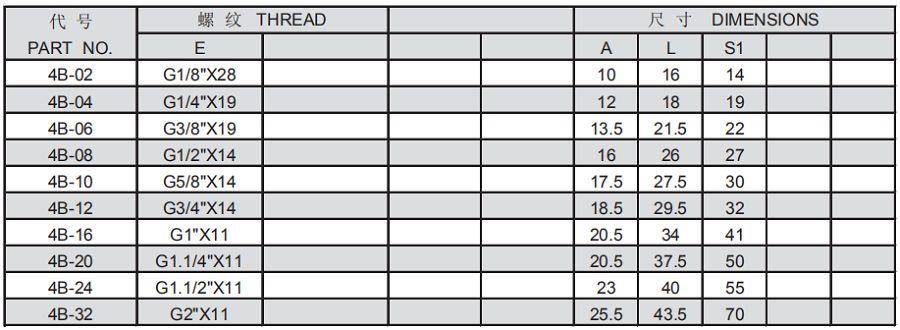

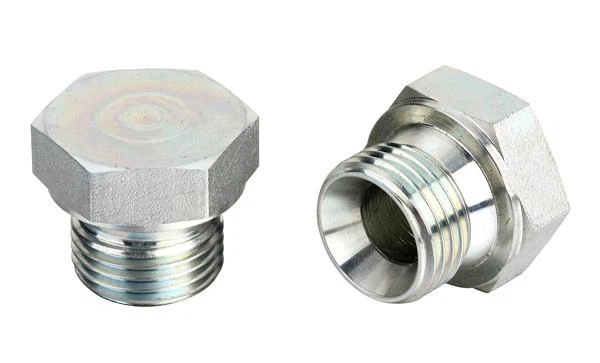

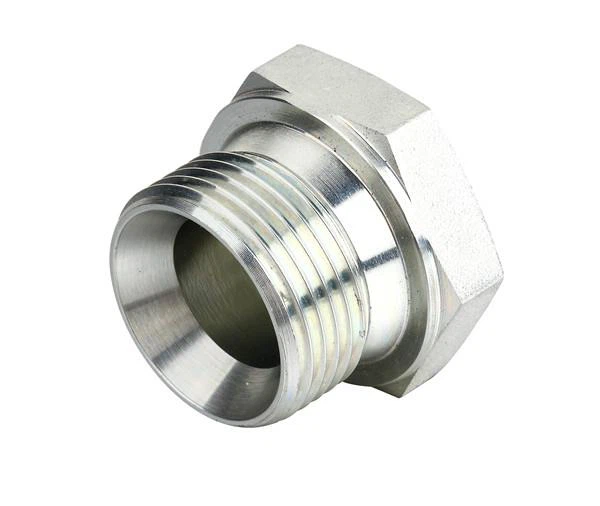

1. BSPP Plug 60 deg Cone 4B

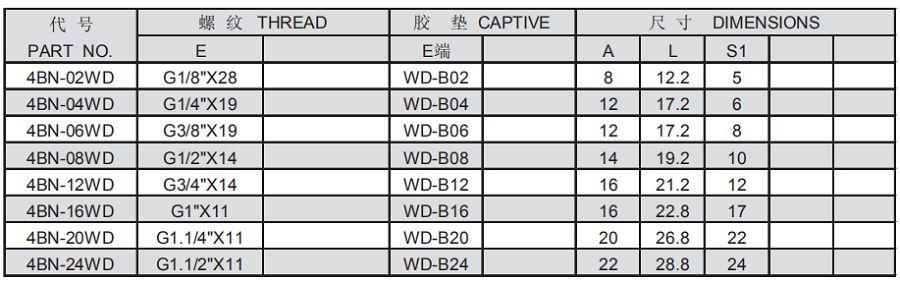

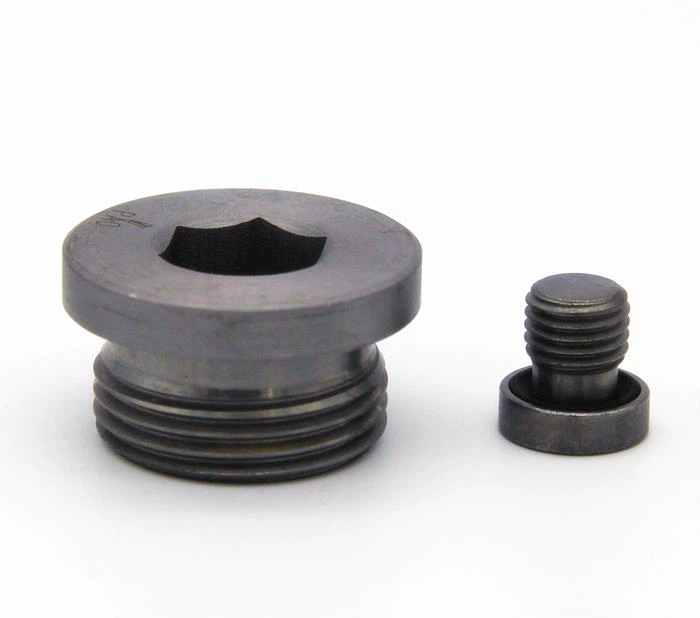

2. BSPP Plug Internal Hex 4BN-WD
3. BSPP Plug Internal Hex 4BN-WD

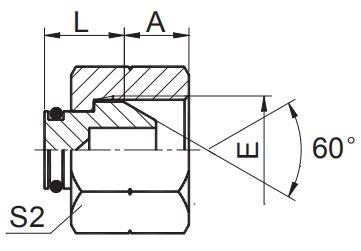

4. BSPP Cap 9B
