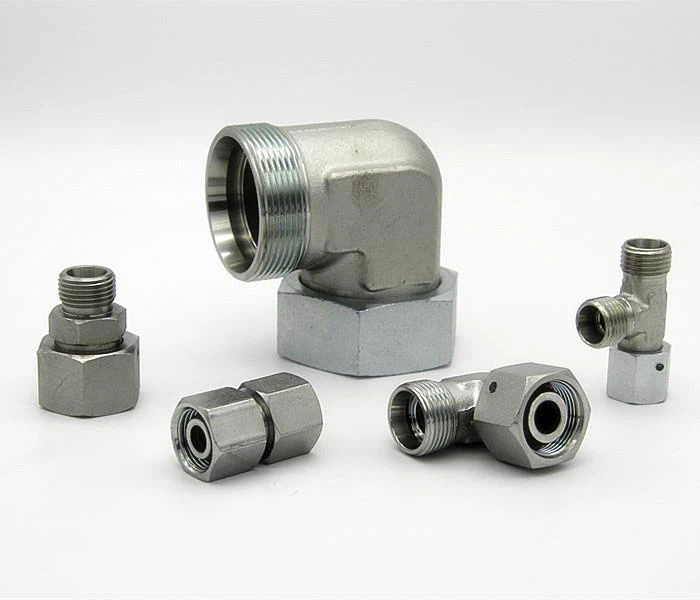

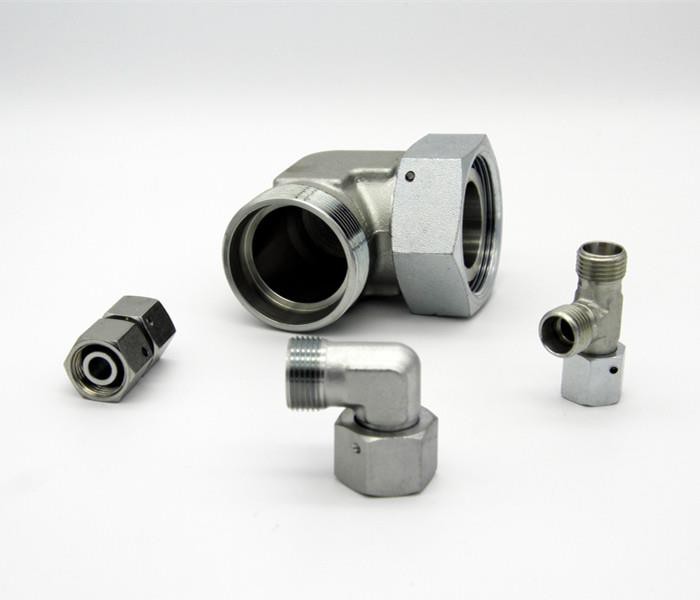

DIN Fittings Swivel

24°DKO swivel connector is according to DIN 3861/DIN EN ISO 8434-4 standard, this end including Fitting body, Nut, O-ring and thrust wire (assembly). There are two types of usage, One is 24°welding cone type nipple (will need nut and o-ring to assembly), another one is Swivel type connector assembled by fittings body, nut, o-ring and thrust wire.

Send Inquiry

Chat Now

Description

1. Definition: 24°DKO swivel connector is according to DIN 3861/DIN EN ISO 8434-4 standard, this end including Fitting body, Nut, O-ring and thrust wire (assembly). There are two types of usage, One is 24°welding cone type nipple (will need nut and o-ring to assembly), another one is Swivel type connector assembled by fittings body, nut, o-ring and thrust wire.

2. Methods of Connection: 24°DKO swivel connector female will mate to male connection DIN 3861/ISO 8434-1.

3. Functions of DKO swivel connector Technology

● Double sealing with o-ring and metallic cone

● Long-lasting seal of this connection for vibration situation

● High cost effective by less maintenance, easy to assembly.

4. Sizes of 24°DKO swivel connector (DIN 3865/ DIN EN ISO 8434-4)

1. DIN Tube Fittings Straight Swivel Adapters

DIN 24°cone/ 24°DKO swivel connector 2C 2C-RN series

PART NO.	THREAD		TUBE O.D.		DIMENSIONS					MPa
PART NO.	E	F	D1	D2	l1	L1	S1	S2	S3	MPa
2C-12-14	M12X1.5	M14X1.5	6	8	23.5	38	12	14	17	31.5L
2C-12-16	M12X1.5	M16X1.5	6	10	25	40	14	14	19
2C-14-16	M14X1.5	M16X1.5	8	10	25	40	14	17	19
2C-12-18	M12X1.5	M18X1.5	6	12	25	40	17	14	22
2C-14-18	M14X1.5	M18X1.5	8	12	25	40	17	17	22
2C-16-18	M16X1.5	M18X1.5	10	12	26	41	17	19	22
2C-12-22	M12X1.5	M22X1.5	6	15	28.5	43	19	14	27
2C-14-22	M14X1.5	M22X1.5	8	15	28.5	43	19	17	27
2C-16-22	M16X1.5	M22X1.5	10	15	29.5	44	19	19	27
2C-18-22	M18X1.5	M22X1.5	12	15	29.5	44	19	22	27
2C-12-26	M12X1.5	M26X1.5	6	18	28	43	24	14	32
2C-22-26	M22X1.5	M26X1.5	15	18	30	45	24	27	32
2C-12-30	M12X1.5	M30X2	6	22	32	47	27	14	36	16L
2C-14-30	M14X1.5	M30X2	8	22	32	47	27	17	36
2C-16-30	M16X1.5	M30X2	10	22	33	48	27	19	36
2C-18-30	M18X1.5	M30X2	12	22	33	48	27	22	36
2C-22-30	M22X1.5	M30X2	15	22	34	49	27	27	36
2C-26-30	M26X1.5	M30X2	18	22	33.5	50	27	32	36
2C-12-36	M12X1.5	M36X2	6	28	34	49	36	14	41
2C-14-36	M14X1.5	M36X2	8	28	34	49	36	17	41
2C-16-36	M16X1.5	M36X2	10	28	35	50	36	19	41
2C-18-36	M18X1.5	M36X2	12	28	35	50	36	22	41
2C-22-36	M22X1.5	M36X2	15	28	36	51	36	27	41
2C-26-36	M26X1.5	M36X2	18	28	35.5	52	36	32	41
2C-30-36	M30X2	M36X2	22	28	37.5	54	36	36	41
2C-12-45	M12X1.5	M45X2	6	35	37	52	41	14	50
2C-14-45	M14X1.5	M45X2	8	35	37	52	41	17	50
2C-16-45	M16X1.5	M45X2	10	35	38	53	41	19	50
2C-18-45	M18X1.5	M45X2	12	35	38	53	41	22	50
2C-22-45	M22X1.5	M45X2	15	35	39	54	41	27	50
2C-26-45	M26X1.5	M45X2	18	35	38.5	55	41	32	50
2C-30-45	M30X2	M45X2	22	35	40.5	57	41	36	50
2C-36-45	M36X2	M45X2	28	35	40.5	57	41	41	50
2C-12-52	M12X1.5	M52X2	6	42	40.5	55	50	14	60
2C-14-52	M14X1.5	M52X2	8	42	40.5	55	50	17	60
2C-16-52	M16X1.5	M52X2	10	42	41.5	56	50	19	60
2C-18-52	M18X1.5	M52X2	12	42	41.5	56	50	22	60
2C-22-52	M22X1.5	M52X2	15	42	42.5	58	50	27	60
2C-26-52	M26X1.5	M52X2	18	42	42	58	50	32	60
2C-30-52	M30X2	M52X2	22	42	44	60	50	36	60
2C-36-52	M36X2	M52X2	28	42	44	61	50	41	60
2C-45-52	M45X2	M52X2	35	42	43	65	50	50	60
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix "RN" after our part no. orf example 2C-30-52RN.

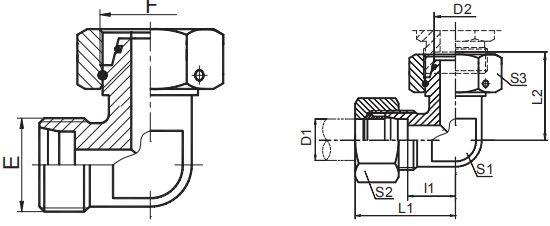

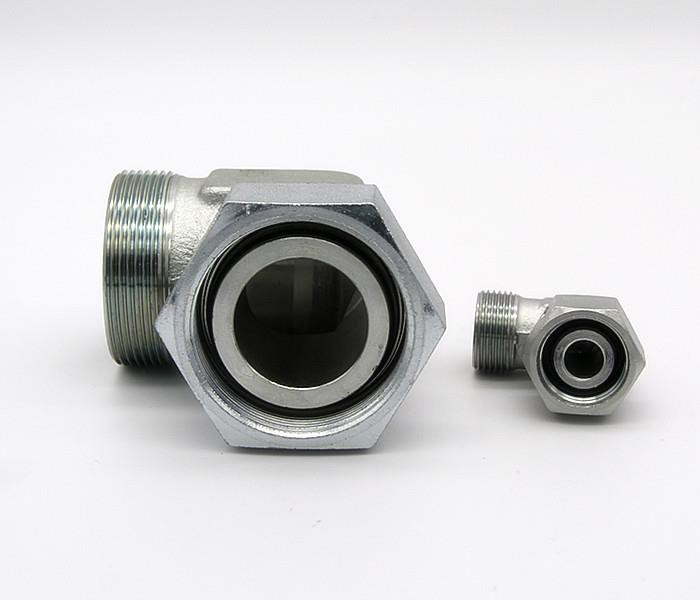

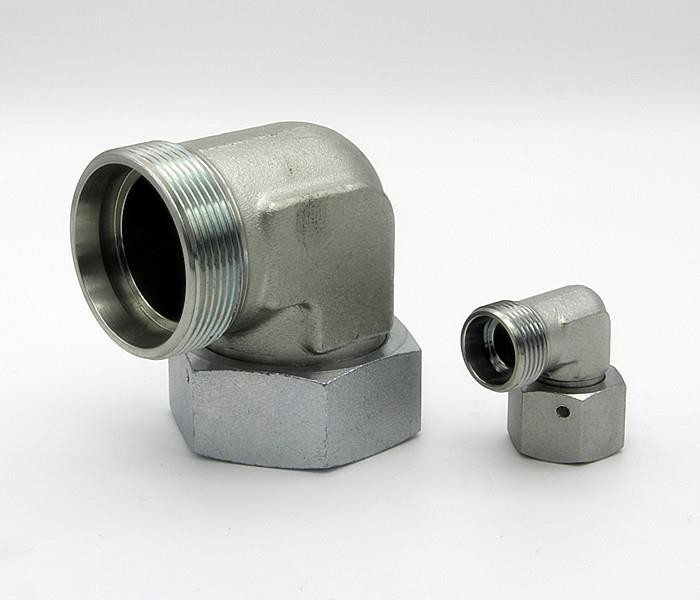

2. DIN Tube Fittings Elbow Swivel Adapters

DIN 24°cone/ 24°DKO swivel connector 2C9 2C9-RN series

PART NO.	THREAD		TUBE O.D.		DIMENSIONS						MPa
PART NO.	E	F	D1	D2	l1	L1	L2	S1	S2	S3	MPa
2C9-12	M12X1.5	M12X1.5	6	6	12	27	26	12	14	14	25L
2C9-14	M14X1.5	M14X1.5	8	8	14	29	27.5	12	17	17
2C9-16	M16X1.5	M16X1.5	10	10	15	30	29	14	19	19
2C9-18	M18X1.5	M18X1.5	12	12	17	32	29.5	17	22	22
2C9-22	M22X1.5	M22X1.5	15	15	21	36	32.5	19	27	27
2C9-26	M26X1.5	M26X1.5	18	18	23.5	40	35.5	24	32	32
2C9-30	M30X2	M30X2	22	22	27.5	44	38.5	27	36	36	16L
2C9-36	M36X2	M36X2	28	28	30.5	47	41.5	36	41	41
2C9-45	M45X2	M45X2	35	35	34.5	56	51	41	50	50
2C9-52	M52X2	M52X2	42	42	40	63	56	50	60	60
2D9-14	M14X1.5	M14X1.5	6	6	16	31	27	12	17	17	63S
2D9-16	M16X1.5	M16X1.5	8	8	17	32	27.5	14	19	19
2D9-18	M18X1.5	M18X1.5	10	10	17.5	34	30	17	22	22
2D9-20	M20X1.5	M20X1.5	12	12	21.5	38	31	17	24	24
2D9-22	M22X1.5	M22X1.5	14	14	22	40	35	19	27	27
2D9-24	M24X1.5	M24X1.5	16	16	24.5	43	36.5	24	30	30	40S
2D9-30	M30X2	M30X2	20	20	26.5	48	44.5	27	36	36
2D9-36	M36X2	M36X2	25	25	30	54	50	36	46	46
2D9-42	M42X2	M42X2	30	30	35.5	62	55	41	50	50
2D9-52	M52X2	M52X2	38	38	41	72	63	50	60	60	31.5S
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix "RN" after our part no. for example 2C9-30RN.

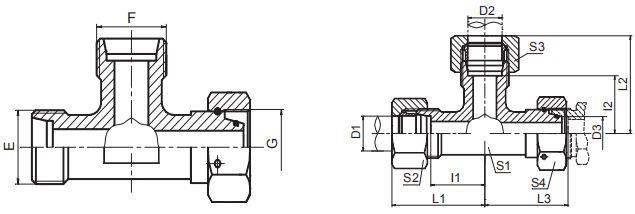

3. DIN Tube Fittings Branch Tee Swivel Adapters

DIN 24°cone/ 24°DKO swivel connector/ DIN 24°cone BC/BD BC/BD-RN series

PART NO.	THREAD		TUBE O.D.		DIMENSIONS						MPa
PART NO.	E,G	F	D1,D3	D2	l1,l3	L1,L3	L2	S1	S2,S4	S3	MPa
BC-12	M12X1.5	M12X1.5	6	6	12	27	26	12	14	14	31.5L
BC-14	M14X1.5	M14X1.5	8	8	14	29	27.5	12	17	17
BC-16	M16X1.5	M16X1.5	10	10	15	30	29	14	19	19
BC-18	M18X1.5	M18X1.5	12	12	17	32	29.5	17	22	22
BC-22	M22X1.5	M22X1.5	15	15	21	36	32.5	19	27	27
BC-26	M26X1.5	M26X1.5	18	18	23.5	40	35.5	24	32	32
BC-30	M30X2	M30X2	22	22	27.5	44	38.5	27	36	36	16L
BC-36	M36X2	M36X2	28	28	30.5	47	41.5	36	41	41
BC-45	M45X2	M45X2	35	35	34.5	56	51	41	50	50
BC-52	M52X2	M52X2	42	42	40	63	56	50	60	60
BD-14	M14X1.5	M14X1.5	6	6	16	31	27	12	17	17	63S
BD-16	M16X1.5	M16X1.5	8	8	17	32	27.5	14	19	19
BD-18	M18X1.5	M18X1.5	10	10	17.5	34	30	17	22	22
BD-20	M20X1.5	M20X1.5	12	12	21.5	38	31	17	24	24
BD-22	M22X1.5	M22X1.5	14	14	22	40	35	19	27	27
BD-24	M24X1.5	M24X1.5	16	16	24.5	43	36.5	24	30	30	40S
BD-30	M30X2	M30X2	20	20	26.5	48	44.5	27	36	36
BD-36	M36X2	M36X2	25	25	30	54	50	36	46	46
BD-42	M42X2	M42X2	30	30	35.5	62	55	41	50	50
BD-52	M52X2	M52X2	38	38	41	72	63	50	60	60	31.5S
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix "RN" after our part no. for example BC-30RN.

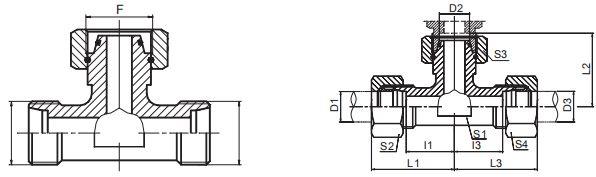

4. DIN Tube Fittings Run Tee Swivel Adapters

DIN 24°cone/ DIN 24°cone/ 24°DKO swivel connector CC/CD CC/CD-RN series

PART NO.	THREAD		TUBE O.D.		DIMENSIONS						MPa
PART NO.	E,F	G	D1,D2	D3	l1,l2	L1,L2	L3	S1	S2,S3	S4	MPa
CC-12	M12X1.5	M12X1.5	6	6	12	27	26	12	14	14	31.5L
CC-14	M14X1.5	M14X1.5	8	8	14	29	27.5	12	17	17
CC-16	M16X1.5	M16X1.5	10	10	15	30	29	14	19	19
CC-18	M18X1.5	M18X1.5	12	12	17	32	29.5	17	22	22
CC-22	M22X1.5	M22X1.5	15	15	21	36	32.5	19	27	27
CC-26	M26X1.5	M26X1.5	18	18	23.5	40	35.5	24	32	32
CC-30	M30X2	M30X2	22	22	27.5	44	38.5	27	36	36	16L
CC-36	M36X2	M36X2	28	28	30.5	47	41.5	36	41	41
CC-45	M45X2	M45X2	35	35	34.5	56	51	41	50	50
CC-52	M52X2	M52X2	42	42	40	63	56	50	60	60
CD-14	M14X1.5	M14X1.5	6	6	16	31	27	12	17	17	63S
CD-16	M16X1.5	M16X1.5	8	8	17	32	27.5	14	19	19
CD-18	M18X1.5	M18X1.5	10	10	17.5	34	30	17	22	22
CD-20	M20X1.5	M20X1.5	12	12	21.5	38	31	17	24	24
CD-22	M22X1.5	M22X1.5	14	14	22	40	35	19	27	27
CD-24	M24X1.5	M24X1.5	16	16	24.5	43	36.5	24	30	30	40S
CD-30	M30X2	M30X2	20	20	26.5	48	44.5	27	36	36
CD-36	M36X2	M36X2	25	25	30	54	50	36	46	46
CD-42	M42X2	M42X2	30	30	35.5	62	55	41	50	50
CD-52	M52X2	M52X2	38	38	41	72	63	50	60	60	31.5S
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix "RN" after our part no. for example CC-30RN.

5. DIN Tube Fittings Straight Swivel Union Adapters

DIN 24° DKO Swivel/ DIN 24° DKO Swivel 3C/3D Series

PART NO.	THREAD	TUBE O.D.	DIMENSIONS			MPa
PART NO.	E,F	D1,D2	L1	L2	S1,S2	MPa
3C-12	M12X1.5	6	33	32	14	31.5L
3C-14	M14X1.5	8	33	32	17
3C-16	M16X1.5	10	34	33	19
3C-18	M18X1.5	12	34	33	22
3C-22	M22X1.5	15	39	38	27
3C-26	M26X1.5	18	41	39	32
3C-30	M30X2	22	44	42	36	16L
3C-36	M36X2	28	48	46	46
3C-45	M45X2	35	52	48	50
3C-52	M52X2	42	57	52	60
3D-14	M14X1.5	6	33	32	17	63S
3D-16	M16X1.5	8	34	33	19
3D-18	M18X1.5	10	35	33	22
3D-20	M20X1.5	12	38	36	24
3D-22	M22X1.5	14	41	39	27
3D-24	M24X1.5	16	42	39	30	40S
3D-30	M30X2	20	48	44	36
3D-36	M36X2	25	53	46	46
3D-42	M42X2	30	62	52	50
3D-52	M52X2	38	67	52	60	31.5S

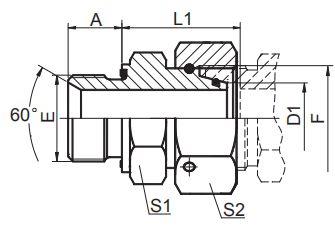

6. DIN Tube Fittings Straight Swivel BSP ED Adapters

Male BSPP Stub ISO 1179-2 ED seal/ DIN 24° DKO Swivel 2BC/2DC-WD Series

PART NO.	THREAD		TUBE O.D.	DIMENSIONS				MPa
PART NO.	E	F	D1	A	L1	S1	S2	MPa
2BC-02-12WD	G1/8"X28	M12X1.5	6	8	24.5	14	14	31.5L
2BC-04-14WD	G1/4"X19	M14X1.5	8	12	29.5	19	17
2BC-04-16WD	G1/4"X19	M16X1.5	10	12	27.5	19	19
2BC-06-18WD	G3/8"X19	M18X1.5	12	12	34	22	22
2BC-08-22WD	G1/2"X14	M22X1.5	15	14	32	27	27
2BC-08-26WD	G1/2"X14	M26X1.5	18	14	31.5	27	32
2BC-12-30WD	G3/4"X14	M30X2	22	16	32.5	32	36	16L
2BC-16-36WD	G1"X11	M36X2	28	18	35	41	41
2BC-20-45WD	G1.1/4"X11	M45X2	35	20	42.5	50	50
2BC-24-52WD	G1.1/2"X11	M52X2	42	22	46.5	55	60
2BD-04-14WD	G1/4"X19	M14X1.5	6	12	27	19	17	63S
2BD-04-16WD	G1/4"X19	M16X1.5	8	12	29.5	19	19
2BD-06-18WD	G3/8"X19	M18X1.5	10	12	32	22	22
2BD-06-20WD	G3/8"X19	M20X1.5	12	12	34	22	24
2BD-08-22WD	G1/2"X14	M22X1.5	14	14	36.5	27	27
2BD-08-24WD	G1/2"X14	M24X1.5	16	14	37	27	30	40S
2BD-12-30WD	G3/4"X14	M30X2	20	16	43	32	36
2BD-16-36WD	G1"X11	M36X2	25	18	48	41	46
2BD-20-42WD	G1.1/4"X11	M42X2	30	20	51	50	50
2BD-24-52WD	G1.1/2"X11	M52X2	38	22	60	55	60	31.5S

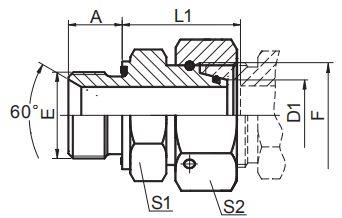

7. DIN Tube Fittings Straight Swivel Metric ED Adapters

Male Metric Stub ISO 9974-2 ED seal/ DIN 24° DKO Swivel 2MC/2MD-WD Series

PART NO.	THREAD		TUBE O.D.	DIMENSIONS				MPa
PART NO.	E	F	D1	A	L1	S1	S2	MPa
2MC-10-12WD	M10X1	M12X1.5	6	8	24.5	14	14	31.5L
2MC-12-14WD	M12X1.5	M14X1.5	8	12	26.5	17	17
2MC-14-16WD	M14X1.5	M16X1.5	10	12	27.5	19	19
2MC-16-18WD	M16X1.5	M18X1.5	12	12	30.5	22	22
2MC-18-22WD	M18X1.5	M22X1.5	15	12	31.5	24	27
2MC-22-26WD	M22X1.5	M26X1.5	18	14	31.5	27	32
2MC-26-30WD	M26X1.5	M30X2	22	16	32.5	32	36	16L
2MC-33-36WD	M33X2	M36X2	28	18	35	41	41
2MC-42-45WD	M42X2	M45X2	35	20	42.5	50	50
2MC-48-52WD	M48X2	M52X2	42	22	46.5	55	60
2MD-12-14WD	M12X1.5	M14X1.5	6	12	27	17	17	63S
2MD-14-16WD	M14X1.5	M16X1.5	8	12	29.5	19	19
2MD-16-18WD	M16X1.5	M18X1.5	10	12	32	22	22
2MD-18-20WD	M18X1.5	M20X1.5	12	12	34	24	24
2MD-20-22WD	M20X1.5	M22X1.5	14	14	36.5	27	27
2MD-22-24WD	M22X1.5	M24X1.5	16	14	37	27	30	40S
2MD-27-30WD	M27X2	M30X2	20	16	43	32	36
2MD-33-36WD	M33X2	M36X2	25	18	48	41	46
2MD-42-42WD	M42X2	M42X2	30	20	51	50	50
2MD-48-52WD	M48X2	M52X2	38	22	60	55	60	31.5S

8. DIN Tube Fittings Straight Swivel Weld Adapters

Weld end/ DIN 24° DKO Swivel 2WC/ 2WD Series

PART NO.	THREAD	TUBE SIZE	DIMENSIONS				MPa
PART NO.	F	D1xt	L	D0	D2	S2	MPa
2WC-6X1.5	M12X1.5	6X1.5	30	2.5	6	14	25L
2WC-8X2.0	M14X1.5	8X2.0	30	4	8	17
2WC-10X2.0	M16X1.5	10X2.0	31	6	10	19
2WC-12X2.0	M18X1.5	12X2.0	31	7.5	12	22
2WC-15X2.0	M22X1.5	15X2.0	35	10	15	27
2WC-18X2.0	M26X1.5	18X2.0	35	13	18	32
2WC-22X2.0	M30X2	22X2.0	35	17	22	36	16L
2WC-28X2.5	M36X2	28X2.5	41	23	28	41
2WC-35X3.0	M45X2	35X3.0	48	29	35	50
2WC-42X3.0	M52X2	42X3.0	50.5	36	42	60
2WD-6X1.5	M14X1.5	6X1.5	28.5	2.5	6	17	63S
2WD-8X2.0	M16X1.5	8X2.0	29	4	8	19
2WD-10X1.0	M18X1.5	10X1.0	32	6.5	10	22
2WD-10X1.5	M18X1.5	10X1.5	32	6.5	10	22
2WD-10X2.0	M18X1.5	10X2.0	32	6	10	22
2WD-12X1.5	M20X1.5	12X1.5	32.5	8	12	27
2WD-12X2.0	M20X1.5	12X2.0	32.5	8	12	27
2WD-12X2.5	M20X1.5	12X2.5	32.5	7	12	27
2WD-16X1.5	M24X1.5	16X1.5	39	13	16	30	40S
2WD-16X2.0	M24X1.5	16X2.0	39	12	16	30
2WD-16X2.5	M24X1.5	16X2.5	39	11	16	30
2WD-16X3.0	M24X1.5	16X3.0	39	10	16	30
2WD-20X2.0	M30X2	20X2.0	43	15	20	36
2WD-20X2.5	M30X2	20X2.5	43	15	20	36
2WD-20X3.0	M30X2	20X3.0	43	14	20	36
2WD-20X4.0	M30X2	20X4.0	43	12	20	36
2WD-25X2.5	M36X2	25X2.5	50	20	25	46
2WD-25X3.0	M36X2	25X3.0	50	19	25	46
2WD-25X4.0	M36X2	25X4.0	50	17	25	46
2WD-25X5.0	M36X2	25X5.0	50	15	25	46
2WD-30X3.0	M42X2	30X3.0	52	24	30	50	25S
2WD-30X4.0	M42X2	30X4.0	52	22	30	50
2WD-30X5.0	M42X2	30X5.0	52	20	30	50
2WD-30X6.0	M42X2	30X6.0	52	18	30	50
2WD-38X4.0	M52X2	38X4.0	56.5	30	38	60
2WD-38X5.0	M52X2	38X5.0	56.5	28	38	60
2WD-38X6.0	M52X2	38X6.0	56.5	26	38	60
2WD-38X7.0	M52X2	38X7.0	56.5	24	38	60
