Product Types: 6NF o ring face seal tube fittings
Industry Standards: SAE J1453, ISO 8434-3, SAE J514, ISO 8434-2
Connection E to F style: NPT MALE/ORFS MALE BULKHEAD
Shape: Elbow, straight, Tee, Cross etc.
ORFS Fittings Working pressure rating: 3215 psi to 5800 psi, 216 bar to 400 bar.
Flat face Orfs o ring sizes kit and O ring face seal design we also can offer.
Difference between o ring face seal and o ring boss seal
Fittings Material: Brass; Carbon steel; Stainless Steel
Application: Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation

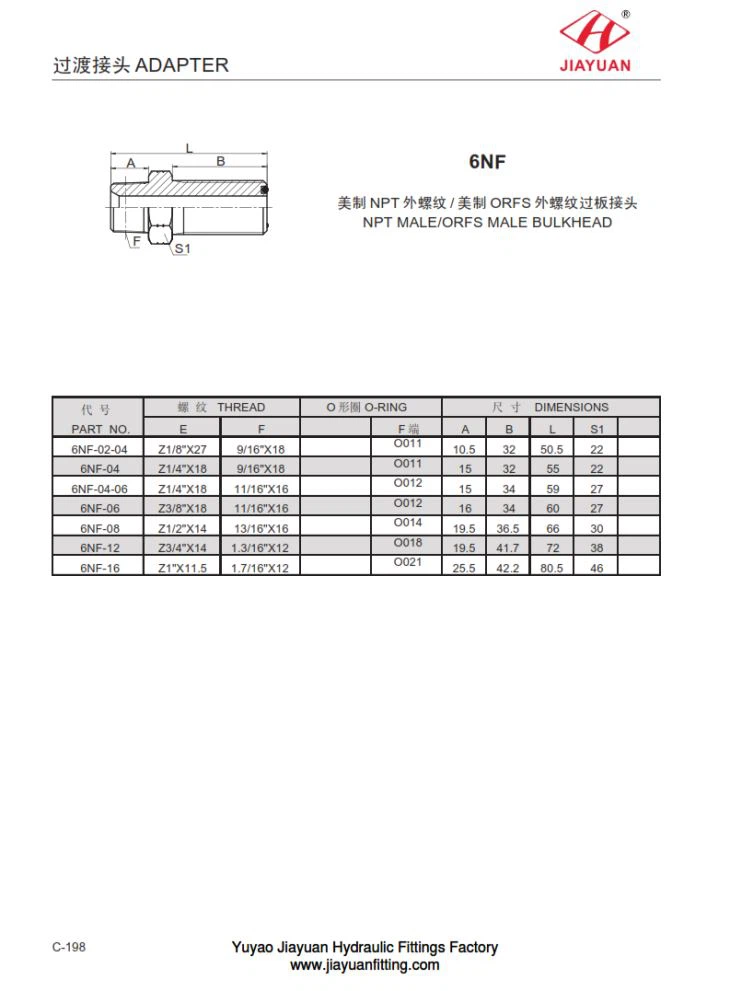

6NF NPT MALE/ORFS MALE BULKHEAD Dimension Size table chart as follows:
PART NO. | THREAD | O O-RING | DIMENSIONS | |||||||
E | F | F | A | B | L | S1 | ||||
6NF-02-04 | Z1/8"X27 | 9/16"X18 | O011 | 10.5 | 32 | 50.5 | 22 | |||
6NF-04 | Z1/4"X18 | 9/16"X18 | O011 | 15 | 32 | 55 | 22 | |||
6NF-04-06 | Z1/4"X18 | 11/16"X16 | O012 | 15 | 34 | 59 | 27 | |||
6NF-06 | Z3/8"X18 | 11/16"X16 | O012 | 16 | 34 | 60 | 27 | |||
6NF-08 | Z1/2"X14 | 13/16"X16 | O014 | 19.5 | 36.5 | 66 | 30 | |||
6NF-12 | Z3/4"X14 | 1.3/16"X12 | O018 | 19.5 | 41.7 | 72 | 38 | |||
6NF-16 | Z1"X11.5 | 1.7/16"X12 | O021 | 25.5 | 42.2 | 80.5 | 46 | |||
