Metric taper adapter meaning
Metric taper thread adapter is designed by DIN 158-1 and ISO 68-1 standard, it use the basic metal to metal sealing design for achieving a seal by taper thread. Male metric taper thread adapters will match with female Metric port fittings, most popular in Germany. Today, the tapered internal thread is still in use according to the old standard DIN 158. The thread is used on sealing screws, screw-in connectors and lubrication nipples.
Metric taper thread
Tapered external thread for pipe fittings with sealing compound. According to DIN 158-1, only the external thread is conical, the internal thread is cylindrical. According to the old standard DIN 158, internal and external thread are tapered.The flank angle is 60°.
M6-keg
Metric port fittings in central lubrication system
Metric taper thread adapters choose M6-keg, M8-keg and M10-keg, tube end designed according to DIN 2353 or ISO 8434-1 standards of 24 degree cone tube fittings, M8, M10 and M12 of cutting ring fittings, to connect lubrication system lines.
Famous brand of metric taper adapters in market

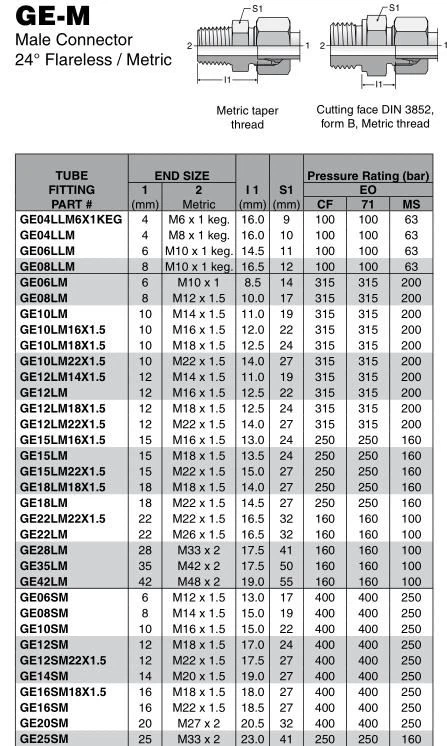

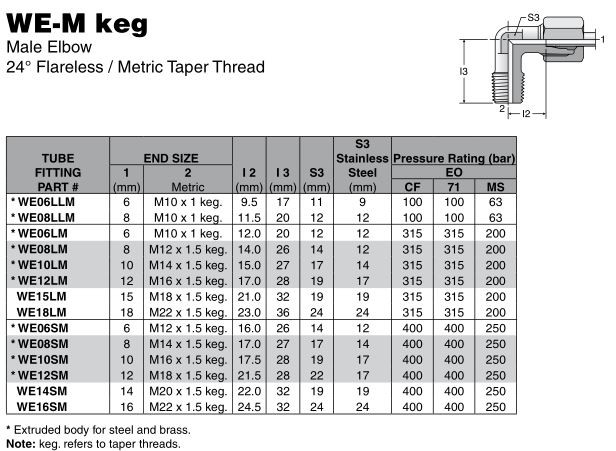

Parker fittings catalog
Adaptall catalog
Send us feedback if metric orb fittings size isn’t working for you.
Was this helpful for you? contact us jyray@72338.com for more info.
