See metric orb fittings meaning
Metric orb fittings is designed by ISO 6149 standard of pipe fittings, port adapters and plugs. The male fitting has a straight thread and O-ring. The female port has a straight thread, a machined surface (minimum spotface) and a chamfer to accept the O-ring.
Find Metric hydraulic fittings ORB adapter types with different chart

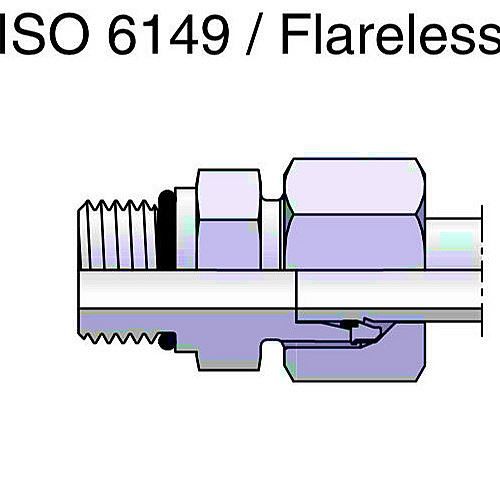

DIN 24 degree cone to Metric ORB adapter
Metric flare fittings to Metric ORB adapter

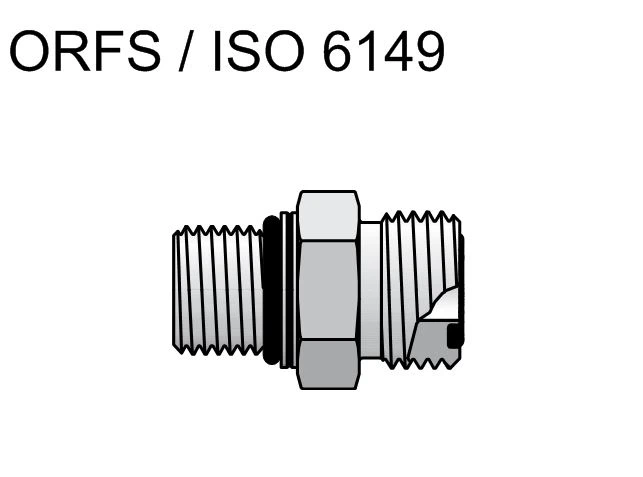

Sae 3 ORFS fittings to Metric ORB adapter

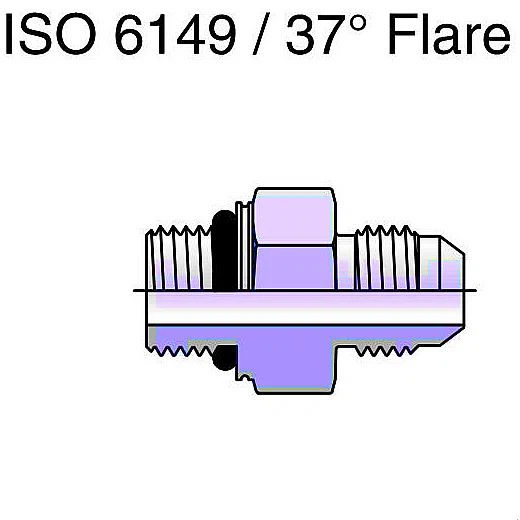

Jic fittings catalog to Metric ORB adapter
BSPP 60 degree cone to metric orb adapter
What material of metric orb adapter in Hydraulic line fittings?
Carbon Steel type Q235, Q345, C20, C35, C45.
Stainless Steel type AISI 304, AISI 316 and AISI 316L.
Alloy Steeel
Alumium alloy.
